To avoid risk of electrical shock, personal injury or
death; disconnect power to unit before servicing.
Disassembly Procedures
WARNING
!

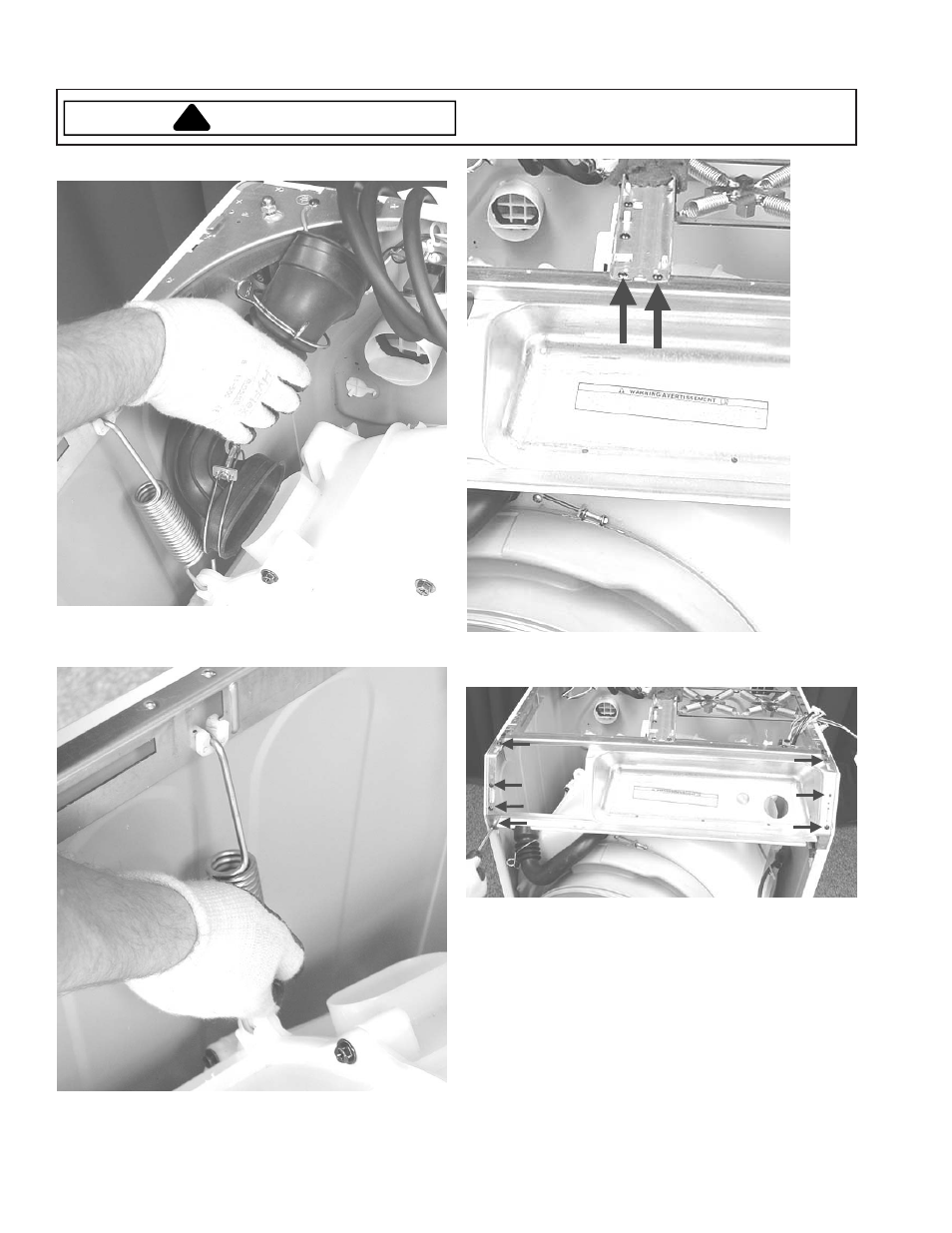

18. Remove left and right Vent Hoses.
19. Lift Suspension Spring from keeper in cabinet.
Repeat for the opposite side and let Outer Tub rest
on support board.
20. Remove two screws securing Center Brace to Back
Guard.
21. Remove remaining screws securing Back Guard to
cabinet.
22. Grasp the front and rear of the tub and slide out. Use
a blanket or rug to protect the floor
