Warning, Disassembly procedures – Maytag MAH9700AW* User Manual
Page 33
©2005 Maytag Services
16025909 Rev. 0
33
To avoid risk of electrical shock, personal injury or
death; disconnect power to unit before servicing.
Disassembly Procedures
WARNING
!
Motor Removal
1. Disconnect power supply to unit.

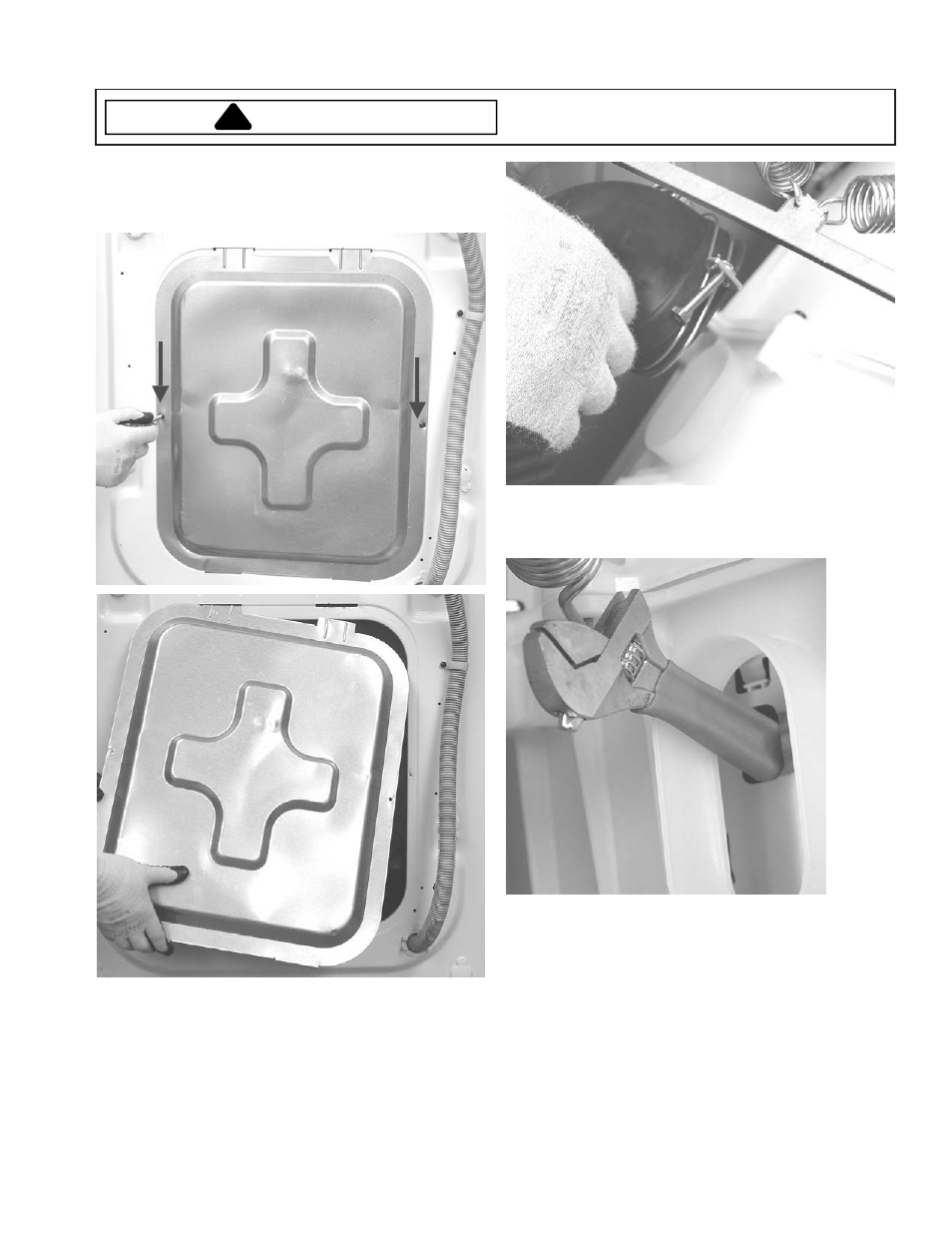

2. Remove two screws attaching Back Cover and slide
cover up and lift bottom edge out of retaining slots.
3. Remove either vent tube from the outer Tub.
4. Rotate the Spinner to locate a slot. Insert a rubber
handled tool or equivelent object to lock the Spinner
while removing the Motor nut.
