Warning, Disassembly procedures – Maytag MAH9700AW* User Manual
Page 26
26
16025909 Rev. 0
©2005 Maytag Services
To avoid risk of electrical shock, personal injury or
death; disconnect power to unit before servicing.
Disassembly Procedures
WARNING
!

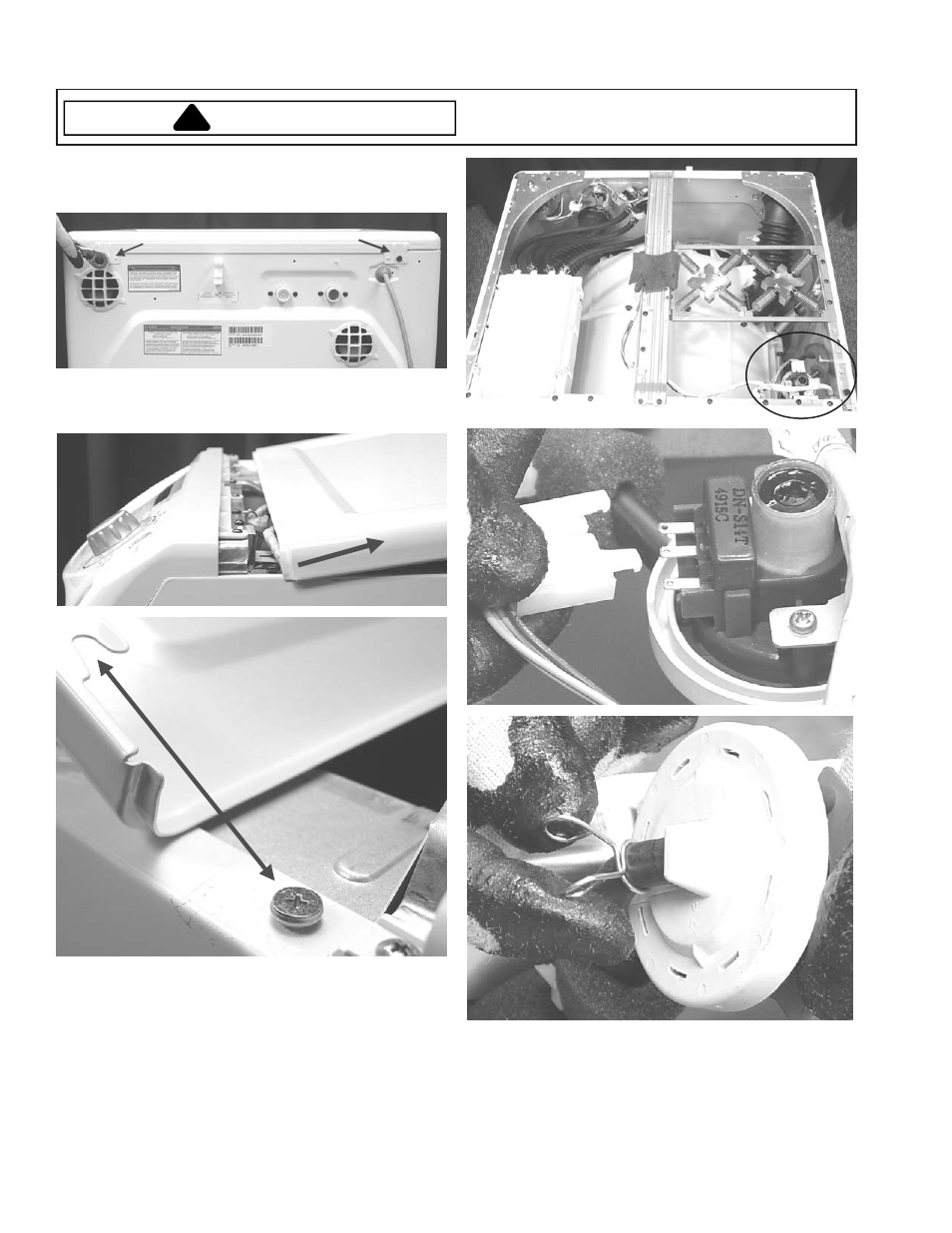

Top Removal
1. Disconnect power supply to unit.
2. Remove 2 10mm screws from washer back.
3. Slide Top Cover towards the rear to clear the screw
head from flange on the bottom side of the Top
Cover.
Water Level Sensor Removal
1. Disconnect power supply to unit.
2. Remove Top Cover.
3. Remove harness plug.
4. Remove Pressure Hose.
5. Remove single attachment screw.
