Page 32

16025909 Rev. 0

To avoid risk of electrical shock, personal injury or
death; disconnect power to unit before servicing.

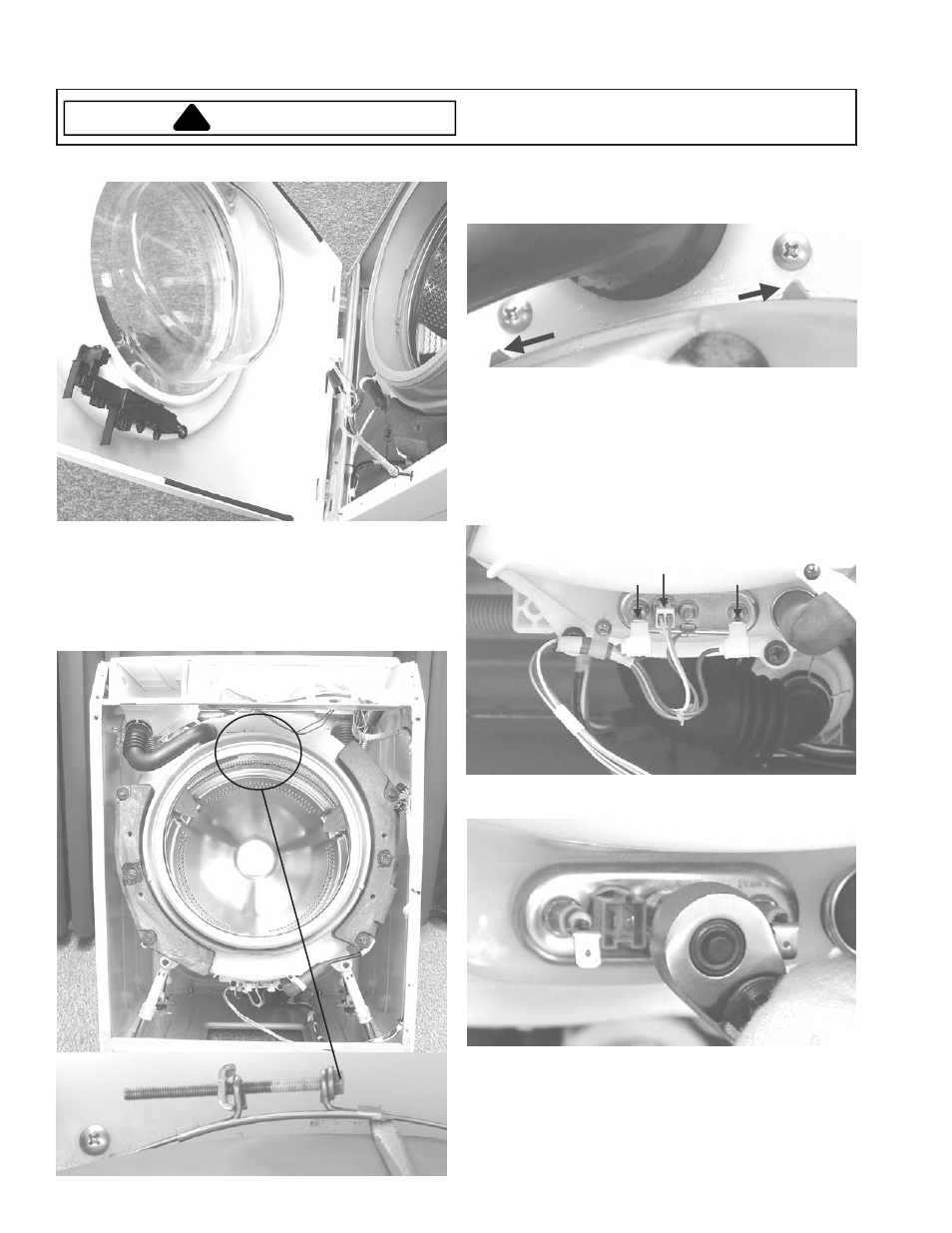

Disassembly Procedures

WARNING

8. Lift Front Panel from bottom brackets.

Boot Removal

1. Disconnect power supply to unit.
2. Remove Top Cover.
3. Remove Console.
4. Remove Front Panel.
5. Loosen boot clamp at the 12 o’clock position.

NOTE: When installing the boot align the index tabs on

the boot with the screws on either side of the Fill
Tube.

Heater Removal

1. Disconnect power supply to unit.
2. Remove Top Cover.
3. Remove Console.
4. Remove Front Panel.
5. Remove Thermistor and Heater wiring connectors.

6. Loosen 10mm nut on Heater and remove Heater

Element.

NOTE: Install Heater Element on top of metal bracket.
