28 16025909 Rev. 0 ©2005 Maytag Services
To avoid risk of electrical shock, personal injury or
death; disconnect power to unit before servicing.
Disassembly Procedures
WARNING
!

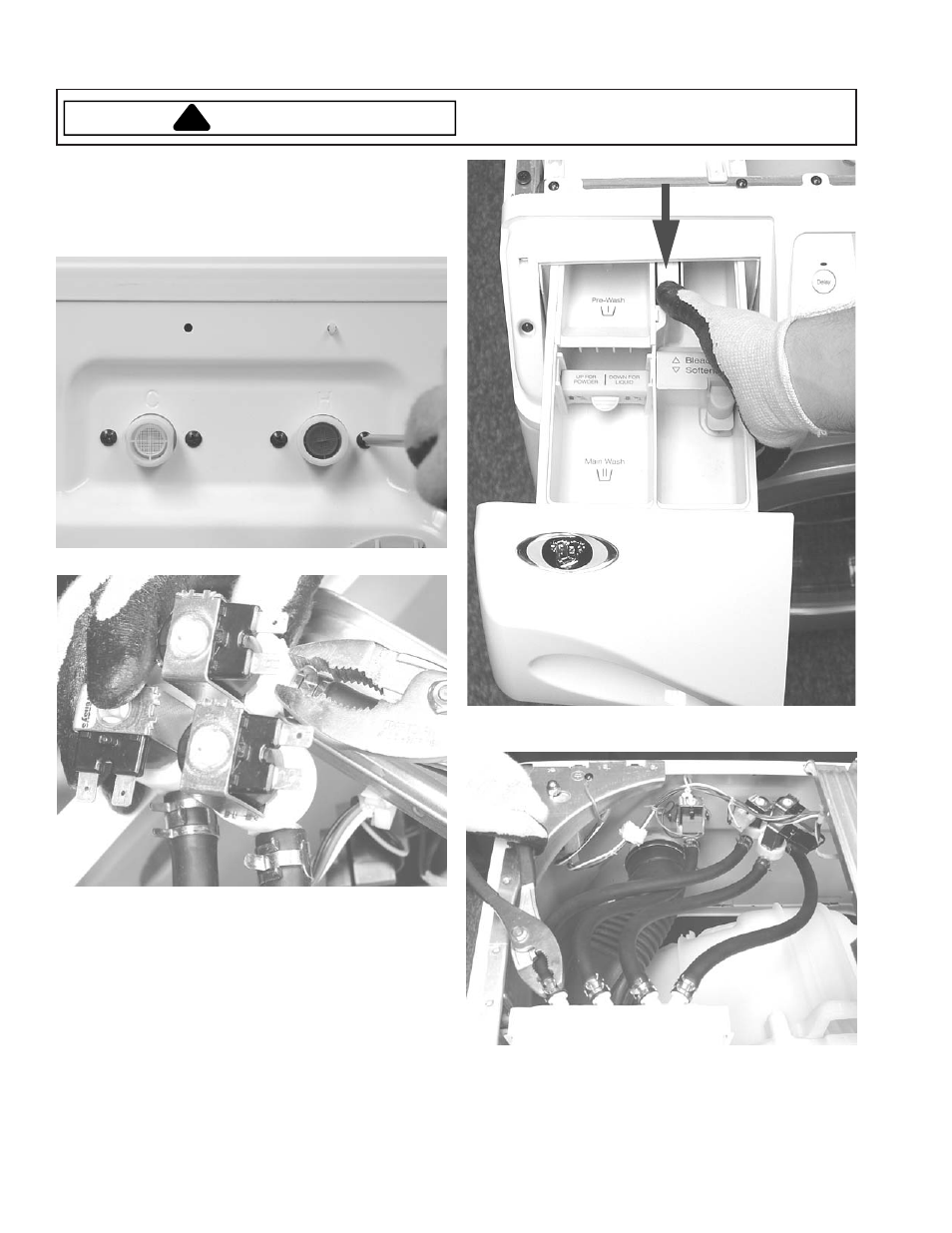

Water Valve Removal
1. Disconnect power supply to unit.
2. Remove Top Cover.
3. Remove two screws each hot and 3 valve combo cold
valve.
4. Remove hose clamps and hoses.
NOTE: The hose circuitry is marked on the Dispenser
top.
Dispenser Removal
1. Disconnect power supply to unit.
2. Depress the release tab and slide drawer from
washer.
Combo Cold Valve Hot Valve
3. Remove Top Cover.
4. Remove clamps and hoses from dispenser.
NOTE: The hose circuitry is marked on the Dispenser
top.
5. Remove attachment screws and lift dipenser to
expose fill hose.
Pre
Wash
Main
Hot
Bleach
Main
Cold
