10 Mbps connection
For 10BASE-T Ethernet networks, the Fast Ethernet adapter uses Category 3, 4, or 5
UTP/FTP cable. To establish a 10 Mbps connection, the cable must be connected to
a 10BASE-T hub. Ensure the cable is wired appropriately for a standard 10BASE-T
adapter. Align the RJ-45 plug with the notch on the adapter's connector and insert it
into the adapter's connector.
100 Mbps connection
For 100BASE-TX Fast Ethernet networks, the DX User IP supports Category 5 UTP
cabling. To establish a 100 Mbps connection, the cable must be connected to a
100BASE-TX hub.
1. Make sure that the cable is wired appropriately for a standard 100BASE-TX
adapter.
2. Align the RJ-45 plug with the notch on the adapter's connector and insert it into
the adapter's connector.
Note! The UTP/FTP wire pairs and configuration for 100BASE-TX cable are
identical to those for 10BASE-T cable when used with Category 5 UTP/FTP cable.
13. Local User
To use the DX User IP locally, connect a keyboard, video and mouse as illustrated
in Figure 7.
14. Connecting an RS232 terminal
Connect the RS232 terminal to the DX User as illustrated in the figures below.
To
Terminal
port
Terminal
VT420
Contrast Bright
d i g i t a l
Login: admin
Password_|
POWER
100-240 VAC 50/60 Hz
w
w
w
.m
in
ic
o
m
.c
o m
ETHERNET
SERIAL I
0
SYSTEM
USB TERMINAL
USER
RST

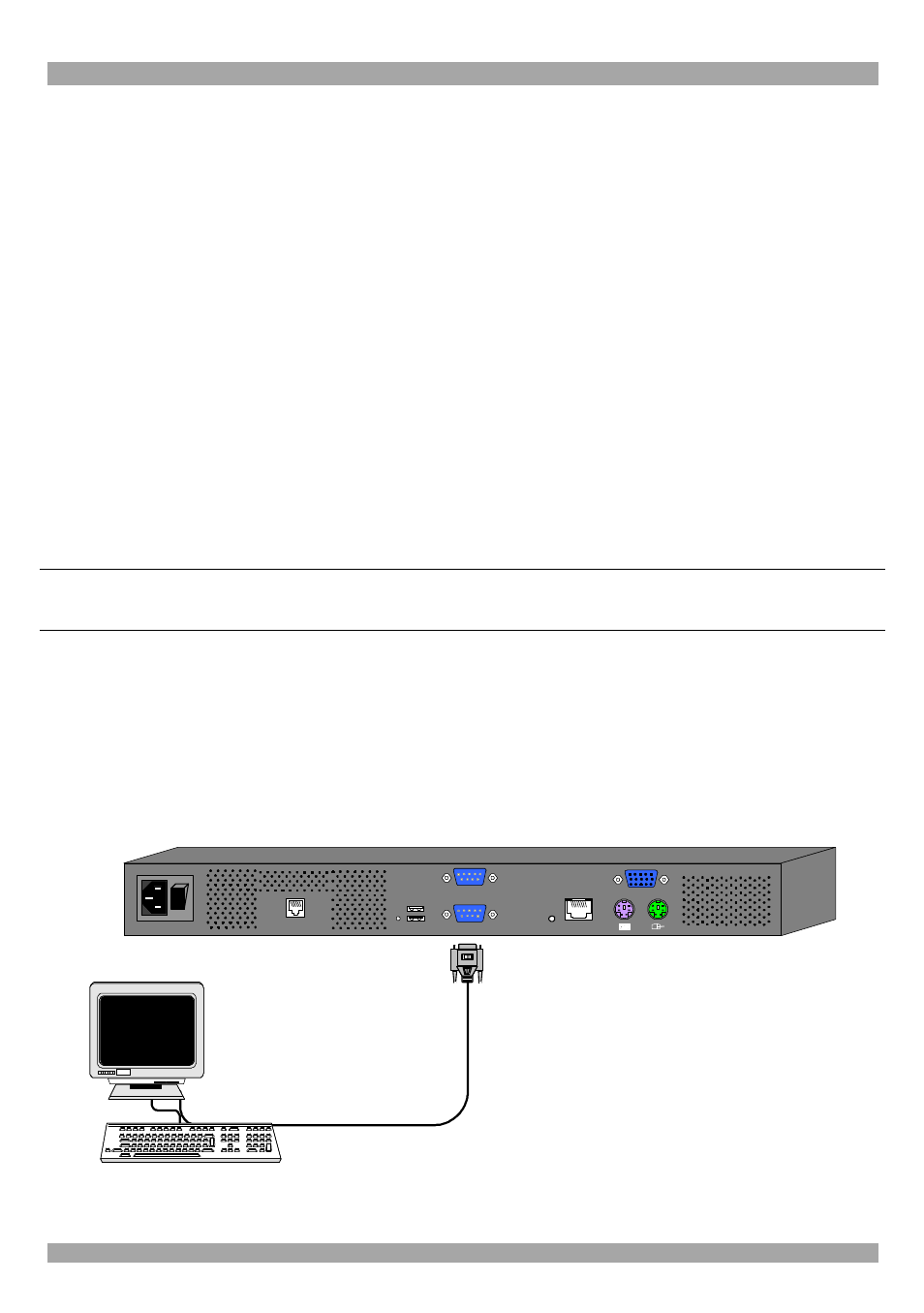

Figure 8 Connecting the RS232 terminal
For the Serial SUB-D 9 connector pin-out see Appendix C.
