DX USER IP
9
The Motion section slider bar must be in the center, and the Enhanced pointer
precision box must be unchecked. Click OK to save changes.
Disable Active Desktop
Disable Active Desktop, or do not use a plain background, use wallpaper.
11. DX User IP connections

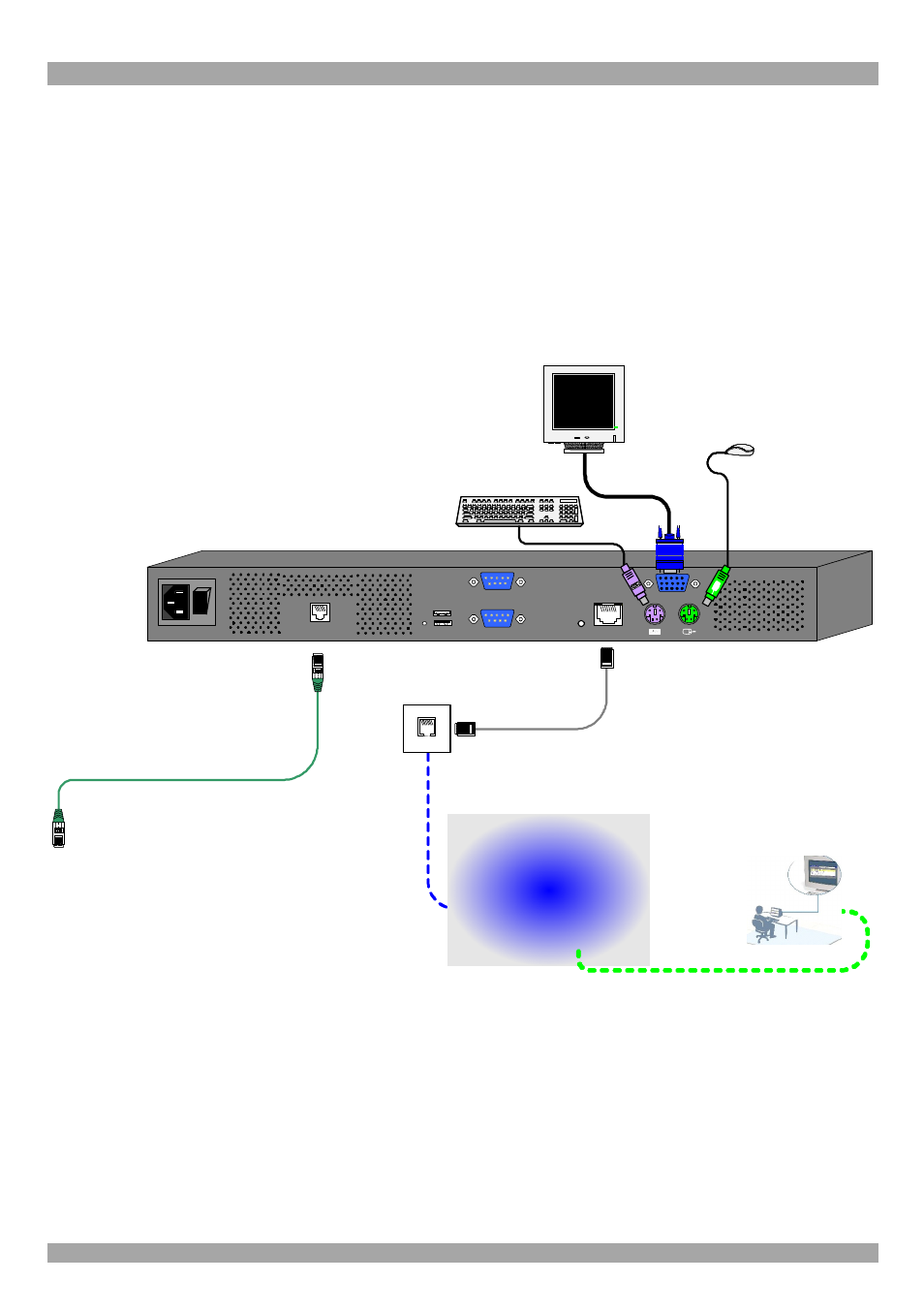

Figure 7 below illustrates the connections of the DX User IP to the DX system. See
below for more details.
SD P110
CAT5 cable
LAN / WAN
To DX Central
User port
User over IP
Ethernet
cable
POWER
100-240 VAC 50/60 Hz
w
w
w
.m
in
ic
o
m
.c
om
ETHERNET
SERIAL I
0
SYSTEM
USB TERMINAL
USER
RST
Figure 7 DX User IP connections
12. Connecting the DX User IP to the Wan/LAN
The Ethernet connector on the DX User IP can be used either for a 100 Mbps
100BASE-TX connection or for a 10 Mbps 10BASE-T connection. The adapter
adjusts to the appropriate operation mode automatically.
To connect to a LAN/WAN, connect an Ethernet cable as illustrated in Figure 7. For
the Ethernet - RJ 45 connector pin-out see Appendix C.
