83D0511

ILDV20/ILDV30 Fireplace Insert

9

cLeARANceS

iNSeRt cLeARANceS

No combustibles (ie: drapes, doors) may be within, or swing within 36" of the front of the insert.

MANteL cLeARANceS

NOte: the combustible area above the facing must not protrude more than

3

/4" from the

facing. if it does, it is considered a mantel and must meet the mantel requirements listed
in this manual.

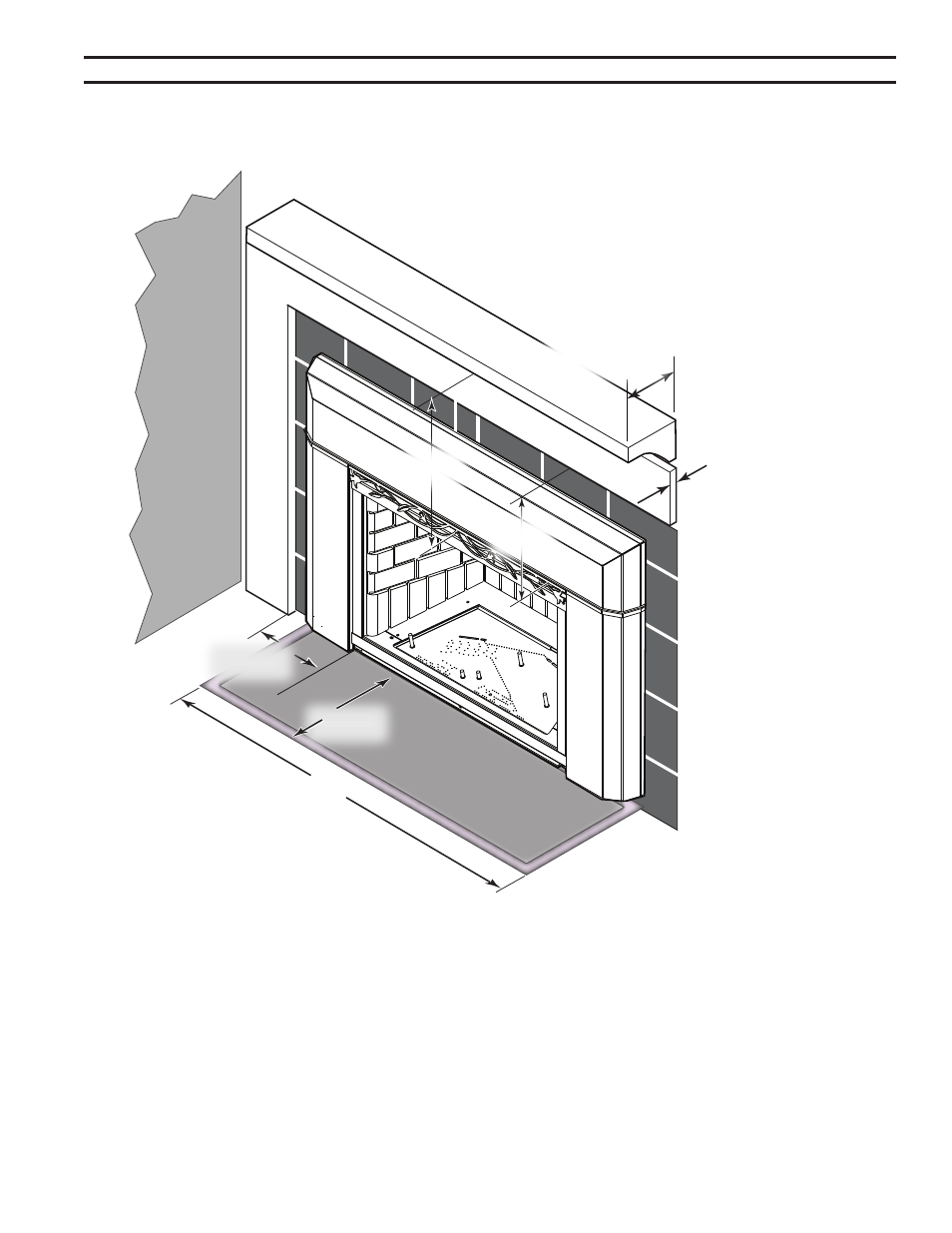

heARth RequiReMeNtS

The insert must be installed on a noncombustible hearth extending a minimum of 1" from the
fireplace opening (local codes may require a larger hearth). The hearth must also extend to both
sides of the face (Refer to the table on Page 7).

12” (305 mm)

Maximum Depth

12”

(305 mm)

Side Wall

Combustible Mantel

Top Facing

Side Facing

3/4” (19 mm)

Maximum Depth

Combustible Facing

42” (1067 mm)

Minimum

10” (254 mm)

Minimum

12” (305 mm)

Minimum

FP1947

insert clearances

9/08

9”

(228 mm)

FP1947

Figure 3
Mantel Clearances

NOte: Side clearance to com-
bustibles is 10" (54 mm) from
opening whether it is side wall
or mantel legs.
