Monessen Hearth ILDV20PV - Manual (Page 17)

83D0511
ILDV20/ILDV30 Fireplace Insert
17
iNSeRt iNStALLAtiON
checK GAS tyPe
Use proper gas type for the insert you are installing. If you have conflicting gas type, do not
install insert. See dealer where you purchased the insert for proper insert according to your
gas type.
iNStALL GAS PiPiNG tO iNSeRt LOcAtiON
W
ARN
iNG A qualified installer or service person
must connect appliance to gas supply.
Follow all local codes.
c
A
uti
ON
For propane/LP units, never connect insert directly to the propane/
LP supply. this burner system requires an external regulator (not
supplied). install the external regulator between the burner system
and propane/LP supply.
iNStALLAtiON iteMS NeeDeD
Make sure you have the items listed below before installing appliance.
• External regulator (supplied by installer) • Piping (check local codes) • Test gauge connection*
• Sealant (resistant to propane/LP gas) • Sediment trap (optional but recommended)
• Tee joint • Pipe wrench
• approved flexible gas line with gas connector (if allowed by local codes — not provided)
* A CSA design-certified equipment shutoff valve with 1/8" NPT tap is an acceptable alternative to test
gauge connection. Purchase the CSA design-certified equipment shutoff valve from your dealer.
For propane/LP connections only, the installer must supply an external regulator. The external regulator will
reduce incoming gas pressure. You must reduce incoming gas pressure to between 11 and 13 inches of wa-
ter. If you do not reduce incoming gas pressure, burner system regulator damage could occur. Install external

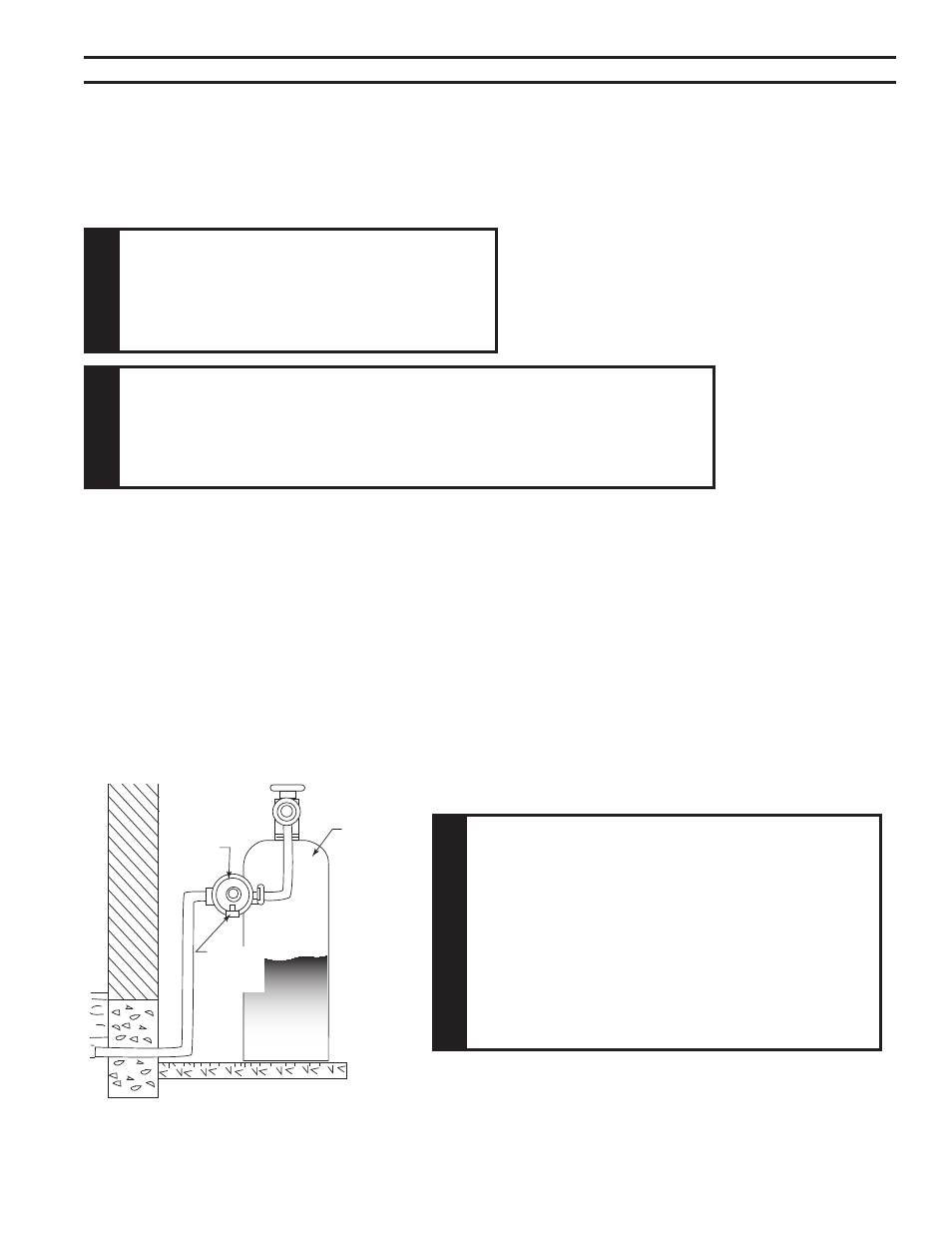

regulator with the vent pointing down as shown in Figure 12. Pointing the vent down protects it from freezing
rain or sleet.
&0
EXTERNAL
External
Regual-
tor
Vent
Pointing
Down
100 gal. (min.
Propane/LP
Supply Tank
FP1930
Figure 12 - External Regulator with Vent
Pointing Down (Propane/LP Only)
c
A
uti
ON
use only new black iron or steel pipe. inter-
nally tinned copper or copper tubing can be
used per National Fuel Gas code, Section
2.6.3, providing gas meets hydrogen sulfide
limits, and where permitted by local codes.
Gas piping system must be sized to provide
minimum inlet pressure (listed on data plate)
at the maximum flow rate (Btu/hr). undue
pressure loss will occur if the pipe is too
small.
