Monessen Hearth ILDV20PV User Manual
Page 24
4
83D0511

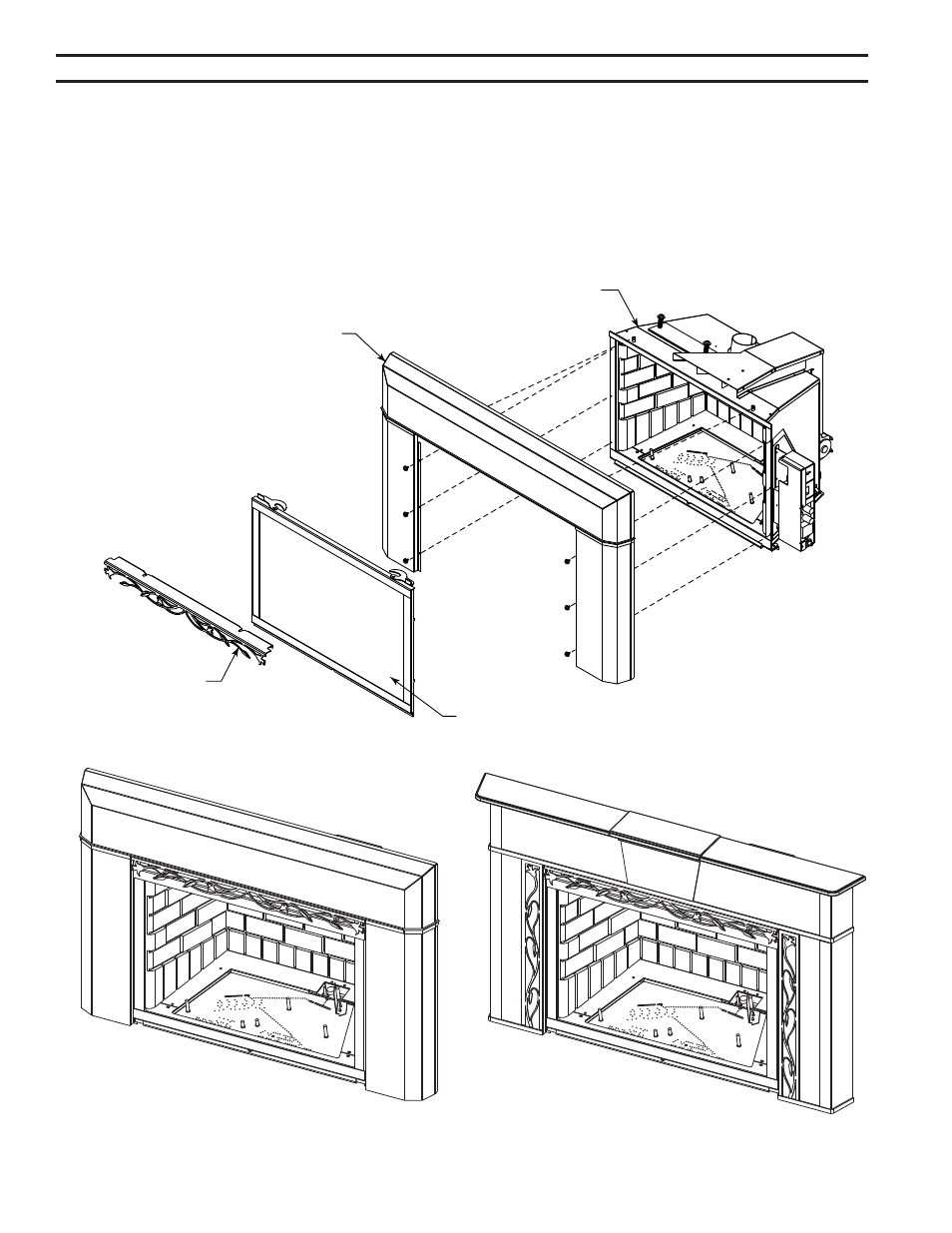

ILDV20/ILDV30 Fireplace Insert
SuRROuND iNStALLAtiON
iNStALL SuRROuND
1. Remove glass door assembly. Page 29, Figure 34
. Align cast or beveled surround holes with insert and attach with screws provided.
3. Re-attach glass door assembly.
4. Attach filigree to face by gently pushing into place.
FP1934
insert surrounds
9/08
Figure 24
Beveled Surround
Figure 25
Cast Surround
FP1934
FP1962
install surround
9/08
Insert
Facing
Filigree
Glass Door
Assembly
FP196
Figure 23
Install Surround
