eleCTRICal InSTallaTIon
eleCTRonIC pIloT IGnITIon wIRInG

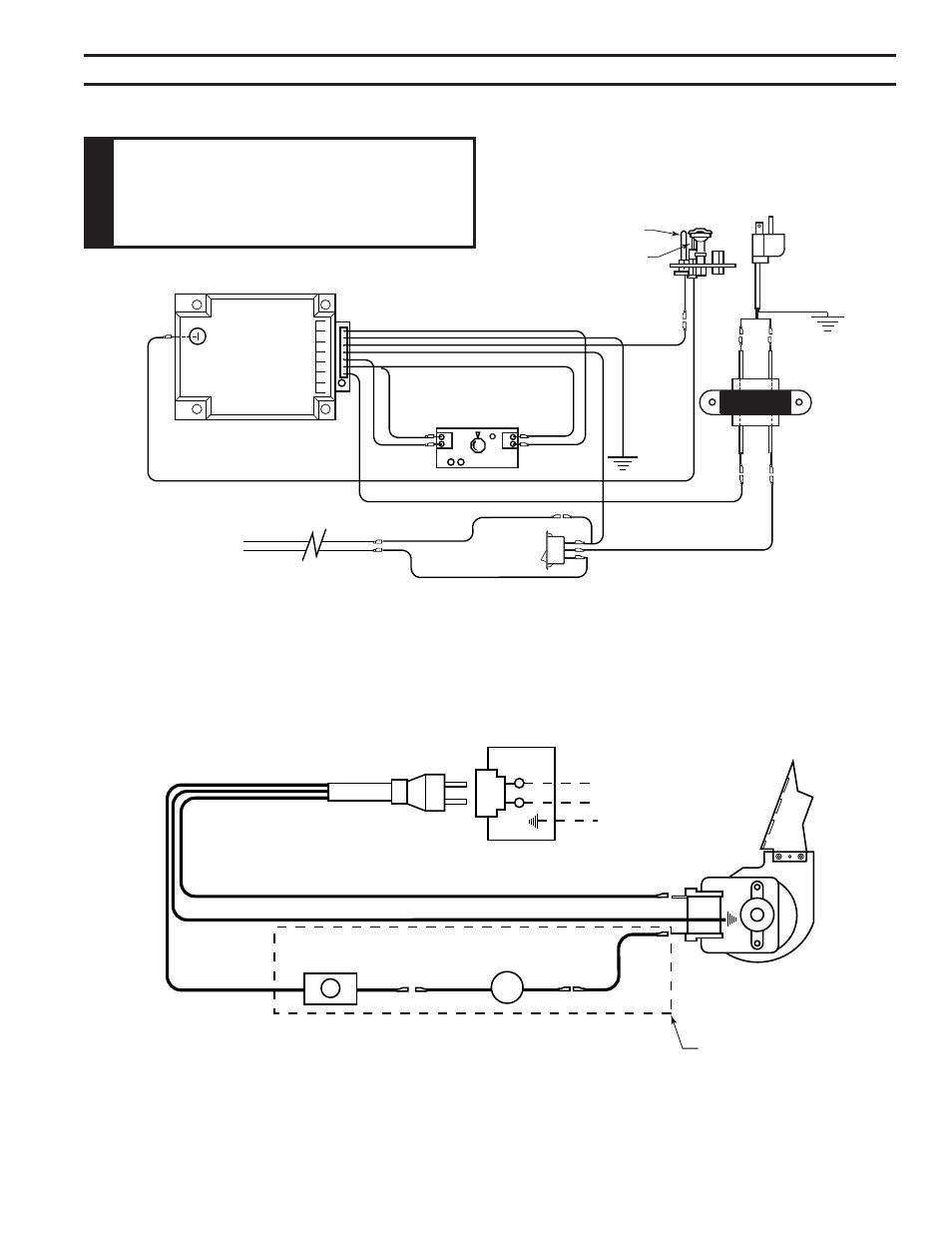

Figure 45 -
Remote Wall Switch Wiring Diagram
#1
#2
#3
#4
#5
#6
7#
Electronic Valve
GRAY #7
RED #2 RED #2
BLACK #4
GREEN #6
BLUE #1
BLUE
YELLOW
YELLOW
WHITE #3
MAGENTA #5
15’ Wall Switch Wire
BLACK
WHITE Switch
RS
OFF
ON
Transformer
Secondary
24V
WHITE
WHITE
GREEN
BLACK
BLACK
Primary - 120V
To Junction Box
Pilot Assembly
Sense
Ignition Module (Synetek)
Spark
FP2295
electronic wiring diagram
HI
LO EV1 EV2
w
a
R
n
In
G
Do not connect 110-120 VaC to the
Remote wall Switch. The appliance will
malfunction.
opTIonal Fan/BloweR SySTeMS
The junction box for the fan/blower systems has been factory installed. This system requires that 110-
10 VAC to be wired to the factory installed junction box before the fireplace is permanently installed.
Figure 46
Black Black
Green
Black
Black White
Thermostatic
Switch
Receptacle
Junction Box
120V AC
FP2296
blower wiring
Speed Control
Thermostatic
Control Blower
FP96
Figure 46 -
Blower Wiring Diagram
