The fireplace must be secured to the
floor and/or to framing studs as shown
in Figure 7. Use two () wood screws
or masonry/ concrete screws to secure
fireplace to the floor. Use four (4) screws
to attach fireplace to framing. The side
nailing flanges are 1/" or 5/8" to accom-
modate different wall thickness.
SeCuRe FIReplaCe To FlooR oR FRaMInG

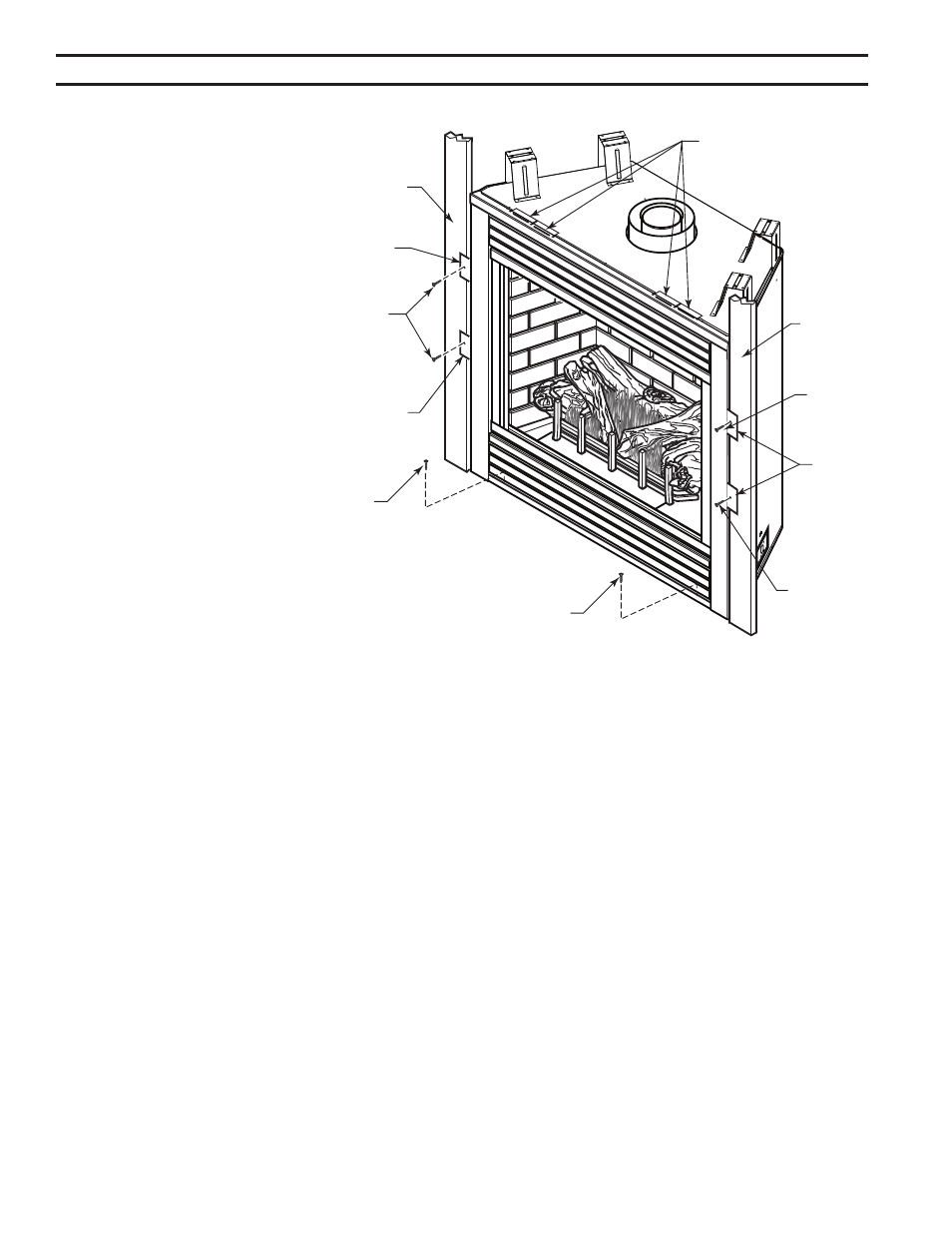

Figure 7 -
Securing Fireplace to Floor and
Framing Studs (CDVT36 shown)
FP2287
secure fireplace
Screw
Framing
Framing
Nailing
Flange
Screws
Screw
Nailing
Flange
Nailing
Flanges
Drywall Support Tabs (Do
Not Use for Framing or
Header)
Screw
Screw
FP87
FInIShInG MaTeRIal
noTe: Any wiring (i.e. remote control, wall switch, and optional fan) must be done prior to final
finishing to avoid costly reconstruction.
Only noncombustible materials (i.e. brick, tile, slate, steel, or other materials with a UL fire rating
of Zero) may be used to cover the black surface of the appliance. A 300°F minimum adhesive
may be used to attach facing materials to the black surface. If joints between the finished wall
and the fireplace surround are sealed, a 300°F minimum sealant material (General Electric
RTV103 or equivalent) must be used.
