KHLDV Series Gas Fireplace
repLaceMent partS

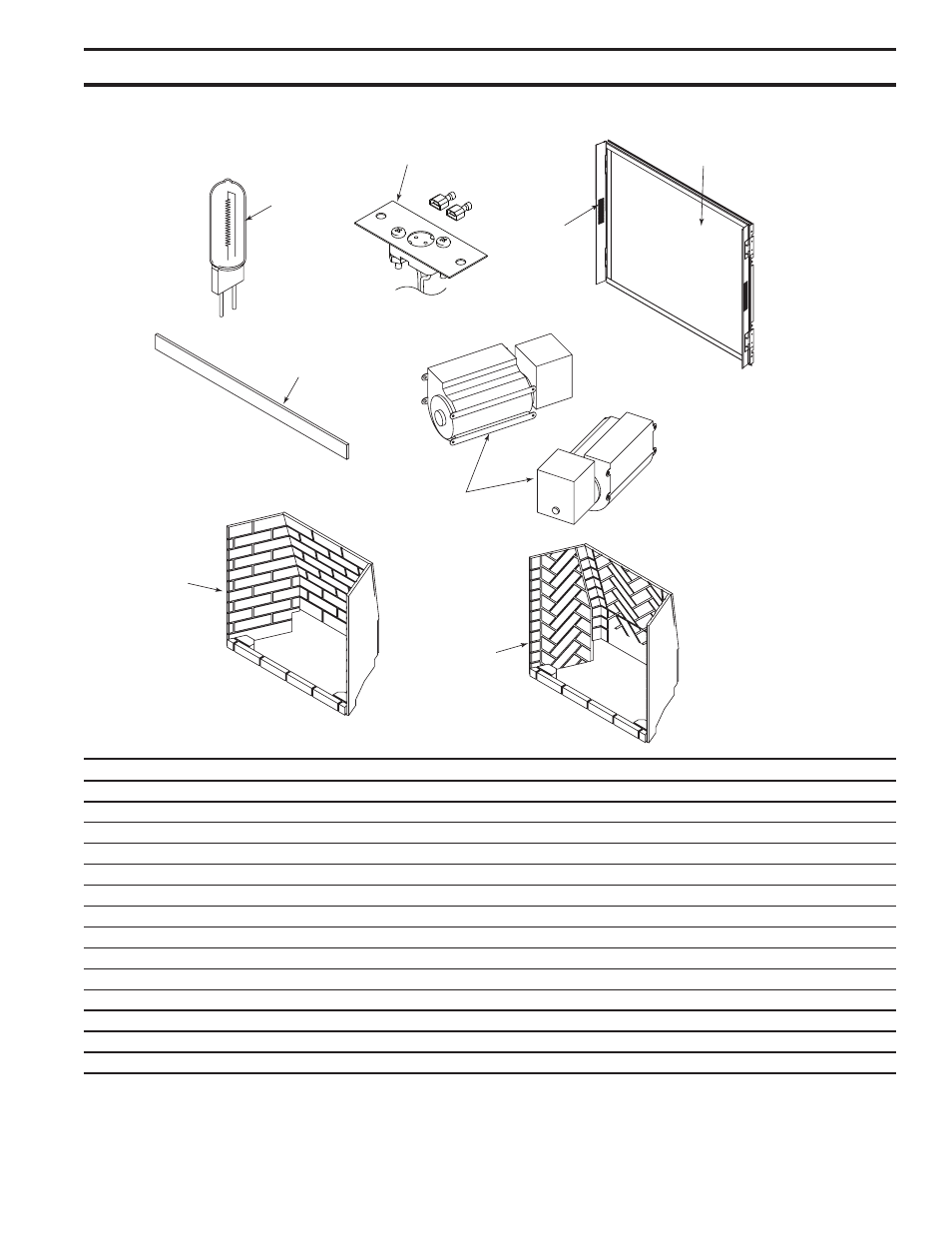

FIreBOx cOMpOnentS anD acceSSOrIeS
1
2
3
5
6
11a,b
7a,b
8
730024
KHLDV firebox parts
Item
Description
qty.
KHLDV400
KHLDV500
1.
Bulb
2
73D0020
73D0020
2.
Bulb Socket
2
73D4521K
73D4521K
3.
Glass Frame Assembly
1
73D1015K
73D0159K
4.
Junction Box Assembly (not shown)
1
26D2128K
26D2128K
5.
Light Lens
1
73D0022
73D0022
6.
Panel, Access, Door
2
73D0029K
73D0029K
7a.
Cottage Clay Firebrick Set
1
FBKHLDV40CC
FBKHLDV500CC
7b.
Cottage Red Firebrick Set
1
FBKHLDV400CR
FBKHLDV500CR
8.
Vintage Brown Herringbone Firebrick Set
1
FBKHLDV400VB
FBKHLDV500VB
accessories / Field Installed Options
9.
Right Access Panel, w/Louvers (used with blower)
1
73D4511K
73D4511K
10.
Left Access Panel, w/Louvers (used with blower)
1
73D4512K
73D4512K
11a.
T-Stat Blower with Speed Control (Millivolt system)
1
BLOTKHLTD
BLOTKHLTD
11b.
Blower Kit (Signature Command System)
1
BLOTKHLSC
BLOTKHLSC
