The fireplace must be secured to the floor and/or to framing studs as shown in Figure 6. Use two
(2) wood screws or masonry/ concrete screws to secure fireplace to the floor. Use four (4) screws
to attach fireplace to framing. The side nailing flanges are 1/2" or 5/8" to accommodate different
wall thickness.
Secure FIrepLace to FLOOr or FraMInG
n
O
te
never install combustible materials
over front face of fireplace.
FP2130
secure fireplace to floor
6”
Framing Members
Noncombustible Material
Noncombustible
Material Must Rise
at Least to Top of
Stand off
Secure to Floor Behind
Access Panels
All Combustible Materials
Must Keep 3/4" Spacing
Nailing Flange
FP2130

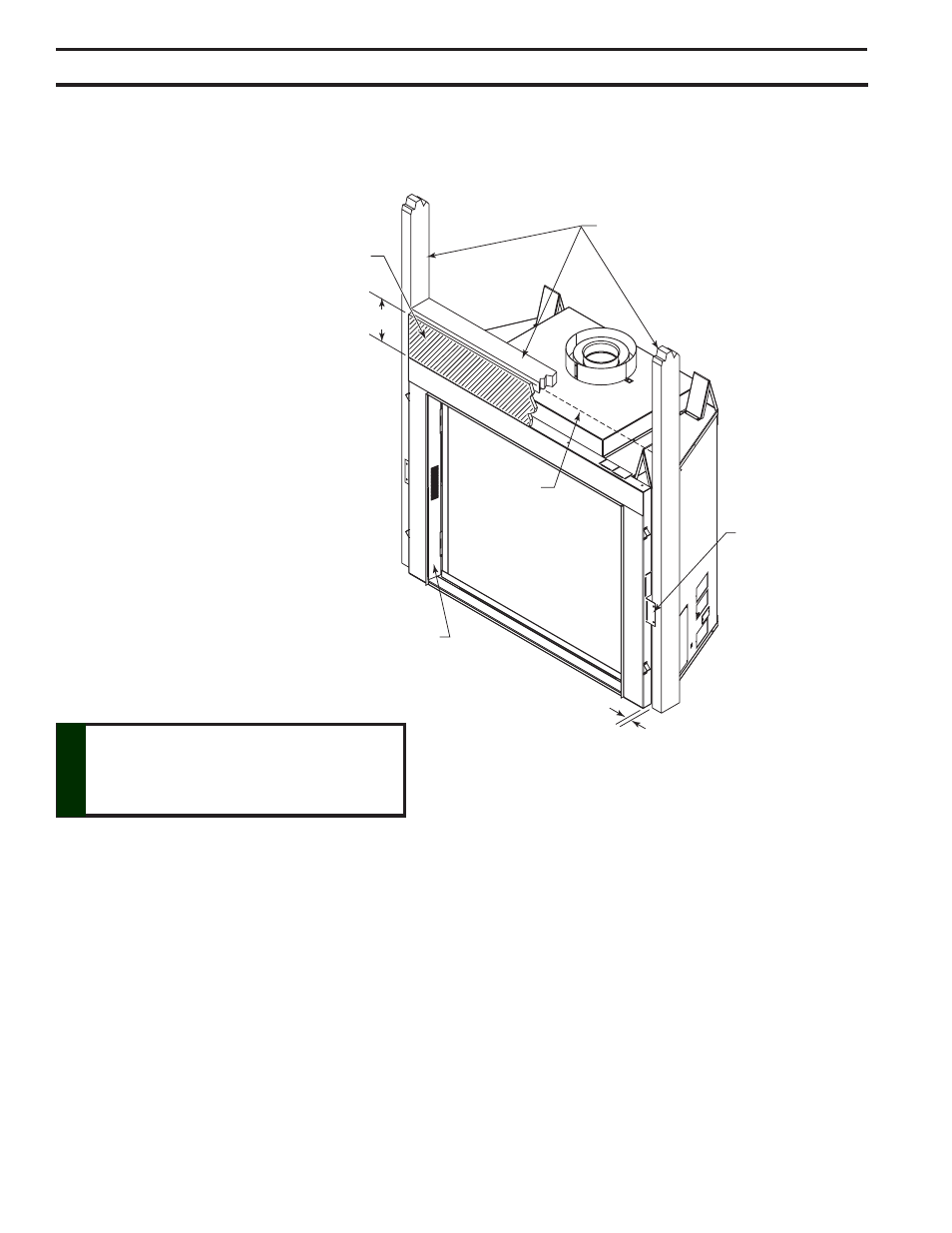

Figure 6 -
Secure Fireplace to Floor and Framing Studs
FInISHInG MaterIaL
nOte: Any remote wiring (i.e. remote control, wall switch, and optional fan) must be done prior to
final finishing to avoid costly reconstruction.
Only noncombustible materials (i.e. brick, tile, slate, steel, or other materials with a UL fire rating of
Zero) may be used to cover the black painted face of the appliance. It is permissible to bring com-
bustible wall board to the top of the stand-offs on the top and the sides of the unit. A 300°F minimum
adhesive may be used to attach facing materials to the black surface. If joints between the finished
wall and the fireplace surround are sealed, a 300°F minimum sealant material (General Electric
RTV103 or equivalent) must be used.
