KHLDV Series Gas Fireplace reMOte cOntrOL OperatIOn
reMOte tranSMItter OperatIOnS
General
Figure 48
The RFSC Remote Control has two (2) operating modes: Manual and Thermostatic. The
control system can be set to a temperature range between 45° F and 90° F. The blower
speed, light, rear burner shut down and flame height can be adjusted in either the manual
and thermostatic mode.
The transmitter will operate the remote receiver from 12" to a maximum of 30'. nOte: The
distance decreases when the batteries are low.
°F
▲ON ▲OFF
FAN AUTO
LIGHT AUX
AMBIENT
FP2141
signature remote
12/08

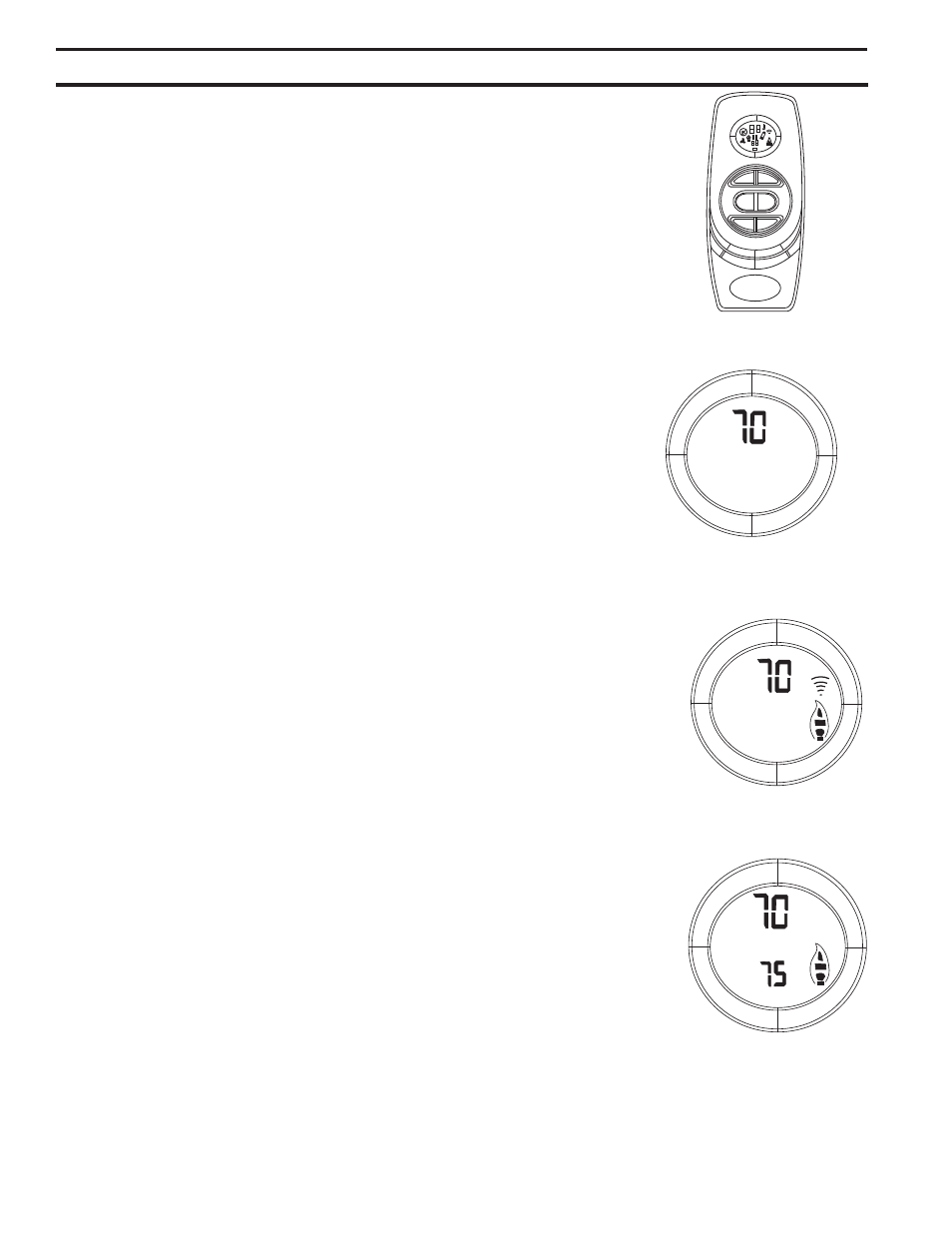

Figure 48 -
Remote Transmitter
FP2141
FP2142
Figure 49 -
Typical Reset Display
°F
FP2142
initial start up
FP2143
Figure 50 -
Manual Mode
°F
FP2143
manual mode
12/08
FP2144
Figure 51 -
Thermostatic Mode
°F
FP2144
thermostat mode
12/08
°F
SET
Initial Startup
Figure 49
1. After initial power up or when RESET button is pressed, the transmitter is reset. The
reset button is located behind the battery door of transmitter.
2. During system reset, all features of the LCD DISPLAY will be visible. After one second,
the LCD will be initialized. A typical reset display is shown in Figure 49. Note that the
temperature scale is degree F.
3. Press ON button to select between °C and °F display. It will exit setting mode automati-
cally after 10 seconds if no key is pressed. The transmitter will send an OFF signal
after reset.
4. After reset, the transmitter is operating in manual mode. The room temperature is
shown.
Manual Mode
Figure 50
1. Press the ON button once to turn on the appliance with max flame height.
2. Press the OFF button to decrease flame height. The first two (2) presses will decrease
flame height to lower level. The third press will turn off the fireplace.
3. If OFF button is held for more than three (3) seconds, the fireplace will be shut off and
remembers the last flame height setting. It will also remember light and auxiliary settings.
To reset, change setting and hold OFF button for 3 seconds. New setting is now remem-
bered.
thermostatic Mode
Figure 51
1. Press the AUTO button to enter the thermostatic mode. Figure 51
2. In thermostatic mode, press the ON / ▲ button or OFF / ▼ button to set the desired set
temperature.
3. Once the setting is completed, the transmitter will automatically turn on the fireplace when
the room temperature is below the set temperature and turn off the fireplace when the
room temperature is above the set temperature within 1 degree.
4. There will be a slight delay in the response of the unit (on/off) to a temperature. Room
temperature is monitored every three (3) minutes.
5. Press AUTO button to exit the thermostatic mode. The transmitter will be in the manual
off mode and the fireplace will be shut off.
nOte: When thermostat mode is used, the command center ON/OFF buttons will not
function, only the master switch will function.
