KHLDV Series Gas Fireplace GLaSS reMOVaL
GLaSS FraMe reMOVaL
1. Remove the plate located in front of the glass at the bottom.
2. Remove rod provided for screen assembly located beneath the cover plate.
3. Rotate the access doors on the right and left side of the glass toward the glass.

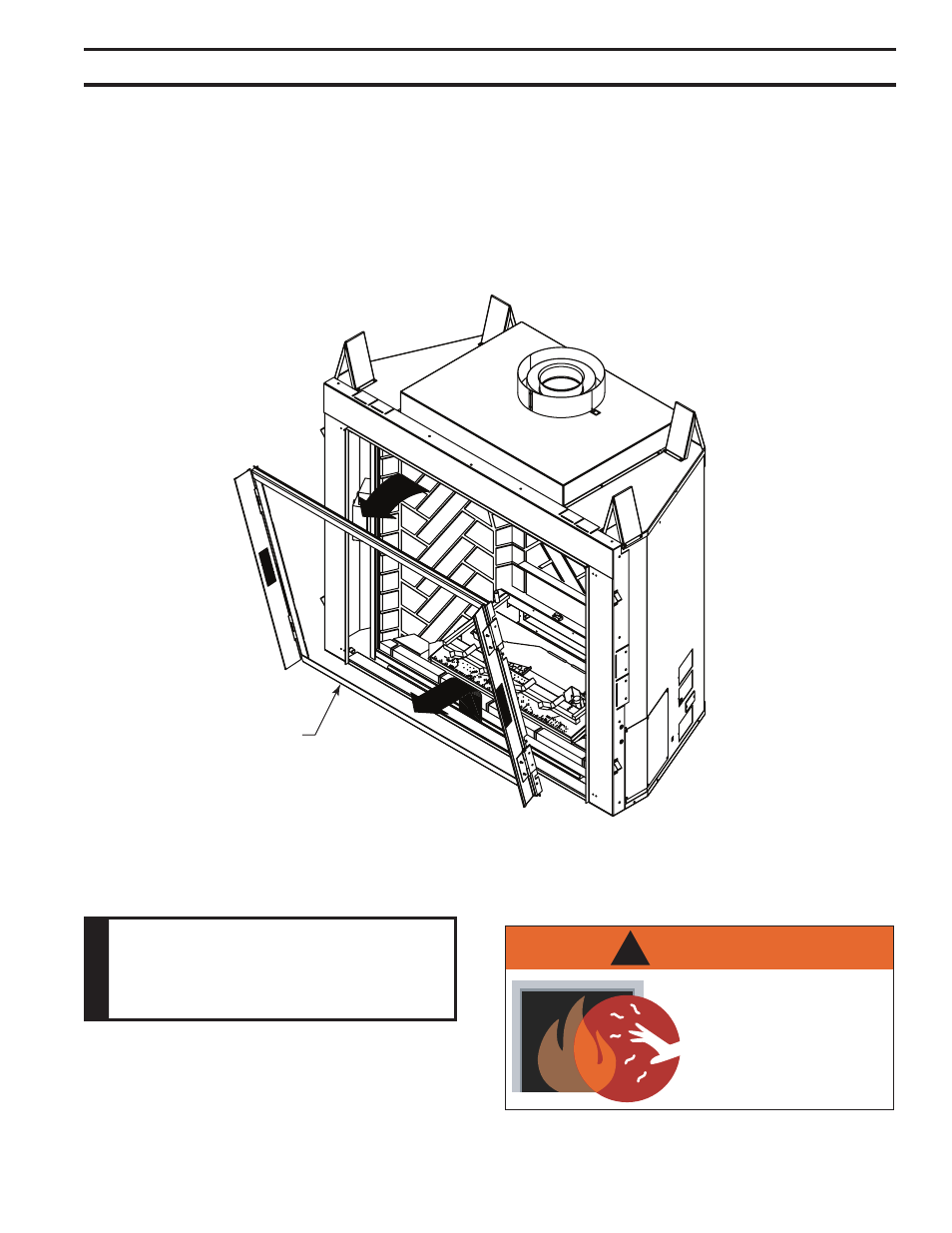

4. Remove glass frame by releasing the three latches located at the top of the firebox. Tilt glass away
from the unit, lift glass frame up and away from the unit. Figure 60
FP2153
remove glass frame
Figure 60 -
Remove Glass Frame
Glass Frame
FP2153
c
a
u
t
IO
n
each clamp has a quick spring force. when
reinstalling clamps, keep fingers clear.
WARNING
!
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
