73D0024 33
KHLDV Series Gas Fireplace
13. Connect the two (2) wiring harness wires to the wires marked (blower) from the AC Module
and snap wires into clips from Step 9.
14. Replace logs.
15. Replace the glass.
16. Replace the front plate below the glass frame. nOte: the front plate hides the wire har-
ness in the front.
To Junction Box
In Fireplace
White
Black White
Black Black
White
Green
Connector
Pin To Control Box
AC Module
{
{
Light
Rear
Burner
Solenoid
Control Box
Blower
Right
Blower
Left
Black
Black
FP1915
AC box wiring
8/08

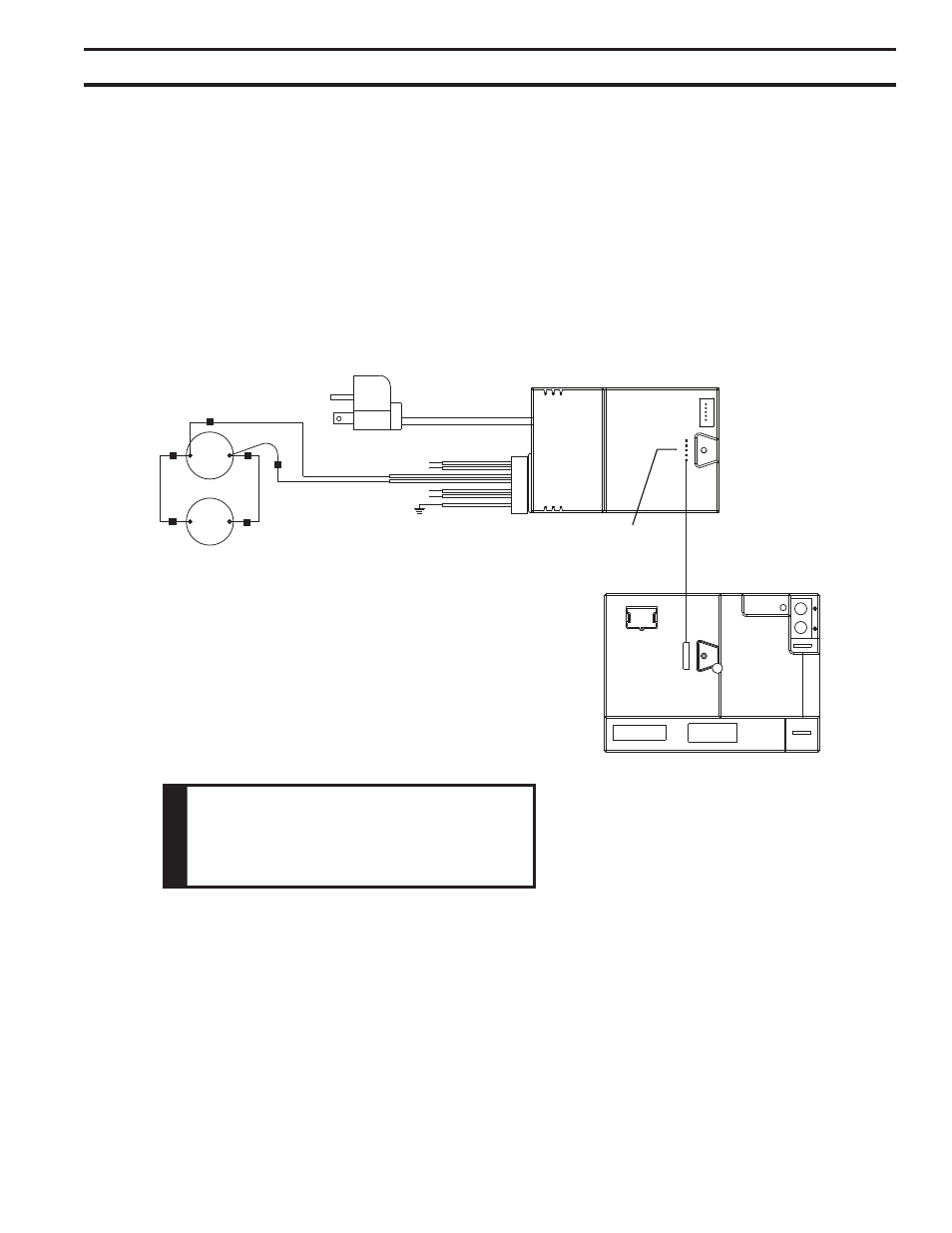

Figure 43 -
Blower Wiring Diagram
FP1915
w
a
rn
In
G Electrical Grounding Instructions: This appli-
ance is equipped with a three-prong (grounding)
plug for your protection against shock hazard
and should be plugged directly into a properly
grounded three prong receptacle.
SIGnature cOMManD - OptIOnaL Fan BLOwer SySteM
