KHLDV Series Gas Fireplace
MILLIVOLt - OperatInG InStructIOnS
LIGHtInG Burner
MaIn Burner SwItcH
The “ON/OFF/RS” switch for the main burner can be found behind door
of the fireplace. This switch allows you to turn on and to turn off the
main burner without using the gas valve knob. Make sure the button
is in the “ON” position to light the main burner.

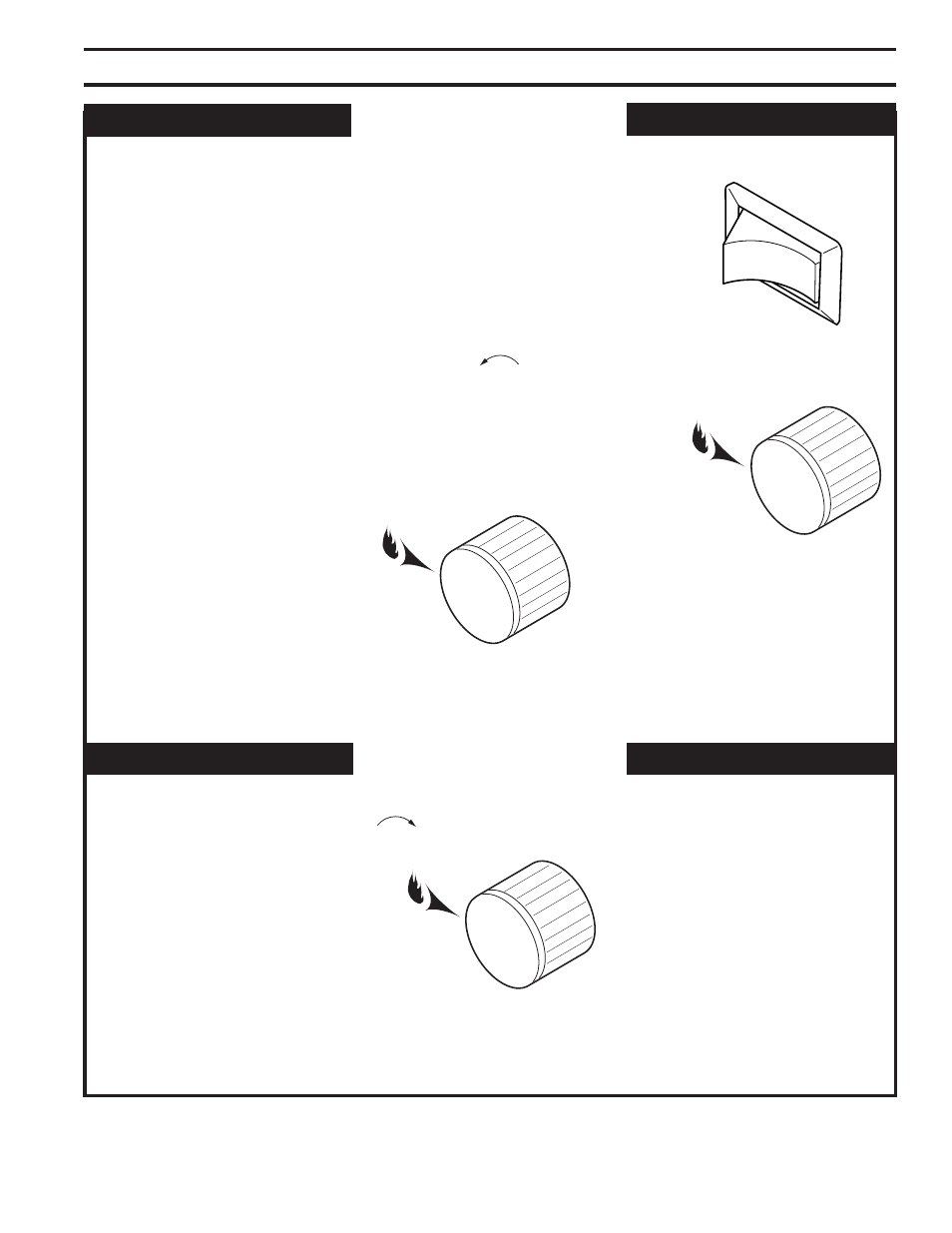

Figure 36
LIGHtInG tHe Burner
Depress and turn the knob counterclockwise
to the “ON” posi-
tion. Figure 37. It will take less than four (4) seconds for the burner to
ignite.
pILOt pOSItIOn
Depress and turn knob to pilot position to keep burner off while main-
taining the pilot light. Figure 38
Depress and turn knob clockwise to “OFF” position. Figure 39
tO turn OFF GaS
Figure 39 -
Off Position
Figure 38 -
Pilot Position
