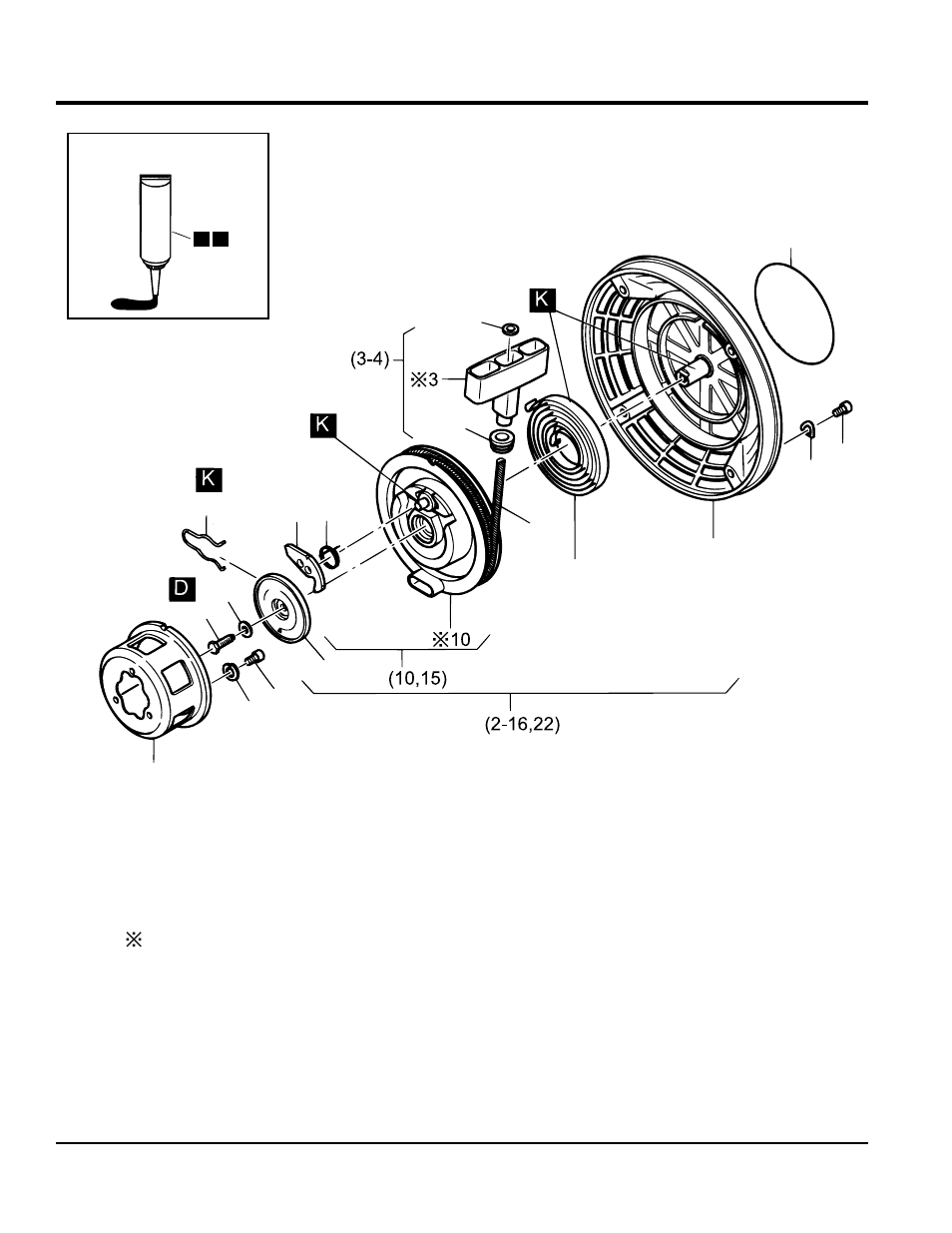

hatZ 1B40u-2203a — recOil starter assy.
22
20
6
5
8
7
9
4
2
11
15 16
21
12
1
18
17
19
14
13
D K
SEALING AND BONDING
ADHESIVES
Not available separately
RECOIL STARTER ASSY.
no. parT no. parT naMe qTY. reMarKs
D 50223300 LOCTITE221 50ML 1
K 50342601 HOCHTEMP.FETT 400G 1
1 01851900 RECOIL-STARTER ...........................................1................INCLUDES ITEMS W/ %
2% 01497800 HANDLE ASSY. ................................................1................INCLUDES ITEMS W/ #
3%# HANDLE ............................................................1................NOT SOLD SEPARATELY
4%# 03665200 RUBBER SLEEVE 1
5% 05045201 RETURN SPRING 1
6% 01569300 HOUSING F.R.START 1
7% 50081200 SPRING WASHER A6 4
8% 50062700 ALLEN SCREW M6X10 4
9% 05088901 ROPE F.R.START 1
10%$ ROPE PULLEY ..................................................1................NOT SOLD SEPARATELY
11% 05044901 BRAKE SPRING 1
12% 05045001 BRAKE DISC 1
13% 50146300 HEX SCREW M6X18 1
14% 50390701 CON.SPR.WASHER 6 1
15%$ 05044800 RATCHET 1
16% 05061300 RETURN SPRING 1
17 50062700 ALLEN SCREW M6X10 3
18 50170900 SPRING WASHER 6 3
19 04155000 DRIVING SLEEVE 1
20 05298100 STICKER LABEL 1
21 01548800 ROPE PULLEY .................................................1................INCLUDES ITEM W/ $
22% 50514600 WASHER 5.3 1
