qp4TzT10p/TMp16F/TMpXF Trash puMp • operaTion & parTs Manual — rev. #1 (08/29/11) — page 13
diMensiOns
B
C
A
D
E
F
K
G
H
J
L

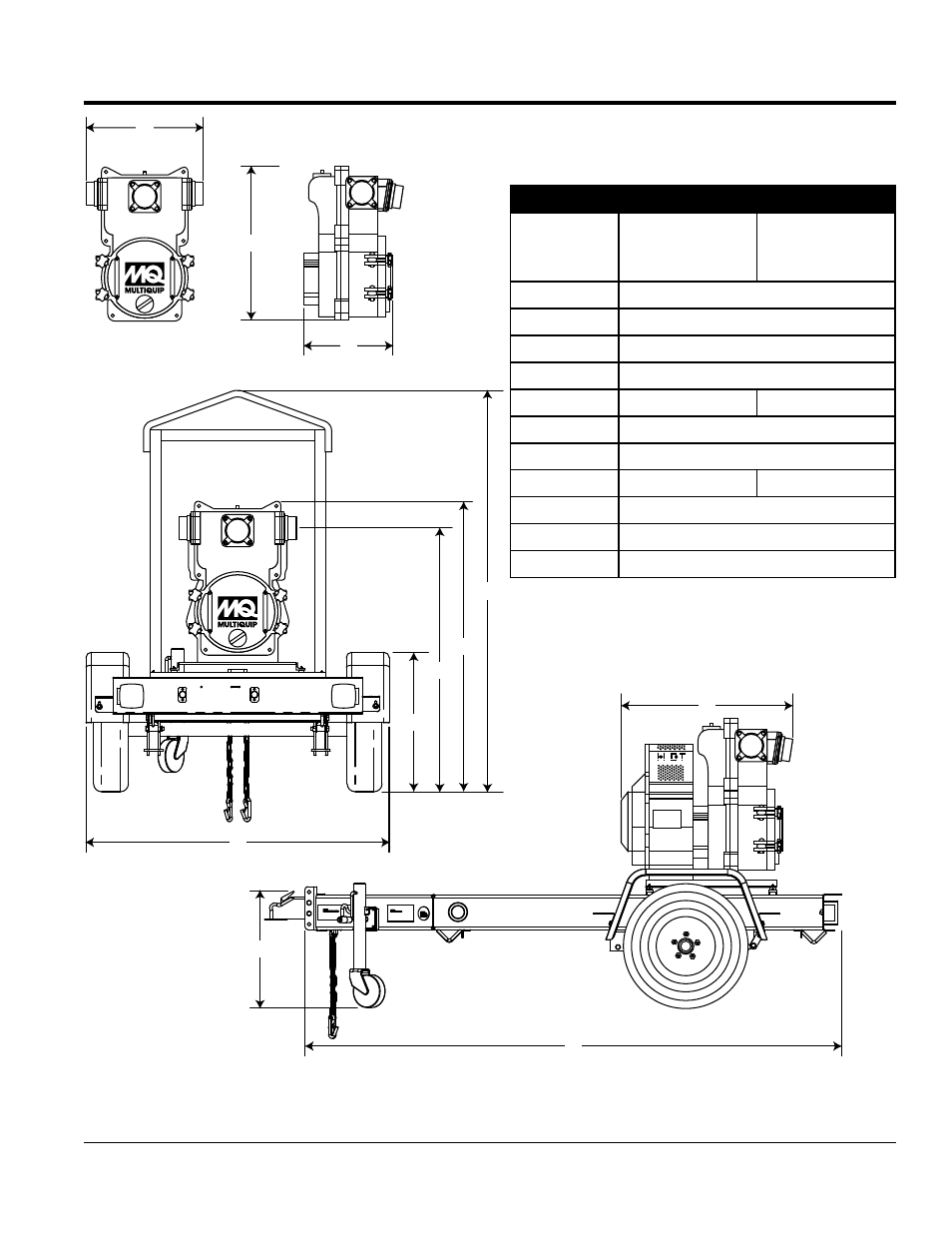

Figure 2. Dimensions
Table 3. Dimensions
Reference
Letter
QP4TZTMP16F/
QP4TZTMPXF
in. (mm)
QP4TZT10P
in. (mm)
A 19 (485)
B 24.2 (615)
C 13.5 (343)
D 49 (1,245)
E 56.5 (1,435) 52.4 (1,331)
F 44.5 (1,130)
G 23.5 (597)
H 102 (2,591) 91.6 (2,327)
J 25 (635)
K 67 (1,702)
L 28.4 (721)
