page 12 — qp4TzT10p/TMp16F/TMpXF Trash puMp • operaTion & parTs Manual — rev. #1 (08/29/11)
speciFicatiOns
Table 1. pump specifications
Model QP4TZT10P QP4TZTMP16F QP4TZTMPXF
Type Trash Pump
Suction x Discharge Size 4 x 4 in. (100 x 100 mm)
Maximum Pumping Capacity 526 gal/minute (2000 liters/minute)
Maximum Solids Diameter 1.50 in. (38 mm)
Maximum Lift 25 ft. (7.62 m)
Maximum Head 85 ft. (26 m)
Dry Net Weight (Pump) 265 lb (120 kg)
Dry Net Weight (Pump and Trailer) 550 lb (250 kg) 665 lb (302 kg) 735 lb (334 kg)
Fuel Tank Capacity 5.2 quarts (5 liters) 16 gal (60.6 liters) 28 gal (106 liters)
Table 2. engine specifications
Engine Make HATZ 1B40U-2203A
Engine Type Air-Cooled, 4-Stroke, Single Cylinder, Diesel Engine
Cylinder Bore x Stroke 3.5 x 3in (88 x 76 mm)
Displacement 29 in. 3 (462 cm 3 )
Maximum Output 9.9 HP @3600 RPM (7.4 kW)
Fuel Tank Capacity 5.2 quarts (5 liters)
Oil Capacity 1.6 quarts (1.5 liters)
Starting Method Electric/Recoil Start
Dry Net Weight 121.25 lbs (55 kg)

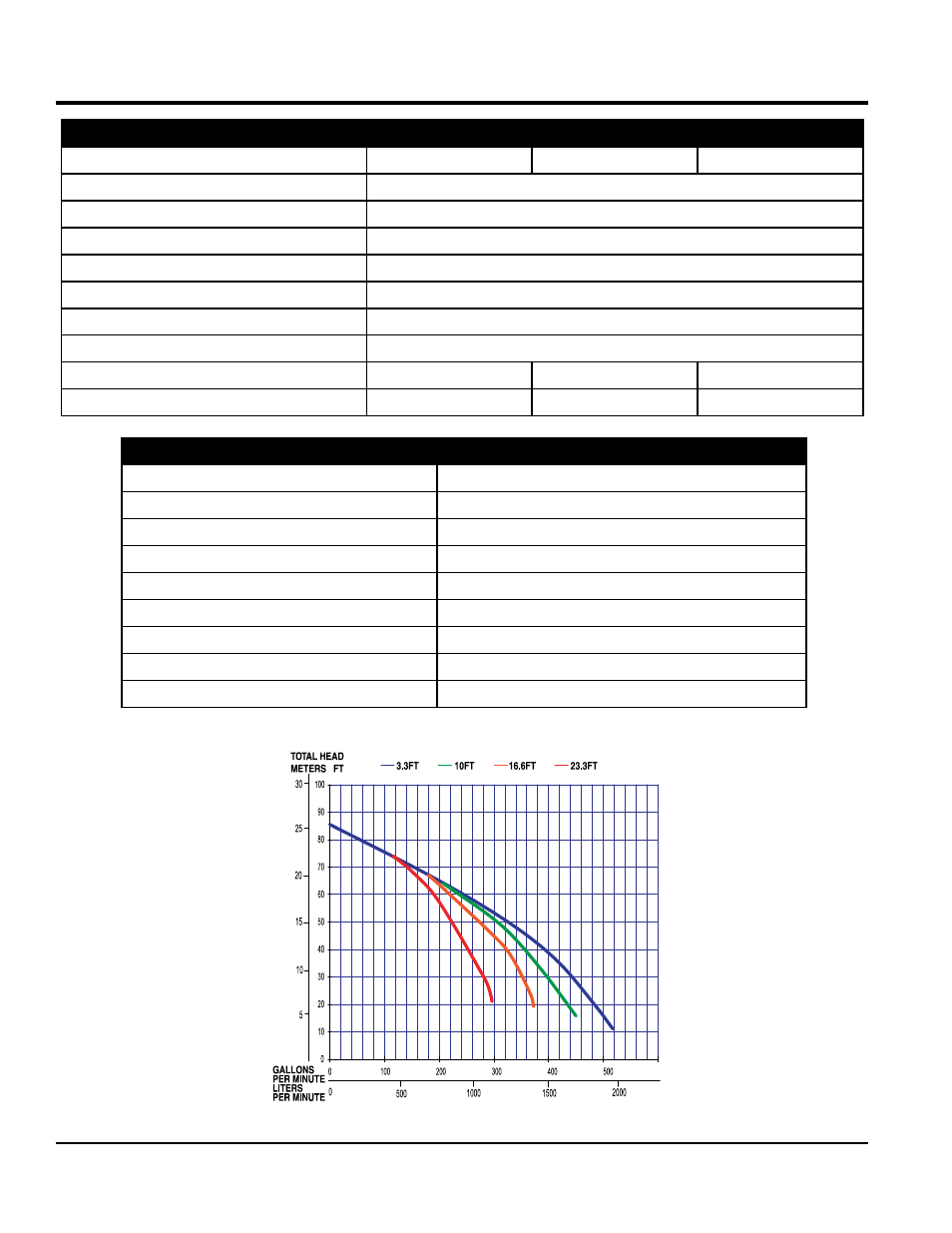

Figure 1. Performance Curve
