33D4047 25
LOG PLACEMENT
PROPER INSTALLATION SEQUENCE (DBX24C)
Install one-piece log on two burner pins. See Figure 35.

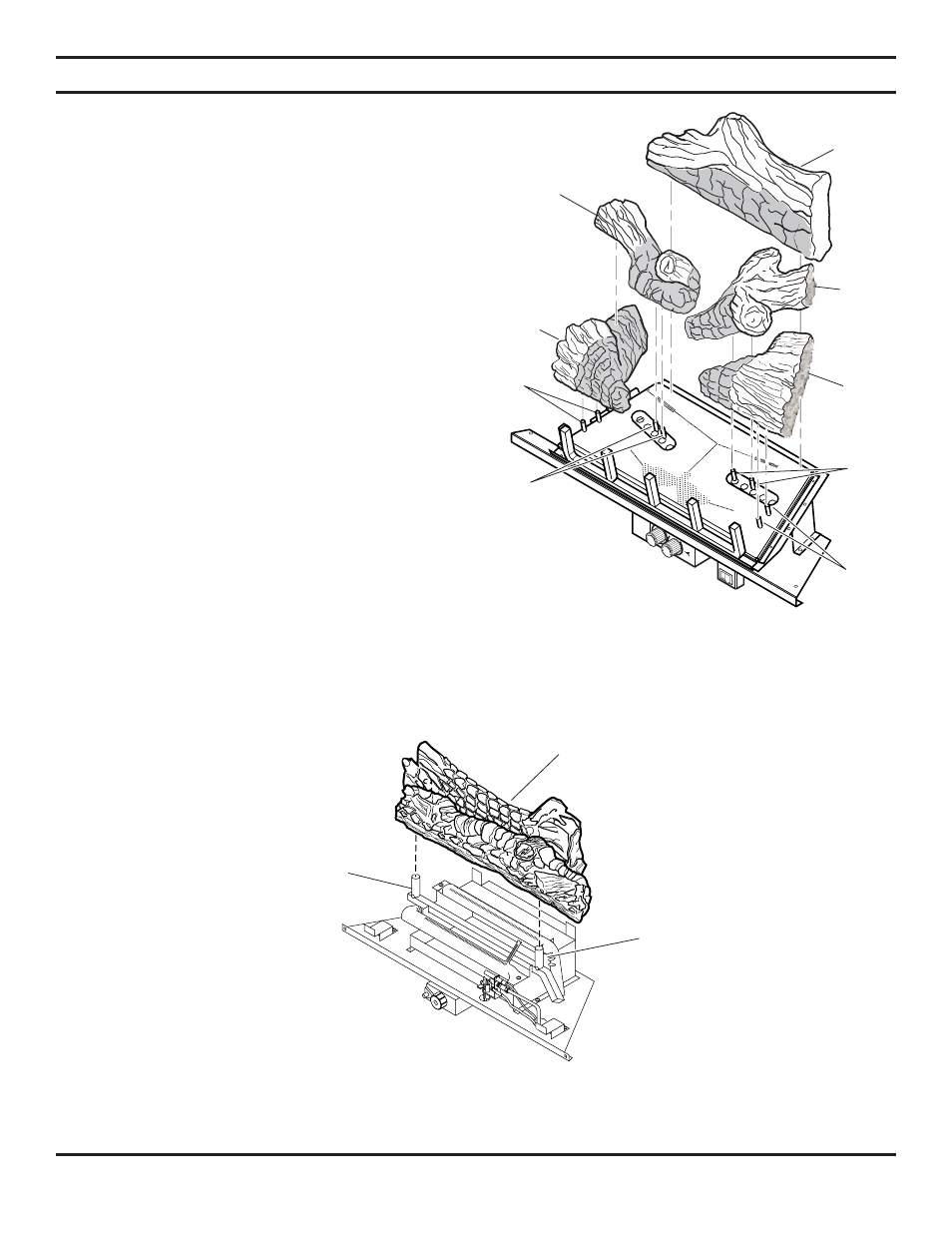

Figure 35 - Proper Sequence of Log Installation (DBX24C)
Burner Pin
Burner Pin
One-piece
Log
Figure 34 - Proper Sequence of Log Installation
(DFX32C)
PROPER INSTALLATION SEQUENCE (DFX32C)
See Figure 34.
1. Install front right log (#1) on two pins on right side of
burner.
2. Install left front log (#2) on two pins on left side of
burner.
3. Install back log (#3) on back of burner.
4. Install right middle log (#4) on two pins on burner. Rest
right end of right middle log on the right front log.
5. Install left middle log (#5) on two pins on burner. Rest
left end of left middle log on left front log.
Pins
Left
Front
Log #2
Left
Middle
Log #5
Right
Front
Log #1
Right
Middle
Log #4
Rear
Log #3
Pins
Pins
Pins
