Monessen Hearth Vent-Free Fireplace Systems DBX24C* - Manual (Page 13)

33D4047 13
GENERAL INSTALLATION INFORMATION
45°-angled
Corners
Back of Trim
Assembly
Top Trim Piece
Side Trim Pieces
90°-angled
Shim
90°-angled
Bracket
Outside Corner Slot
Outside
Corner Slot
Bracket
Screws

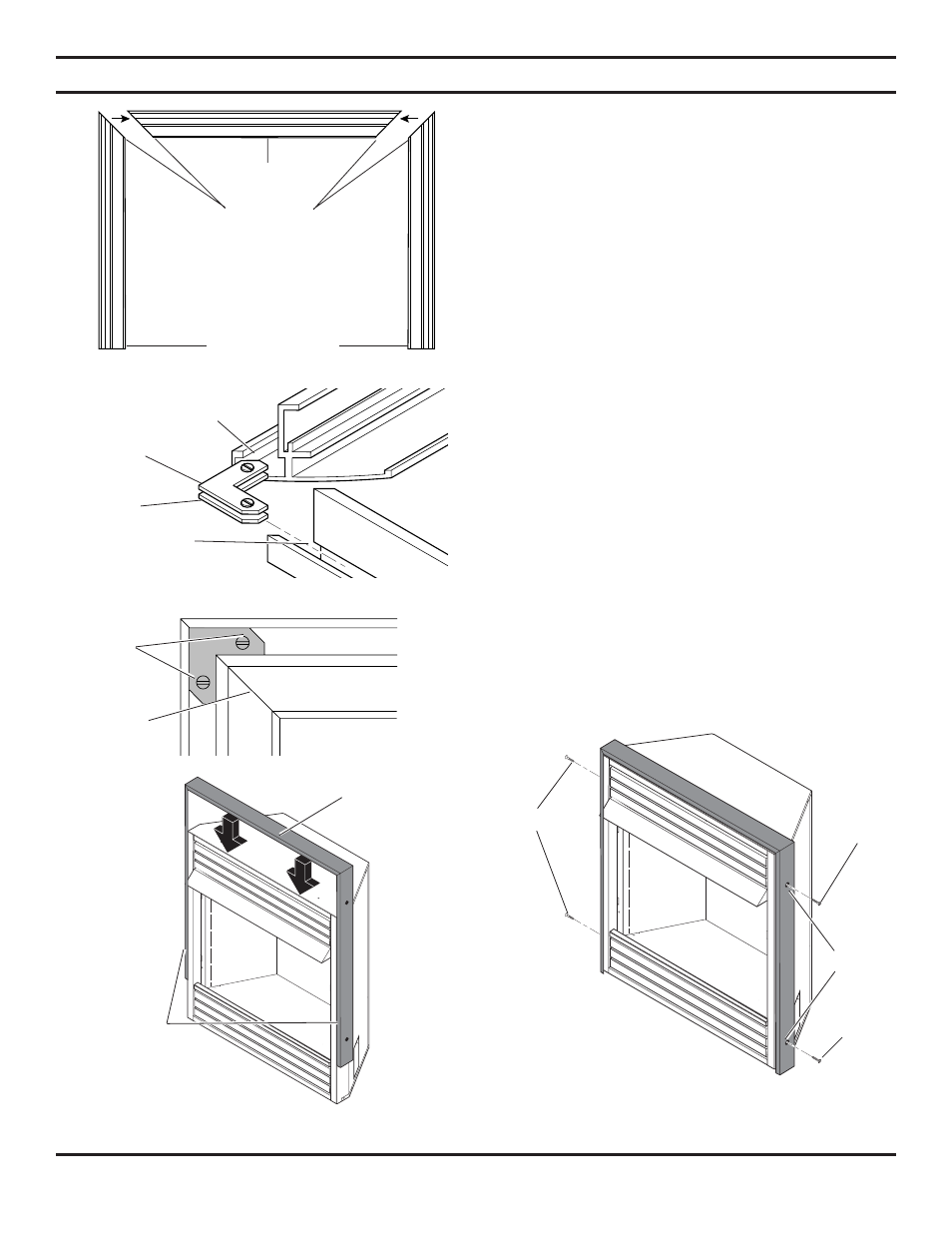

BLACK TRIM INSTALLATION (DFX32C)
1. Remove trim from protective packaging. Be careful not
to scratch the trim. Remove two (2) 90°-angled mounting
brackets and two (2) 90°-angled shims.
2. Lay trim face down on the floor. Line up the 45°-angled
corners of the top trim with the 45°-angled corners of the
side trims.
Note: Both ends of the top piece of trim are
mitered. See Figure 9.
3. Slide one (1) 90°-angled bracket (with attached screws)
and one (1) 90°-angled shim in the outside corner slot
where the top and side trims meet. See Figure 10.
4. Hold the corners together securely. Tighten screws on
bracket with flat head screwdriver. Make sure the corners
are flush and there are no spaces. Do not over tighten
screws.
See Figure 11.
5. Repeat for other side trim.
6. Slide assembled trim over the top and down the sides of
the fireplace. Flush trim with front of fireplace as shown
in Figure 12.
7. Align holes in assembled trim with holes in side of fire-
place. Using a Phillips screwdriver, attach trim with four
(4) screws provided — two for each side of fireplace.
Tighten snuggly. See Figure 13.
Figure 10 - Securing Corners Together
Figure 11 - Making Sure Corners Are Flush
Assembled Trim
No Spaces
where
Corners Join
Figure 13 - Securing Trim to Heater with Four (4)
Screws Provided
Screws
Screw
Screw
Figure 12 - Sliding Assembled Trim Over the Top
of the Heater
Figure 9 - Lining Up Corners of Trim Kit
Trim Flushed
with Front of
Fireplace
Holes
