Monessen Hearth Vent-Free Fireplace Systems DBX24C* - Manual (Page 12)

12 33D4047
GENERAL INSTALLATION INFORMATION
BLACK TRIM INSTALLATION (DFX24C/DBX24C)
1. Remove black trim from protective packaging. Remove four (4) black screws and 2 (two) 90°-angle trim
brackets from owner’s manual packaging.
2. Lay trim on fl oor and match corners of side trims to top trim (See Figure 6).
3. Use one 90°-angle trim bracket to join the corner of one piece of side trim to the corner of the top trim piece (See Figure
6). A rubber hammer or handle of a claw hammer will help secure the corners.
4. Repeat for other side.
NOTE: If you do not attach the trim at the correct corners, use a hammer and screwdriver to tap on
the one end of the 90°-angle bracket. This will separate the two pieces of trim (See Figure 8).
5. Place assembled black trim on front of heater. Using four (4) black screws, secure black trim to sides of heater (See
Figure 8).

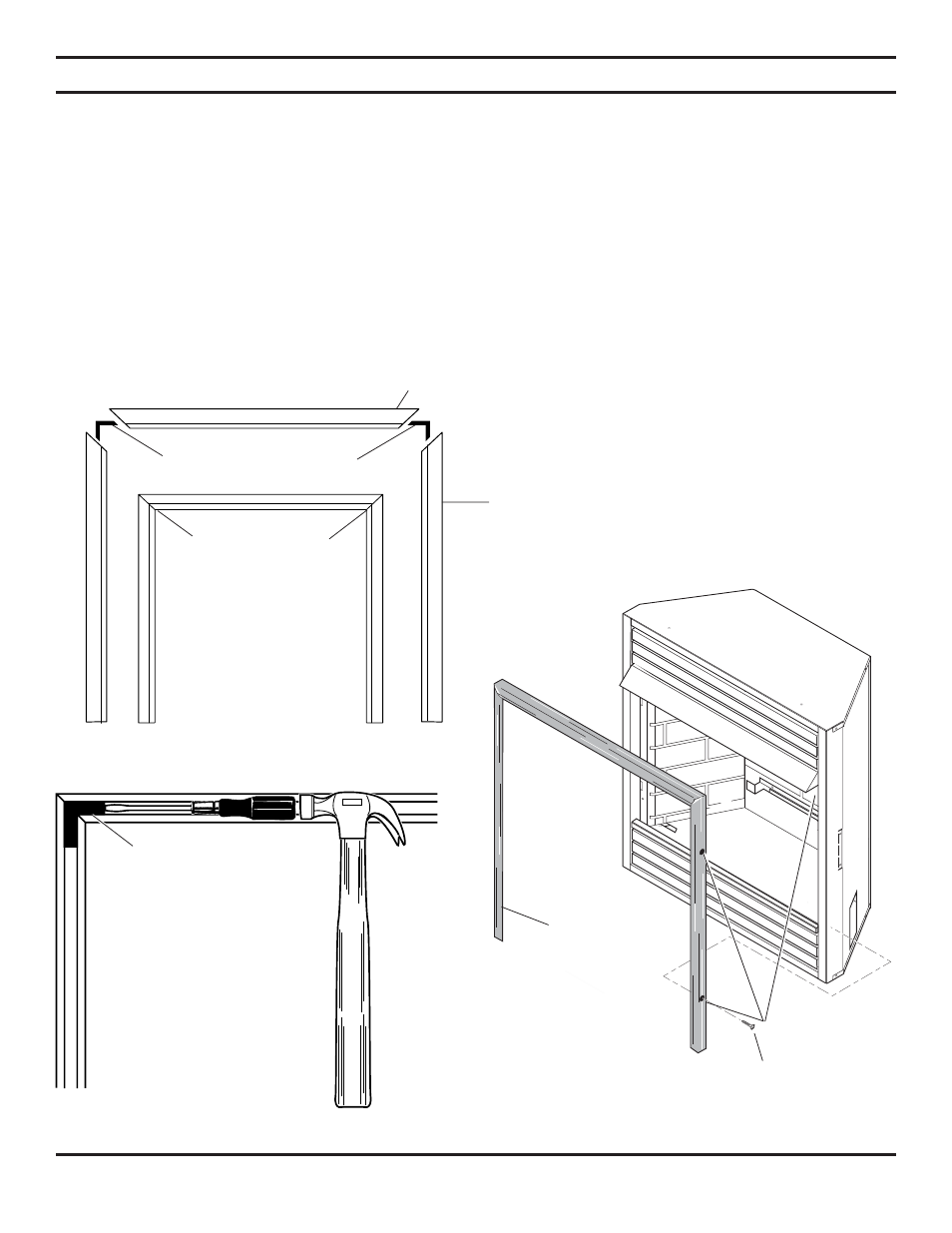

Figure 6 - Matching and Joining Corners of Black
Trim with 90°-angle Trim Brackets
Figure 7 - Removing the 90°-angled Trim Bracket
Figure 8 - Attaching Assembled Black
Trim to Heater
Matched Corners
90°-angle Trim Brackets
Assembled
Black Trim
Black Screw
Holes for Black
Screws
Side Trim
Top Trim
90°-angle Trim Bracket
