REMOVING SCREEN
1. Remove bottom louver. See Figure 14.
2. Removing fireplace screen frame panel by pushing screen frame panel up and out. See Figure 14.
GENERAL INSTALLATION INFORMATION
Figure 15 - Canopy Installation
INSTALLING CANOPY
1. Push louvers up and out to remove top louver assembly.
2. Align the black canopy with the holes in the top frame assembly. See Figure 15.
3. Install the three (3) screws (in owner’s manual packaging) which attach the canopy to the top frame assembly. See
Figure 15.
4. Tighten all screws. Make sure the canopy is level and secure. Install top louver assembly.

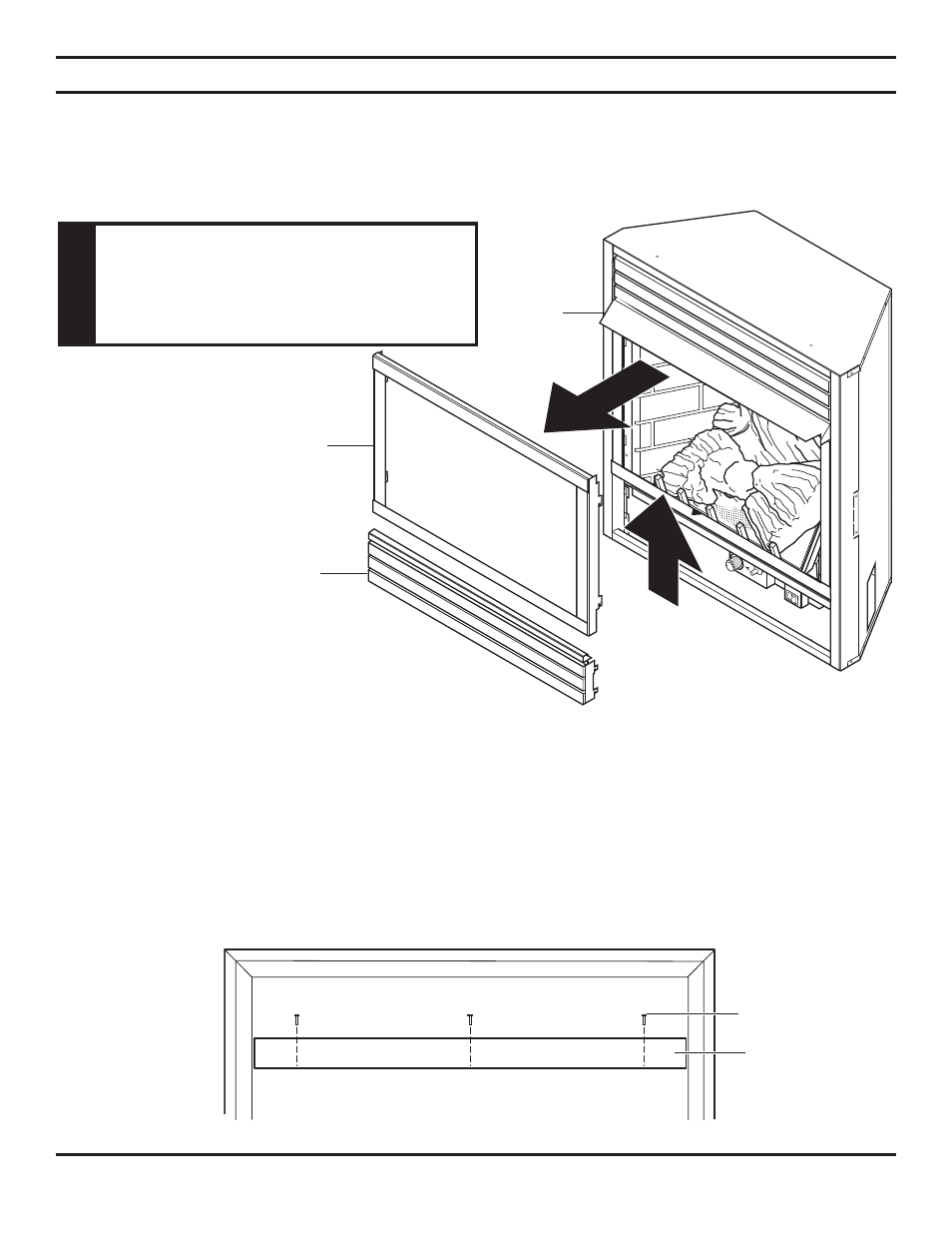

Figure 14 - Removing Fireplace Screen Frame Panel
NOTE: Fireplace screen must be removed to access log box and to install canopy.
Canopy
Fireplace
Screen
Canopy
Screws
W
ARNING
Do not operate the unit without the
screen frame panel and canopy
installed.
Louver
