33D4047 11
GENERAL INSTALLATION INFORMATION
INSTALLING OPTIONAL FIREBRICK PANELS
1. Remove optional firebrick panels from packaging. Check to See that you have the following:
• 3 firebrick panels • two (2) retainer brackets • two (2) black screws
If any part or parts are missing, contact dealer where you bought fireplace.
2. Turn off fireplace and allow to cool.
3. Remove fi replace screen (See Figure 14, page 14) and logs.
4. Place rear firebrick panel on back wall of firebox. Set bottom of panel behind the bracket tabs of the grate. See
Figure 4.
5. Place one of the side firebrick panels in cabinet. Line up the hole in the retainer clip with the hole inside the firebox.
Using Phillips screwdriver, attach the retainer bracket to inside of firebox. See Figure 5.
6. Repeat step five for the other firebrick side panel.

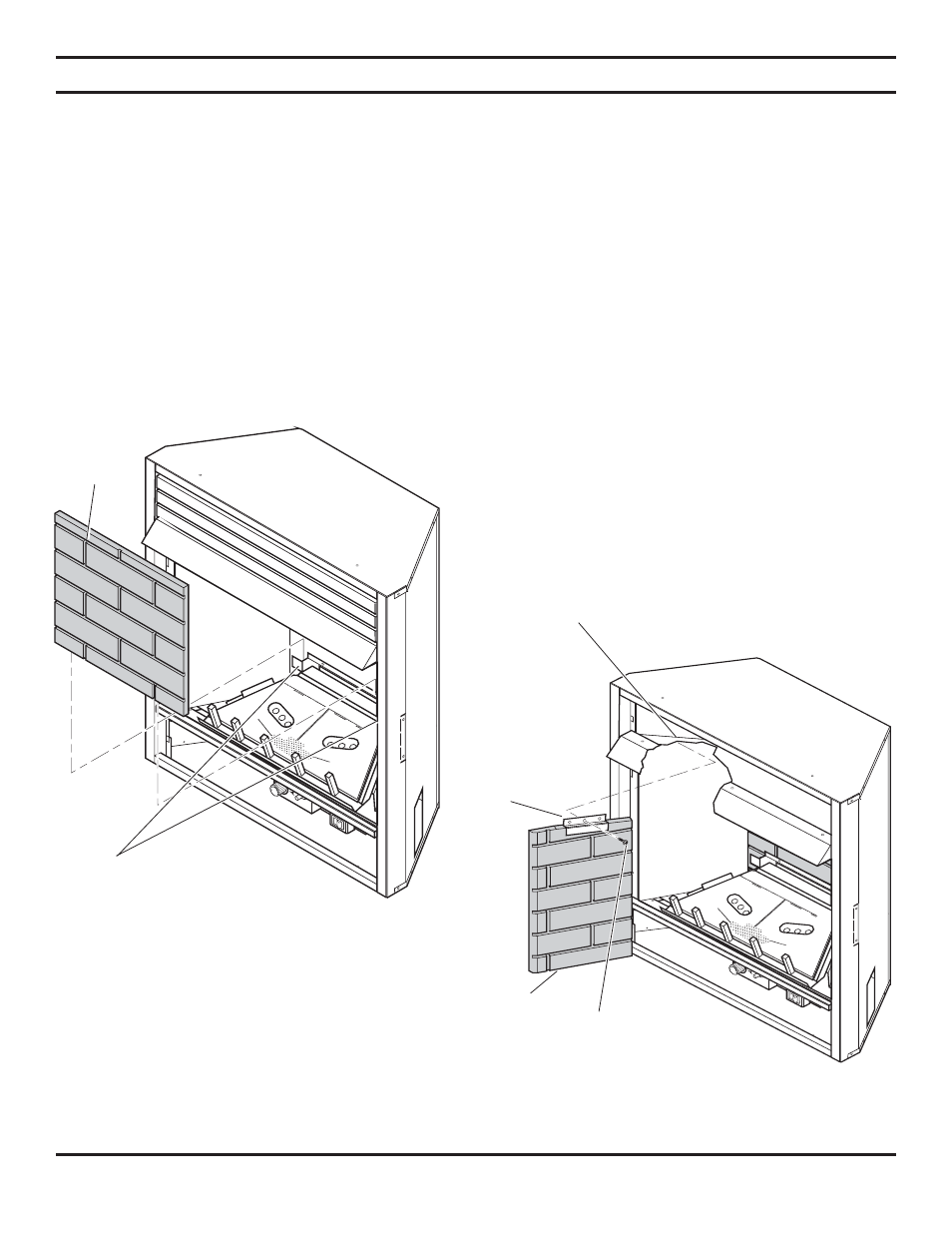

Figure 4 - Installing Back Firebrick Panel
Figure 5 - Installing Side Firebrick Panel
Bracket
Tabs
Rear
Firebrick
Panel
Retainer
Clip
Side Firebrick
Panel Screw
Hole
