LOG PLACEMENT
Before you begin — This unit is supplied with a set of three ceramic fiber logs. Do not handle these logs with your bare
hands. Always wear gloves to prevent skin irritation from ceramic fibers. After handling logs, wash your hands gently with
soap and water to remove any traces of fibers.
PROPER INSTALLATION SEQUENCE (DFX24C)
See Figure 33.
1. Install the rear log (#3) on back of burner.
2. Install the right log (#1) on burner pins on right side of burner.
3. Install the left log (#2) on burner pins on left side of burner.

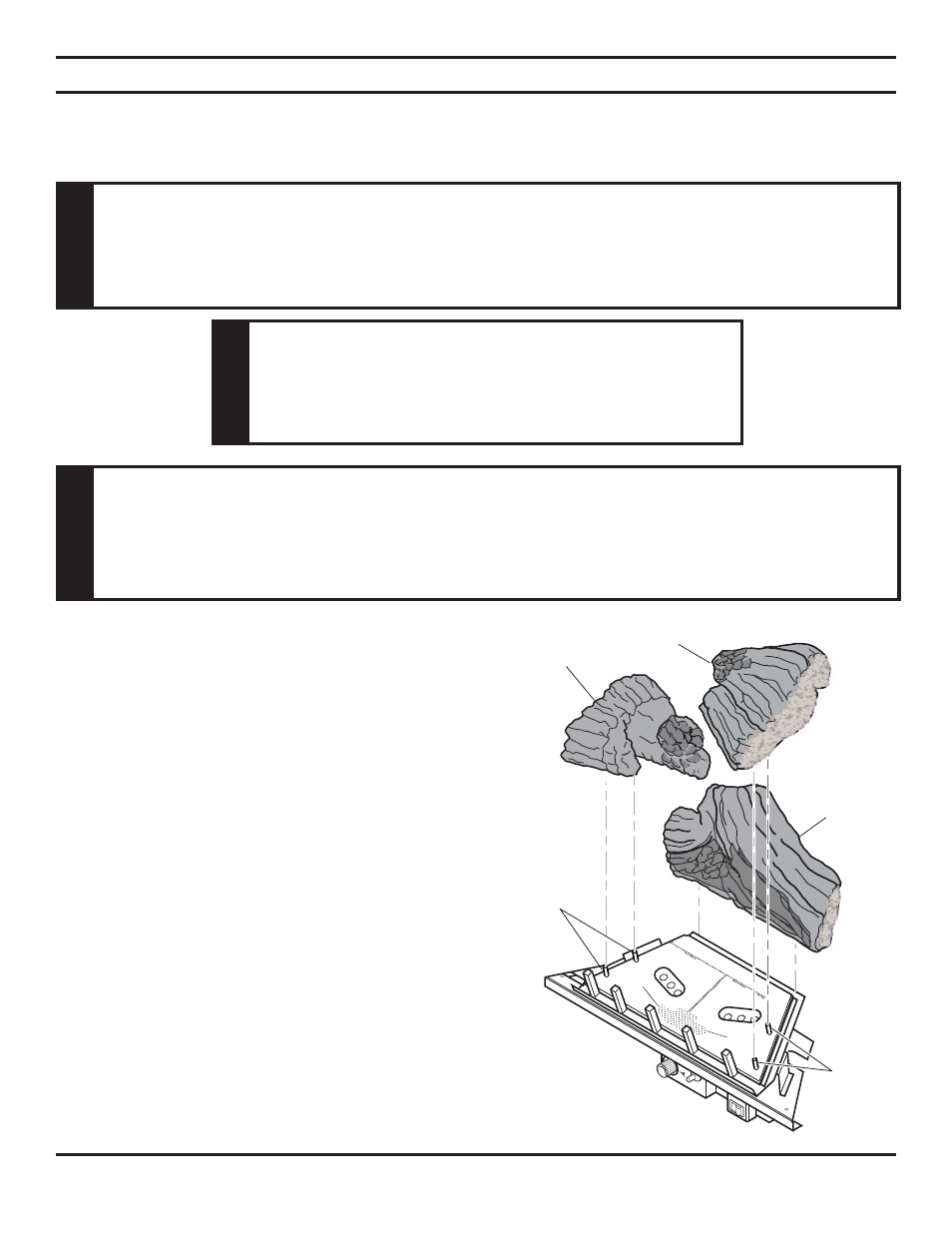

Figure 33 - Proper Sequence of Log Installation
(DFX24C)
W
ARNING
The positioning of the logs is critical to the safe and clean operation of this heater.
Sooting and other problems may result if the logs are not properly and fi rmly positioned
in the appliance. Never add additional logs or embellishments such as pine cones,
vermiculite or rock wool to the heater.
CAUTION
DO NOT sprinkle volcanic rock on the logs or around the pilot or the main burner. This
may cause sooting. Only place volcanic rock on the fl oor of the fi replace.
During initial operation of the new heater, burning logs will give off a paper burning
smell and orange fl ames will be present. Simply open the windows for a few hours to
vent the odor.
W
A
RNING
Failure to position the parts in accordance with
these diagrams or failure to use only parts
specifi cally approved with this heater may result
in property damage or personal injury.
Rear Log
#3
Left Log
#2
Right Log
#1
Burner Pins
Burner
Pins
