WDR-516S Installation Guide
50
Rev 1.0(93/11)
Appendix #2 Video Input
Video type / impedance setup switch
It’s possible to set up Impedance of Video input line.

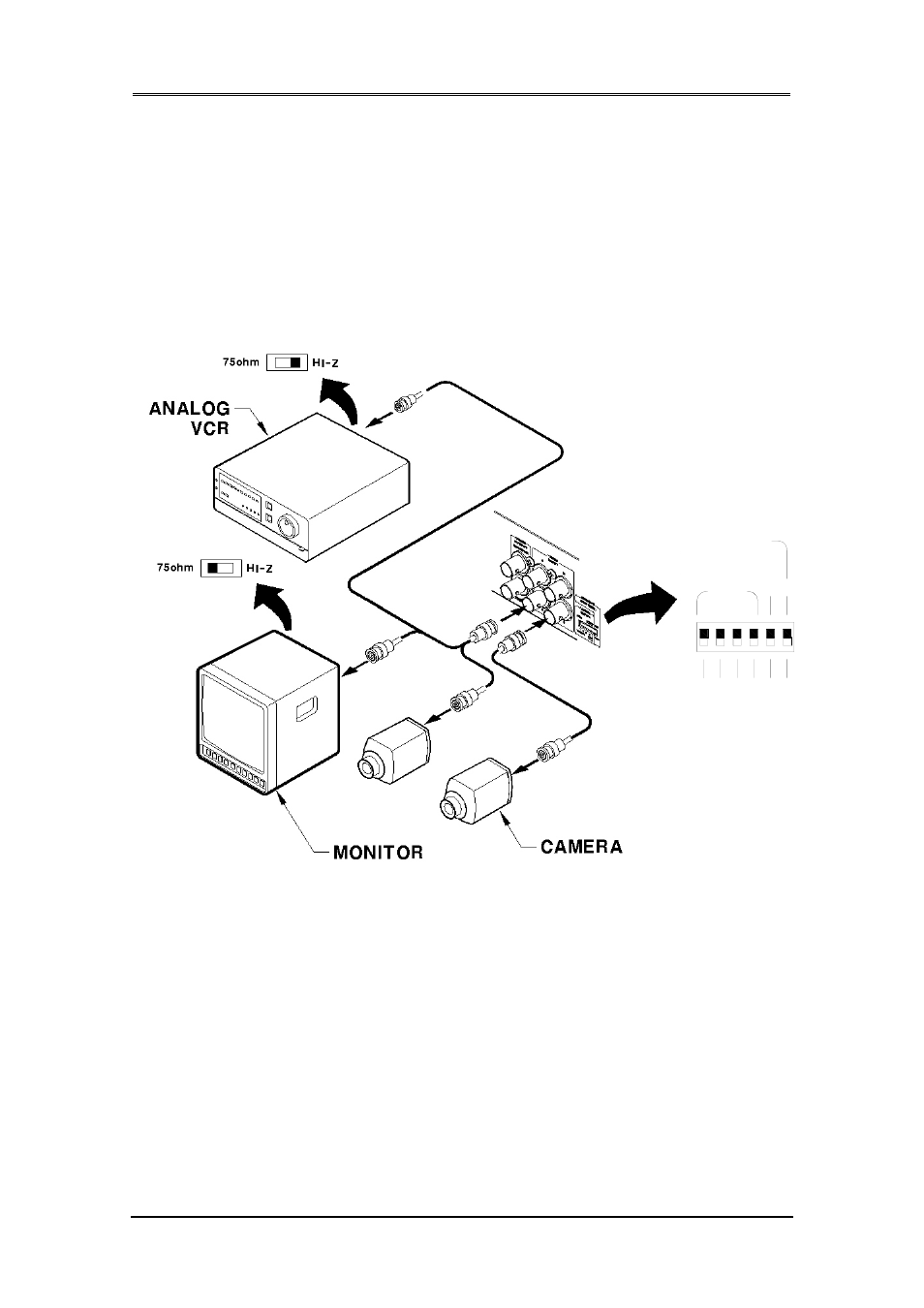

When one Video output is connected to several Input as below, the impedance of one input should be 75
ohm.
ON
N
Hi-Z
1 2 3
OFF
4 P
CONTROL
REMOTE
