WDR-516S Installation Guide 46 Rev 1.0(93/11)
The dip switch should be set at ‘MASTER’ position for the first installed or built-in HDD.
Additional HDD should be set as ‘SLAVE.’ Identical dip switch setting may cause system conflict
or mal-function.

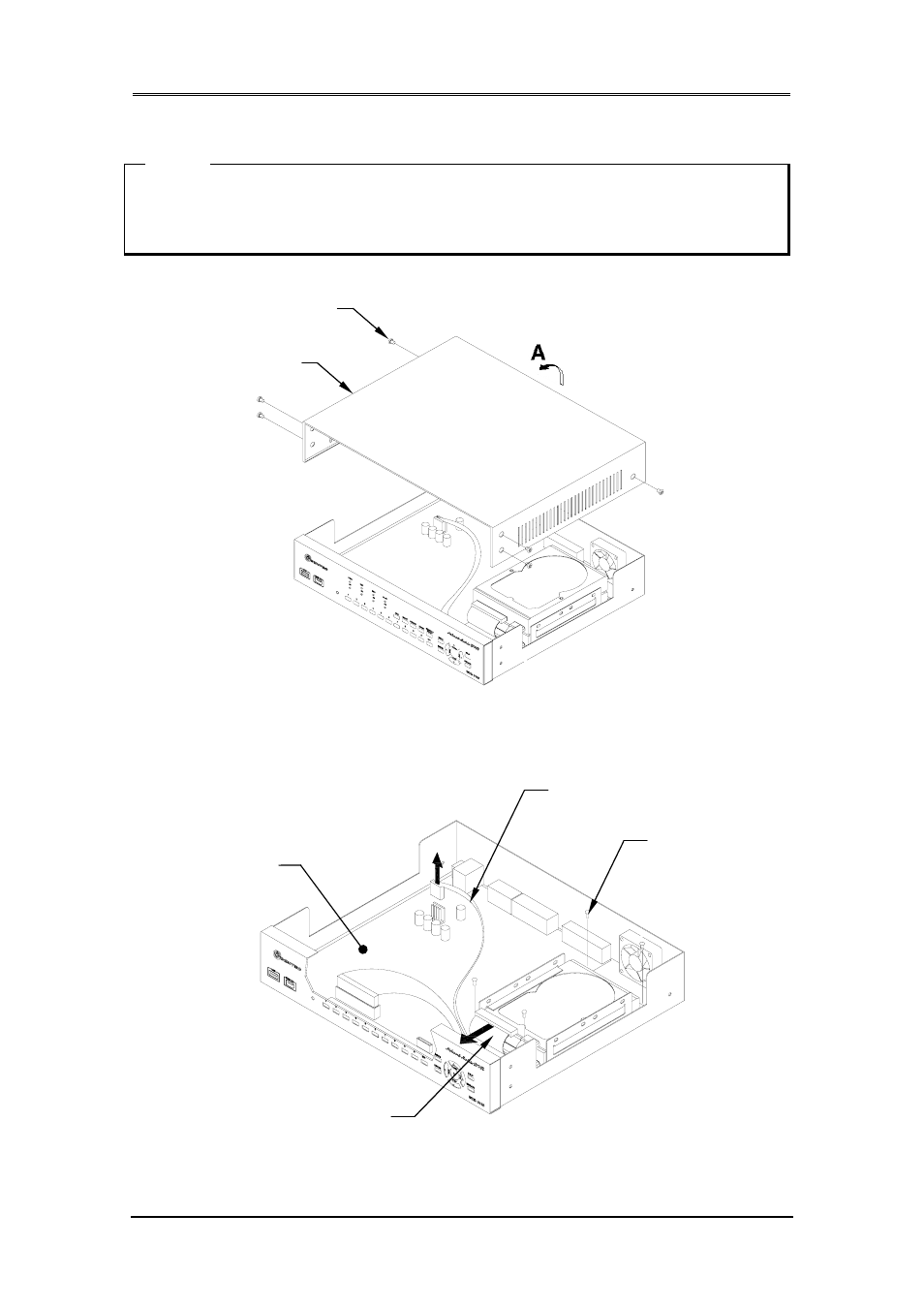

(3) Remove the 6 screws as illustrated below and pull up the cover from the rear part to open
(4) Take out power and data cable of HDD from Main PCB ASS’Y. Remove 4 HDD Bracket screws and
take out HDD ASS’Y.
MAIN PCB
ASS’Y
HDD POWER
CABLE
SCREW
4EA
HDD CABLE
SCREW
6EA
TOP
COVER
