WDR-516S Installation Guide 29 Rev 1.0(93/11)
10. Connecting & Configuring Relay Out

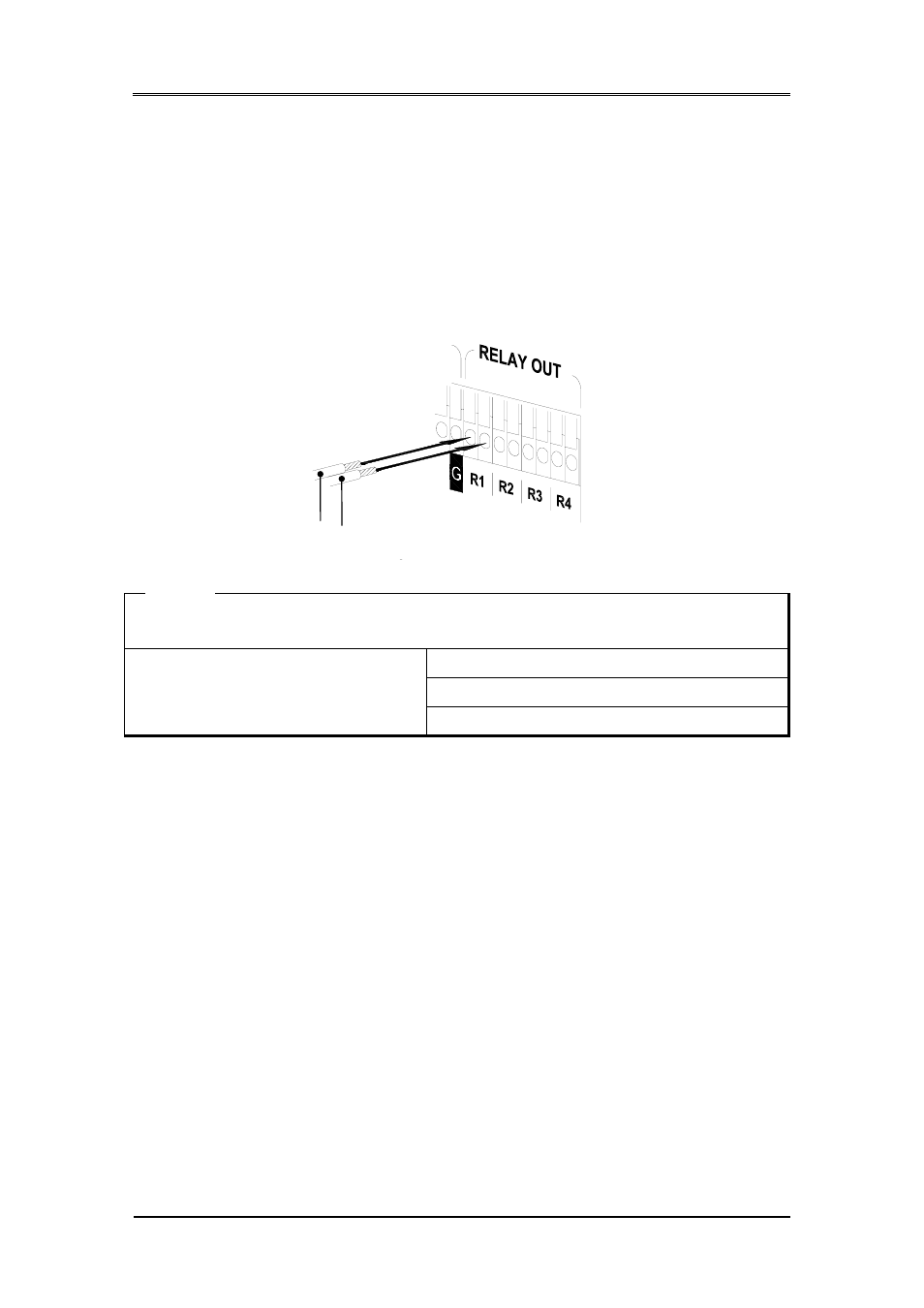

10.1. Connecting Relay Out
WDR-516S has total four ports of Relay Out.
To connect a device to “R1,” connect the wires to two “R1”s.
The rated voltage and current of Relay Out are as follows. Do not exceed the rated values.
24V DC, 1.25A, 30W
125V DC, 0.24A, 30W Maximum Switching Capacity
125V AC, 0.5A, 62.5VA
R1
R1
