WDR-516S Installation Guide
39
Rev 1.0(93/11)

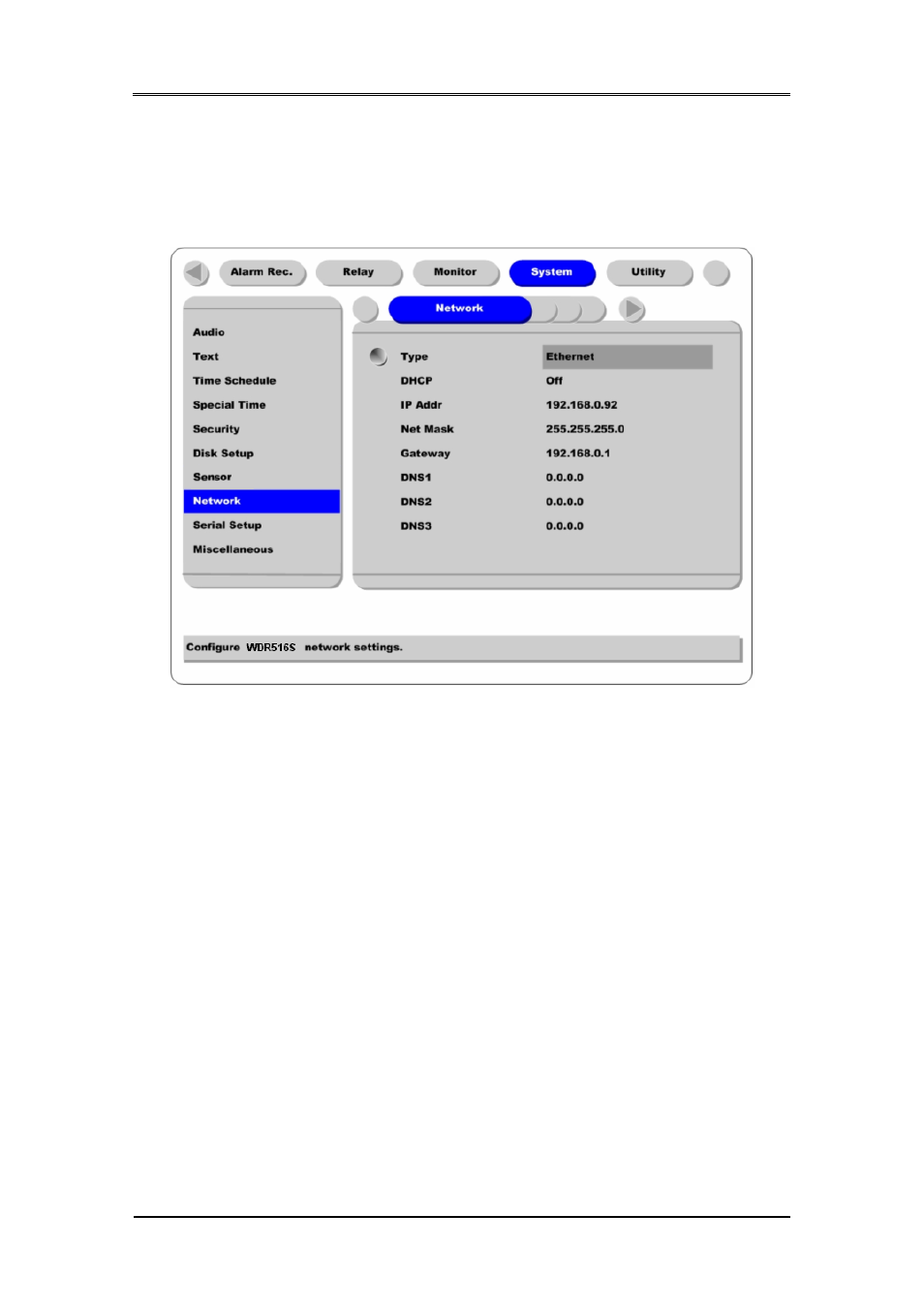

15.2. Configuring WDR-516S’s Network Information
The following description is on based on Ethernet connection. For more detailed information on the
Network Settings Page, please refer to “WDR-516S OSD User’s Guide”.
(1) Press [MENU] button.
(2) Select “System” using the [◄ or ►] buttons and press [ENTER].
(3) Select “Network” using the [▲/▼] buttons and press [ENTER].
(4) Select “IP Addr” using the [▲/▼] buttons and press [ENTER].
(5) Press [EXIT] button after entering IP address in the dialogue box.
(6) Select “Net Mask” using the [▲/▼] buttons and press [ENTER].
(7) Press [EXIT] button after entering Net Mask in the dialogue box.
(8) Select “Gateway” using the [▲/▼] buttons and press [ENTER].
(9) Press [EXIT] button after entering Gateway in the dialogue box.
(10) Select “DNS” using the [▲/▼] buttons and press [ENTER].
(11) Press [EXIT] button after entering DNS in the dialogue box.
(12) Press [EXIT] button to exit the page.
