WDR-516S Installation Guide 34 Rev 1.0(93/11)
Wire Handling

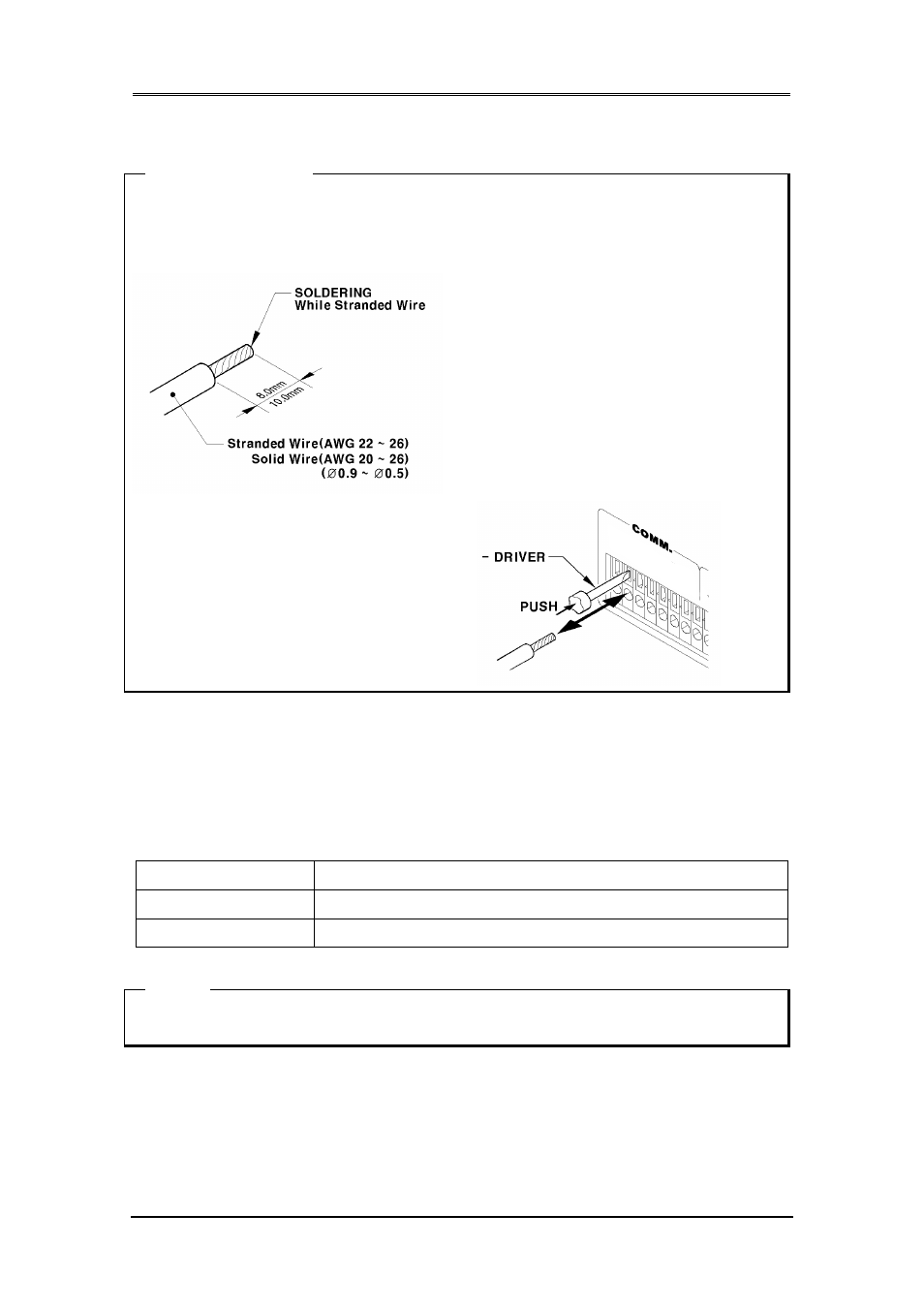

Trimming Wire
When connecting a wire to a terminal block, follow the instructions below. Note the different types of
wire that can be used.
Stranded Wire: Peel off the wiring cover
8~10mm and solder it. Wire gage should be
AWG 22 ~ 26.
Solid Wire: Peel off the wiring cover 8~10mm
and solder it. Wire gage should be AWG 20 ~
26.
Inserting & removing wire
To insert the wire, use a screwdriver as
shown in the diagram to the right.
13. Connecting USB Device
USB port can be used to copy up to 1 minute of images to a USB Flash memory disk. When connecting
USB device, do not exceed the rated values of USB device.
USB Spec. Ver 1.1 (Max 12M bps)
Available Device USB Memory Stick,
Output Voltage/Current Max. 200mA per DC 5V / Port
The disk should be formatted with FAT32 type.
