1-2 Connecting to a LAN
Connecting.the.cables
In order to use the network features you must connect your machine to your LAN
and adjust the appropriate settings.
To connect the machine to the LAN, a 10BASE-T or 100BASE-TX LAN cable (Cat-
egory 5) is required.
NOTE: The LAN cable is not included with this product.
1
Turn your machine off and unplug the power cord.
2
Plug one end of the LAN cable into the LAN connector on the left side of the
machine.

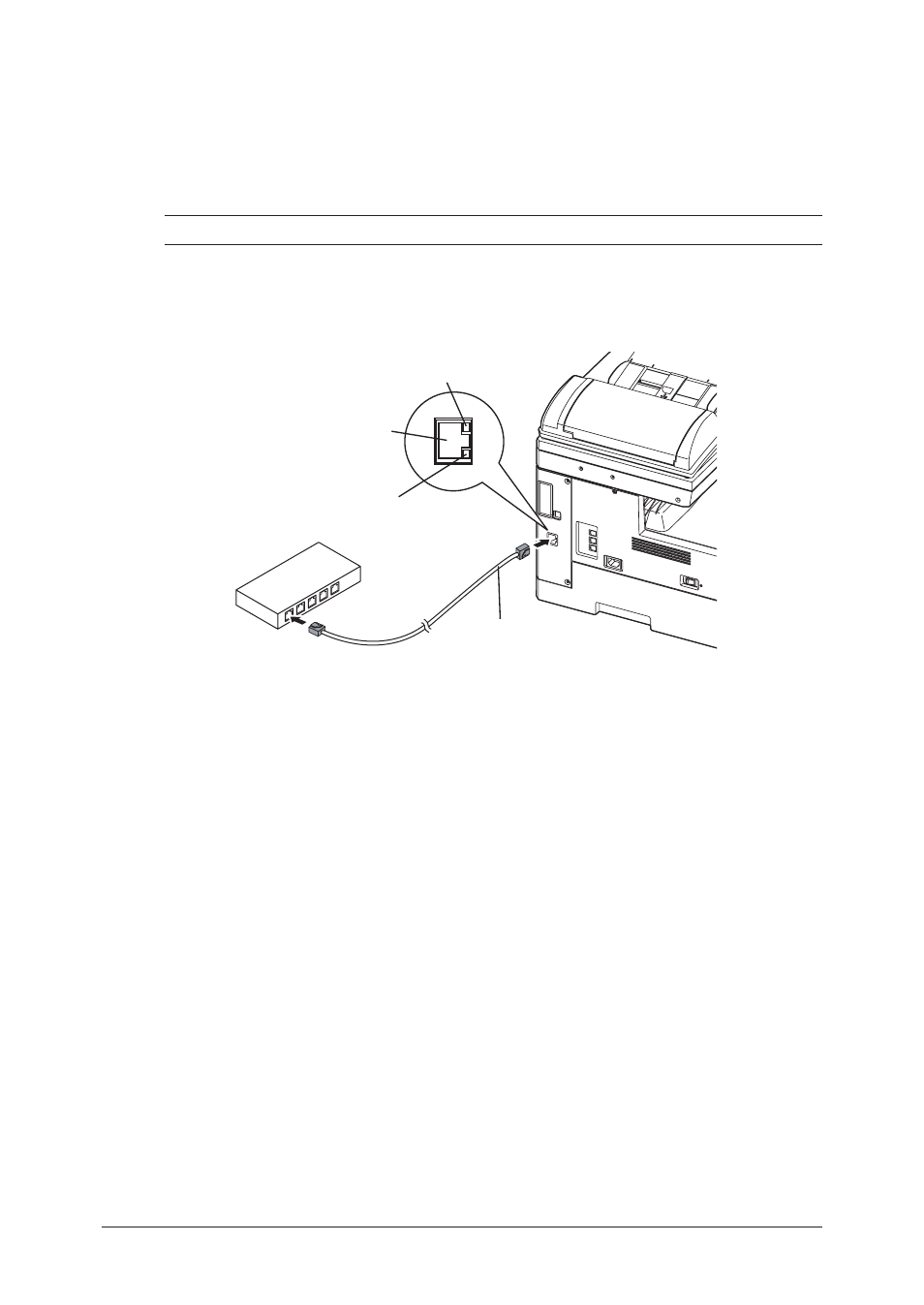

LINE
PHONE1
PHONE2
LINK lamp:
Illuminates when connected to the LAN.
LAN Connector
LAN cable:
10Base-T/100Base-TX cable
RJ-45 connector
ACTIVITY lamp:
Blinks when there is data trafic
on the LAN.
Connect to the Ethernet hub.
3
Plug the other end of the LAN cable into the 10Base-T/100Base-TX Ethernet
hub.
4
Plug the power cord into the wall outlet and turn your machine on.
