INSTRUCTIONS FOR USE
This manual supplies instructional, maintenance and safety information
for model MD0450 22 unless specified otherwise. The model number is
listed on the label.

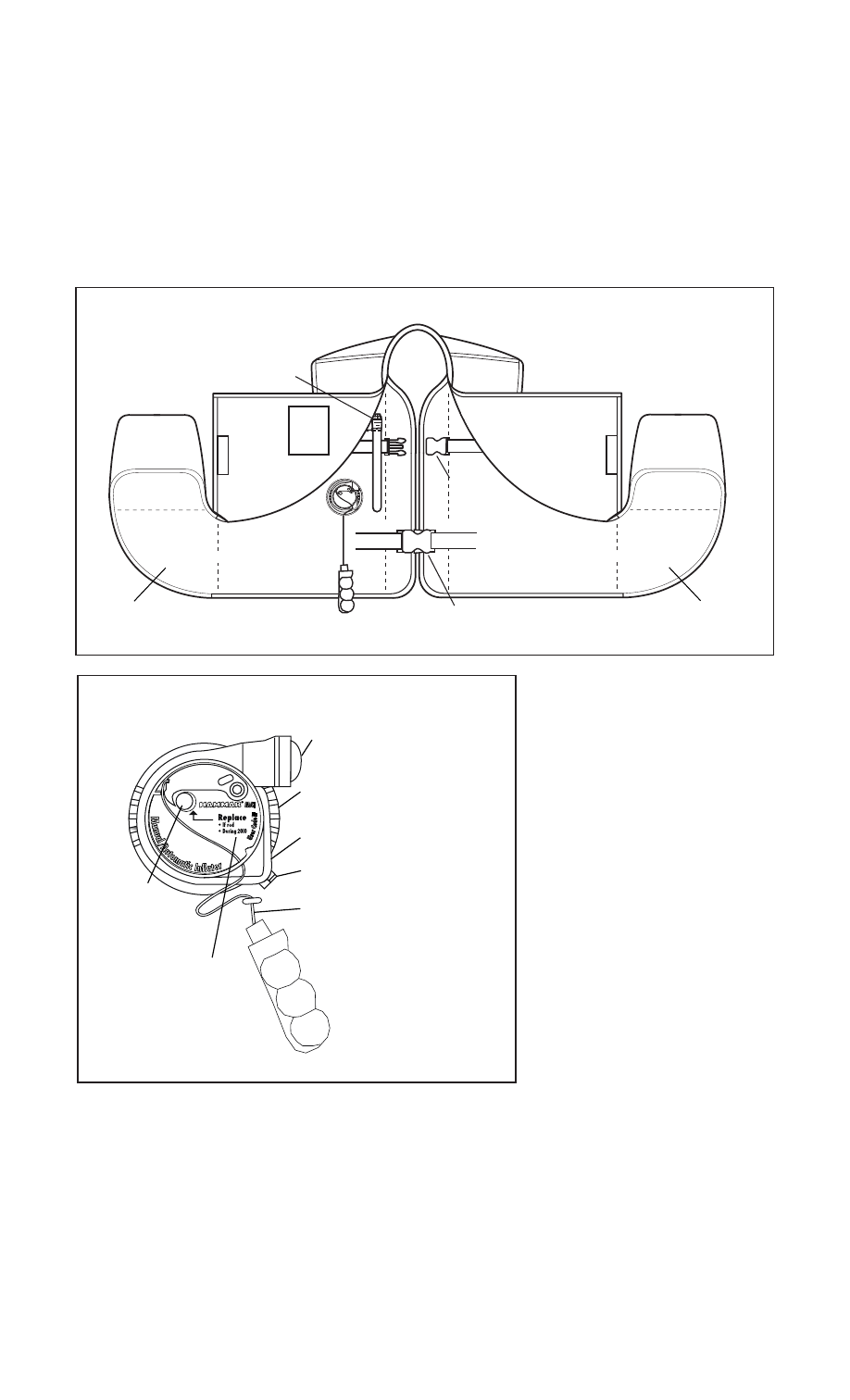

FOLD #3
FOLD #1
FOLD #2
Right Lobe
FOLD #3
FOLD #2
FOLD #1
Left Lobe
Oral Inflator
Window
Beaded
Handle
Front Buckle
Hydrostatic
Inflator
MD0450 Unpacked
Cover Panel
Chest Strap
Waist Belt
Chest
Buckle Velcro Tab
FIGURE 1
Single
Point
Status
Indicator
Water Inlet Valve
Lanyard
Beaded
Handle
Hydrostatic Inflator Cap
Yellow Inflator Cap
Cap/Locking Ring
Tabs
Black Locking Ring
Inflator
Body
Expiry
Date
FIGURE 2
Component Inspection Instructions
1) Examine the single point indicator through the window panel. Ensure
the single point indicator is green. If the single point indicator is red,
the mechanism has been fired or is incorrectly fitted (Fig. 2). See
3 MUSTANG SURVIVAL
