lobe, it should sit under the cover.
14) Repeat steps 3-12 for the left lobe (as it is worn). Note that the left
lobe does not have an inflator or indicator window.

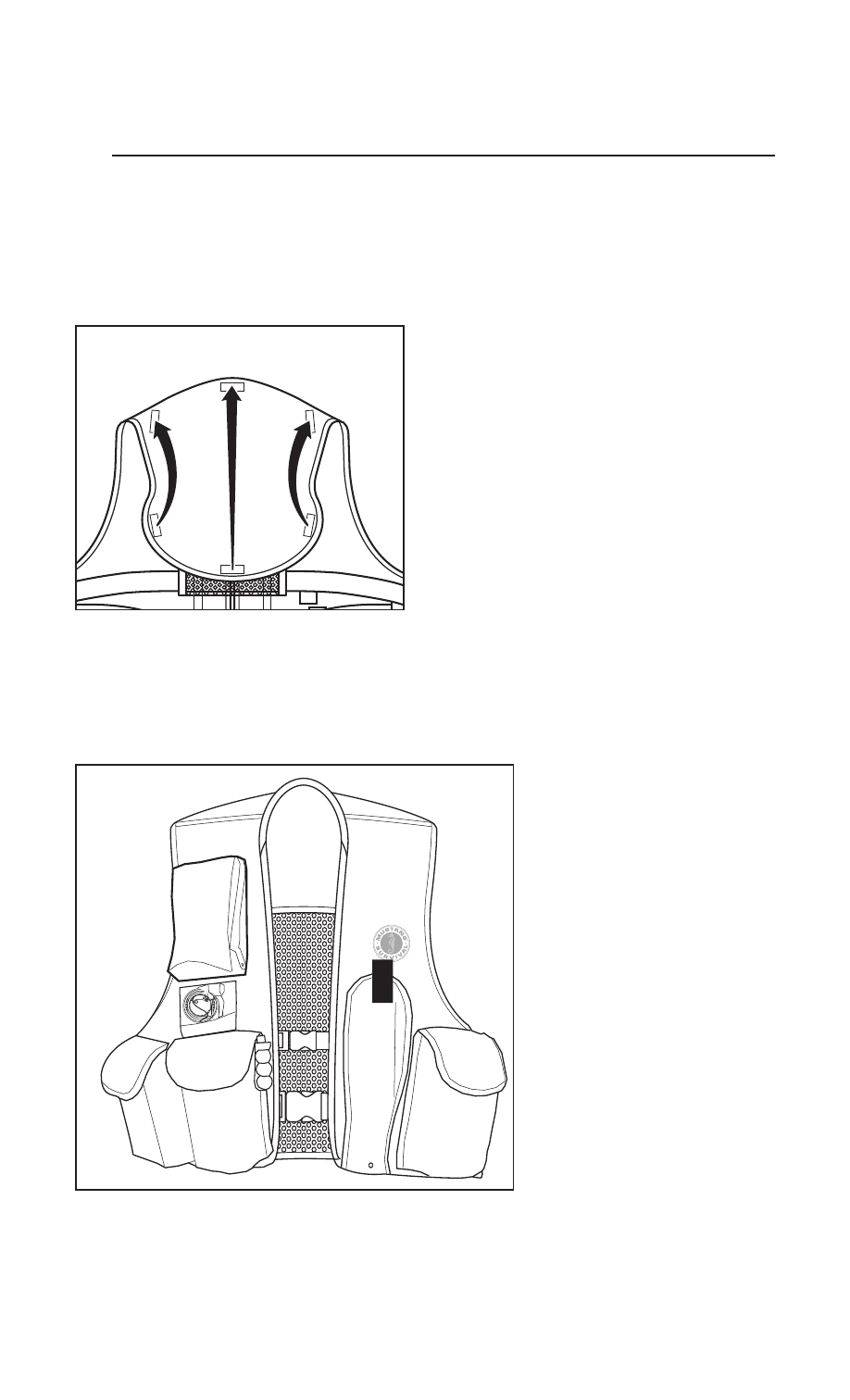

15) Turn over the Inflatable Vest with LIFT TM and fold the back flap up
and fasten the three (3) Velcro TM tabs (Fig. 38).
Right Lobe Left Lobe
FIGURE 38
16) Use the adjustable waist belt to size to fit. When complete, the
garment should appear as shown (Fig. 39) and be secure for use or
storage.
FIGURE 39
