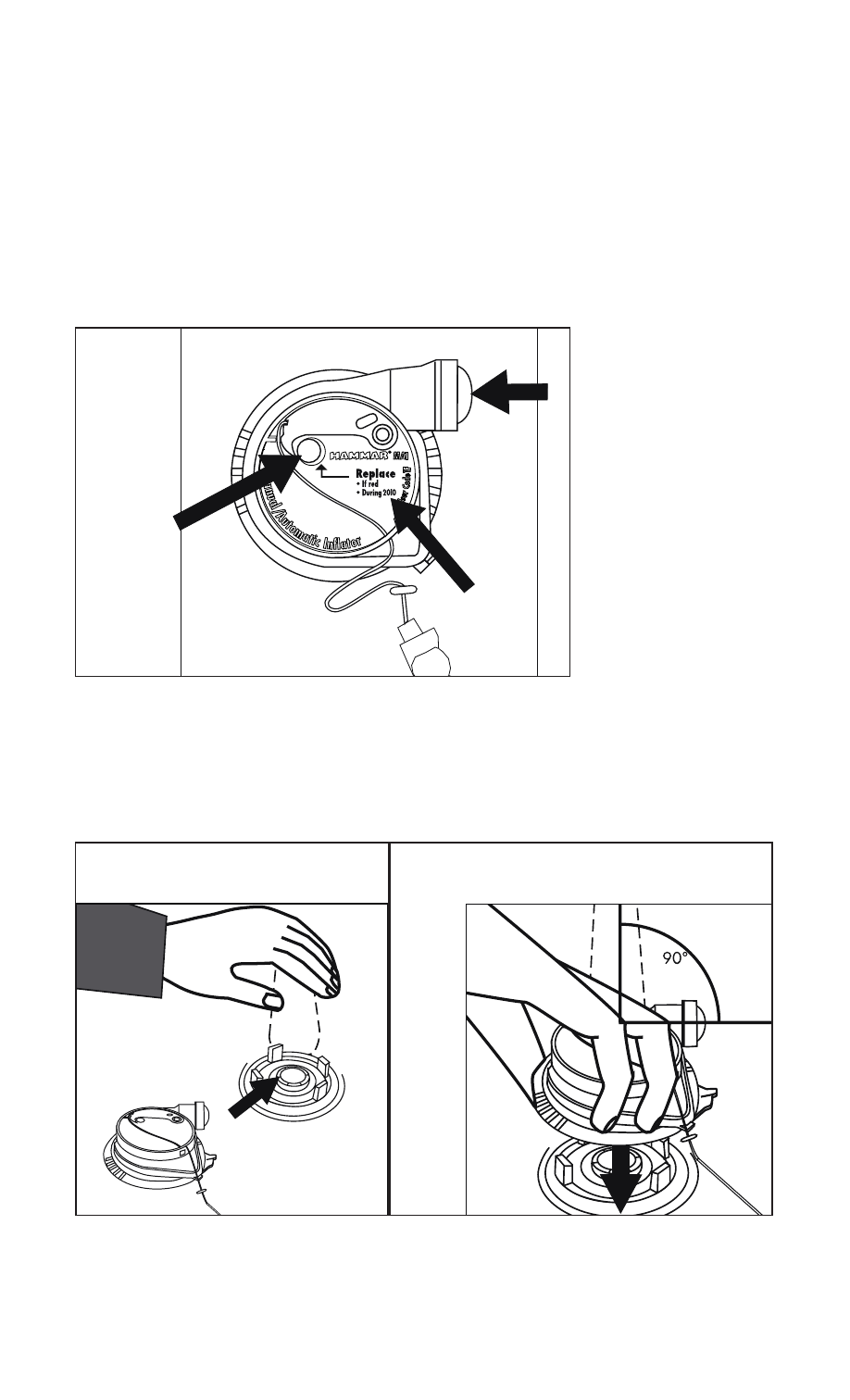

7) Now check the new manual/automatic cap as follows (Fig. 18):
1. Is the single point status indicator showing green?
2. Is the expiry day OK?
If YES is the answer to both questions, then proceed as follows. If the
answer is NO to either question, get a new cap.
Single
Point
Indicator
Water
Inlet
Valve
Expiry
FIGURE 18
8) Hold the CO
2
cylinder through the fabric of the Inflatable Vest with
LIFT
TM
(Fig. 19). Position the replacement cap with the water inlet
valve pointing to the right and press firmly onto the inflator body
and sealing ring (Fig. 20).
FIGURE 19
FIGURE 20
Inflatable Vest
with LIFT
TM
