6 Hooking Up The TV/VCR
ANT.
ANT.

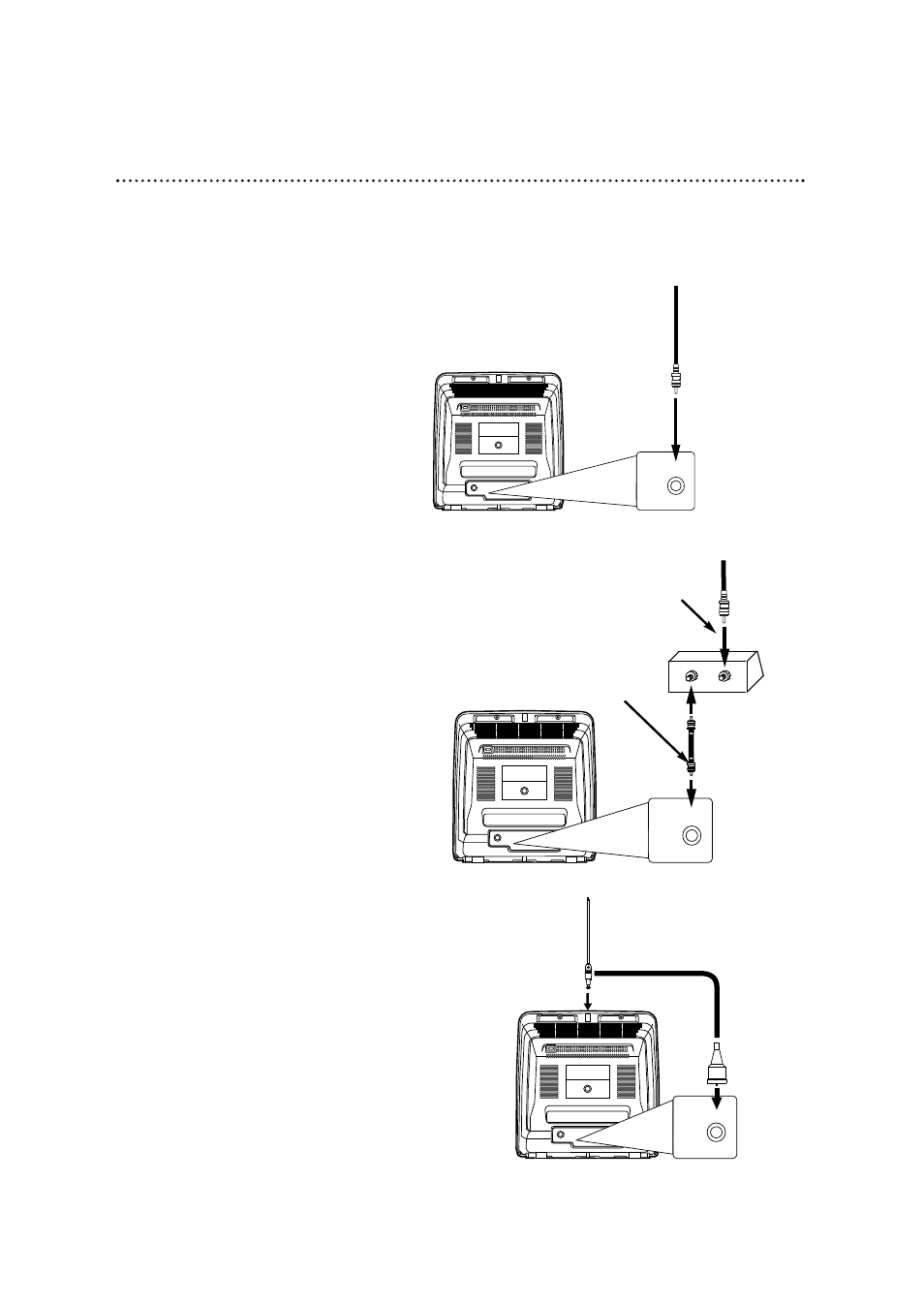

Hooking Up Your TV/VCR
With a Cable Signal or
Outdoor Antenna
IN OUT
ANT.
ANT.
Connect an RF coaxial cable (75-
ohm, not supplied) to the OUT Jack
on the Cable Box and to the
ANT(enna) Jack on the TV/VCR.
Connect a Cable signal
or an antenna to the
ANT(enna) Jack.
Hooking Up Your TV/VCR
With a Cable Box
To view any channel, set the
TV/VCR to the Cable Box output
channel (channel 03 or 04). Then,
select channels at the Cable Box.
1
Hook up your TV/VCR using one of the connections shown.
A.
B.
ANT.
ANT.
Rod Antenna
(not supplied)
Hooking Up Your TV/VCR
With an Indoor Antenna
To install a rod antenna (not sup-
plied), push the stem of the antenna
into the antenna hole on the top of
the TV/VCR. Connect the antenna
wire to the ANT(enna) Jack on the
back of the TV/VCR as shown.
Extend the antenna and adjust its
length, direction, and angle for the
clearest picture.
C.
Connect the Cable signal to
the IN Jack on the Cable Box.
