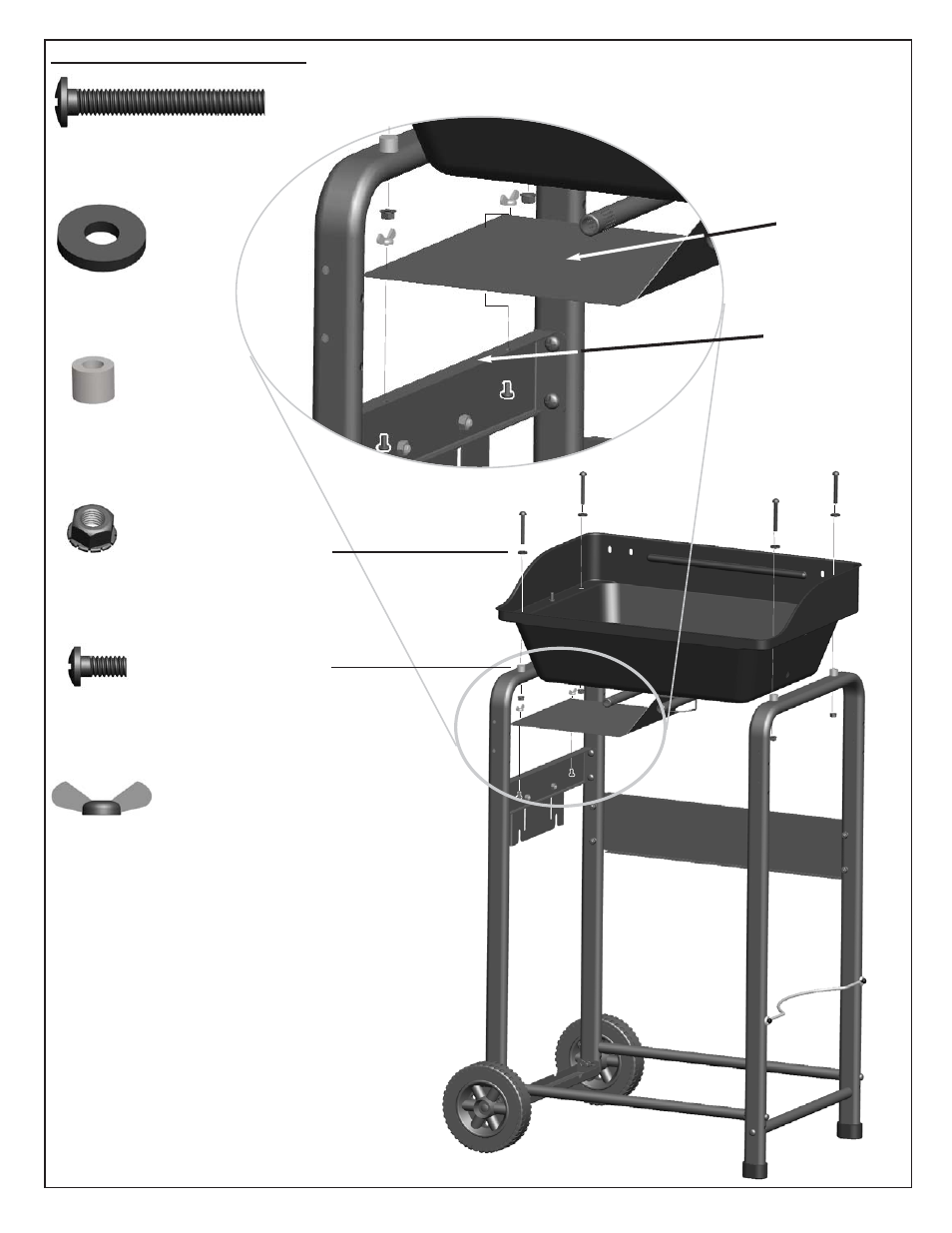

STEP 5 - Attach Bowl to Cart
8
•Assemble bowl to cart using 4 M6 x
45mm Screws, 4 Fiber Washers, 4
Spacers, and 4 M6 Nuts.
•Make sure heat shield is resting on top of
cylinder slide bracket.
•Secure heat shield to cylinder slide
bracket using 2 M4 x 10mm Screws and
Wing Nuts.
Screw
M6 x 45mm
4 pcs
Fiber Washer
4 pcs
Bowl
Spacer
4 pcs
Nut
M6
4 pcs
Cylinder Slide
Bracket
Heat
Shield
Screw
M4 x 10mm
2 pcs
Wing Nut
M4
2 pcs
Fiber Washer
Bowl Spacer
