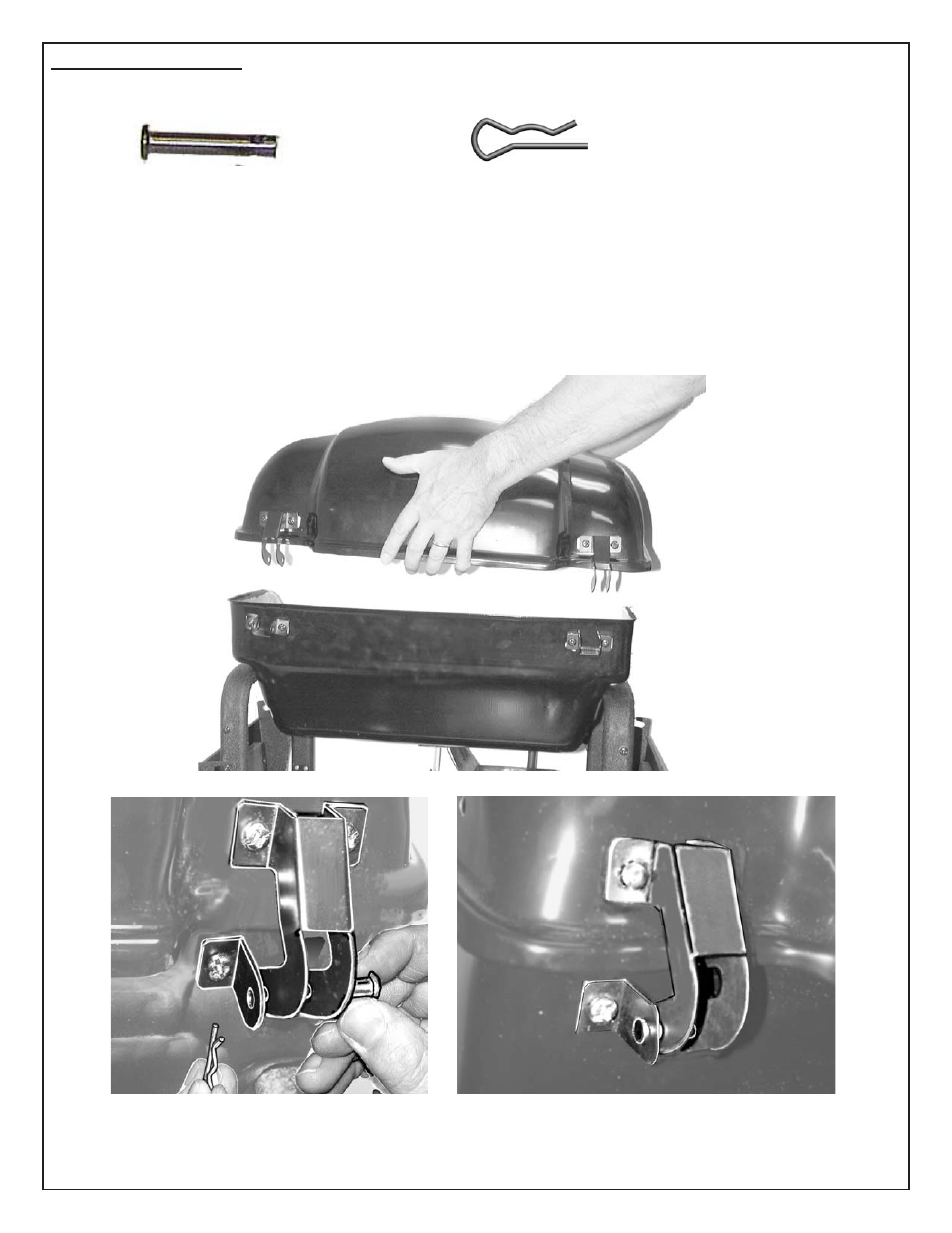

STEP 9 - Attach Hood
•Align Hood Hinge tabs with Bottom Hinge tabs and insert Hinge Pins from outside. Secure each
Hinge Pin with Cotter Pin as shown.
•Close Hood and check assembly to make sure that the hood and bowl fit properly together. Adjust
hood by loosening the Hinge Bolts and retightening.
Hinge Pin
2 pcs
Cotter Pin
2 pcs
