Meco BUSHMAN 7710S8.641 - Manual (Page 23)

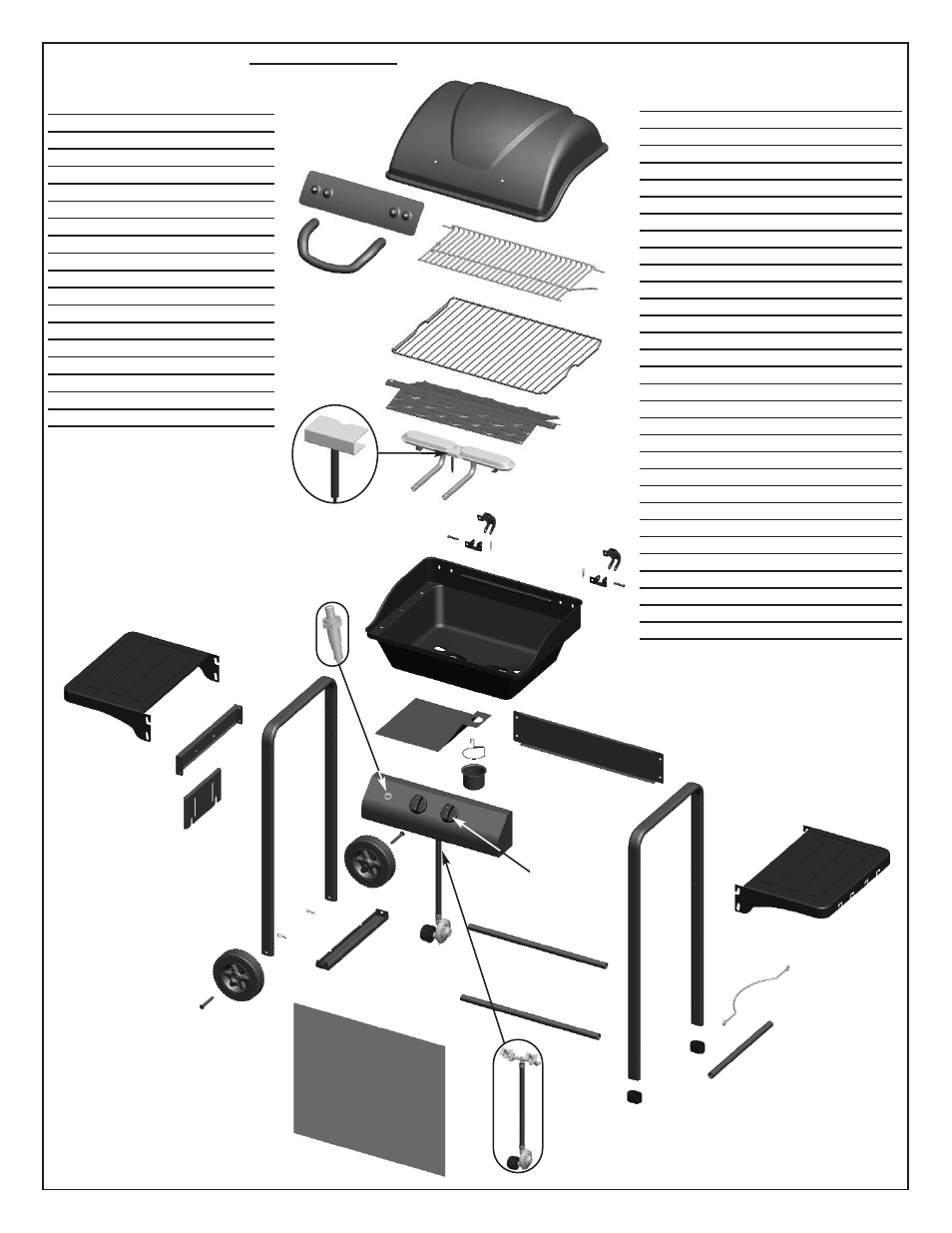

Parts Diagram
- Some small parts may not be depicted
.
23
9
10
12
11
14
17
15
13
16
23
24
27
28
29
31
25
22
21
26
18
20
30
19
Description Qty
Screw M6 x 15mm 12
Wing Bolt M6 x 10mm 2
Screw M6 x 50mm 10
Screw ST 4.0 x 15mm 2
Screw M6 x 35mm 4
Nut M6 30
Mounting Stud M6 2
Screw ST 4.0 x 10mm 8
Screw M6 x 45mm 12
Fiber Washer M6 14
Bowl Spacer M6 4
Screw M4 x 10mm 2
Wing Nut M4 2
Clevis Pin 6mm x 32mm 2
Cotter Pin 1.6mm x 28mm 4
Screwt M5 x 10mm
2
Table Spacer 8
Washer M6 8
HARDWARE LIST
Key Description Qty
1 Hood 1
2 Handle Shield 1
3 Hood Handle 1
4 Warming Rack 1
5 Cooking Grid 1
6 Flavor Activator 1
7 Main Burner 1
8 Electrode/Collector Assm 1
9 Hood Hinge Assm 2
10 Bowl 1
11 Cylinder Heat Shield 1
12 Rear Brace 1
13 Wheel Leg 1
14 Grease Cup & Hanger 1
15 Fixed Leg (with caps) 1
16 Side Table 2
17 Control Panel 1
18 Valve/Hose/Regulator Assm 1
19 Control Knob 2
20 Piezo Igniter 1
21 Cylinder Slide Bracket 1
22 Cylinder Slide Lock 1
23 Wheel 2
24 Axle Pin 2
25 Cotter Pin 2
26 Cylinder Support 1
27 Cart Brace 17 1/2” 2
28 Cylinder Block Wire 1
29 Cart Brace 13 7/16” 1
30 Leg Cap 2
31 Privacy Panel 1
PARTS LIST
1
3
4
5
6
7
2
8
