13

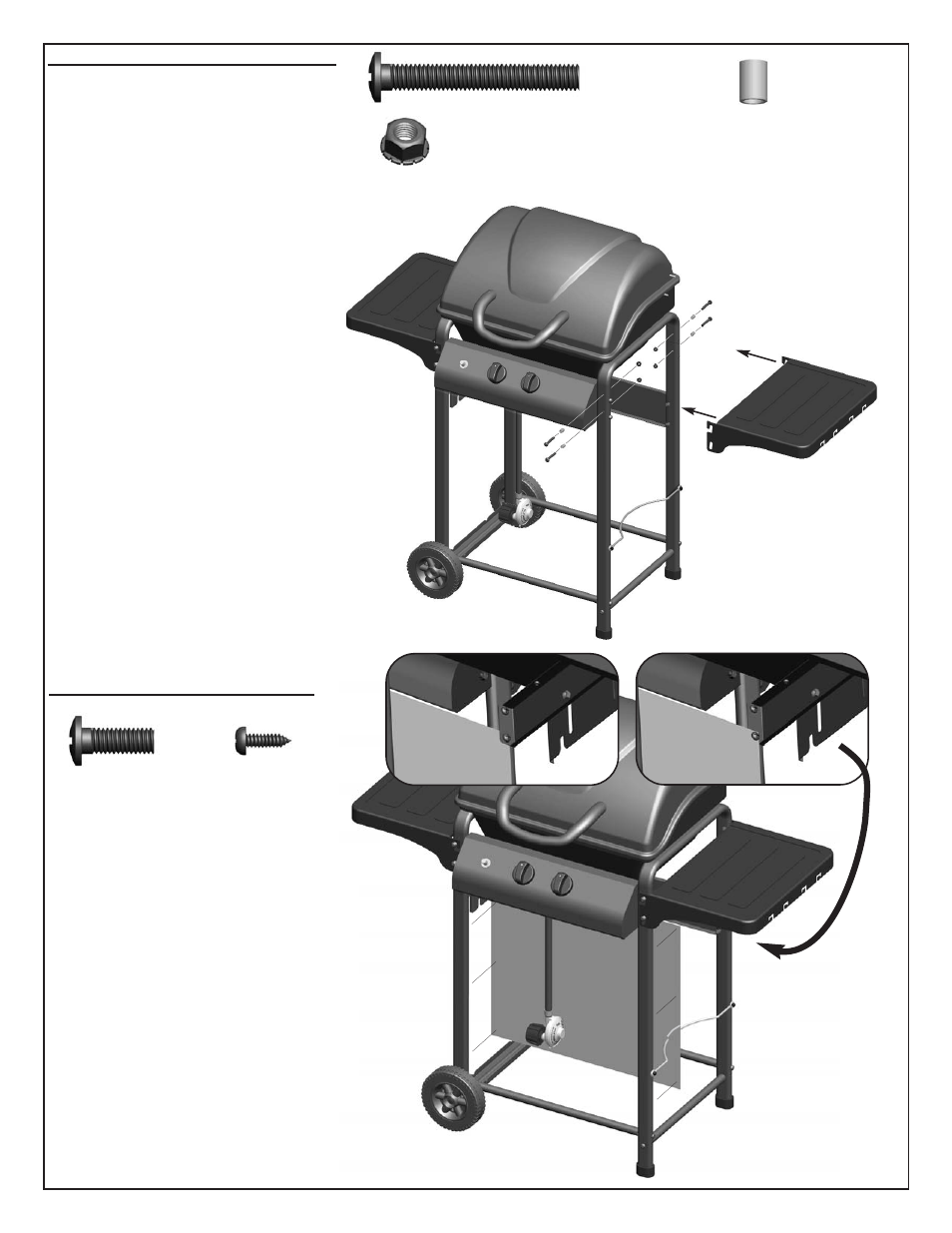

STEP 14 - Assemble Side Tables
Step 15 - Install Privacy Panel
•Slide 8 side table spacers onto 8
M6 x 45 mm screws.
•Insert M6 x 45mm screws and
side table spacers through bottom
holes of side table and through
leg. Secure with M6 nuts and
tighten.
•Insert M6 x 45mm screws and
side table spacers through top
holes of leg. Secure with M6 nut
and tighten.
•Repeat for other side table.
Note: The side table folds for
storage. Make sure side table is
secure when locked in the user
position.
To lower side table simply grasp
the front and rear of the side
table, lift upward and pull slightly
away from the grill. The table can
then be pivoted down until it con-
tacts the cart legs. Reverse the
process to begin using the side
table.
•Attach privacy panel to back side of
front legs using 1 M6 x 15mm screw
on the upper left (pre-installed in
Step 1 and also secures the Cylinder
Slide Bracket. See inset appropriate
to your privacy panel material.)
Secure the remainder of the privacy
panel using 5 ST 4.0 x 10mm screws
in the remaining holes.
Screw
M6 x 45mm
8 pcs Table
Spacer
8 pcs
Nut M6
8 pcs
Screw
M6 x 15
1 pc installed
in Step 1
Screw
ST 4.0 x 10mm
5 pcs
Fabric
Version Steel
Version
