To reduce the risk of a laceration hazard, wear protective gloves when handling parts that have sharp edges.

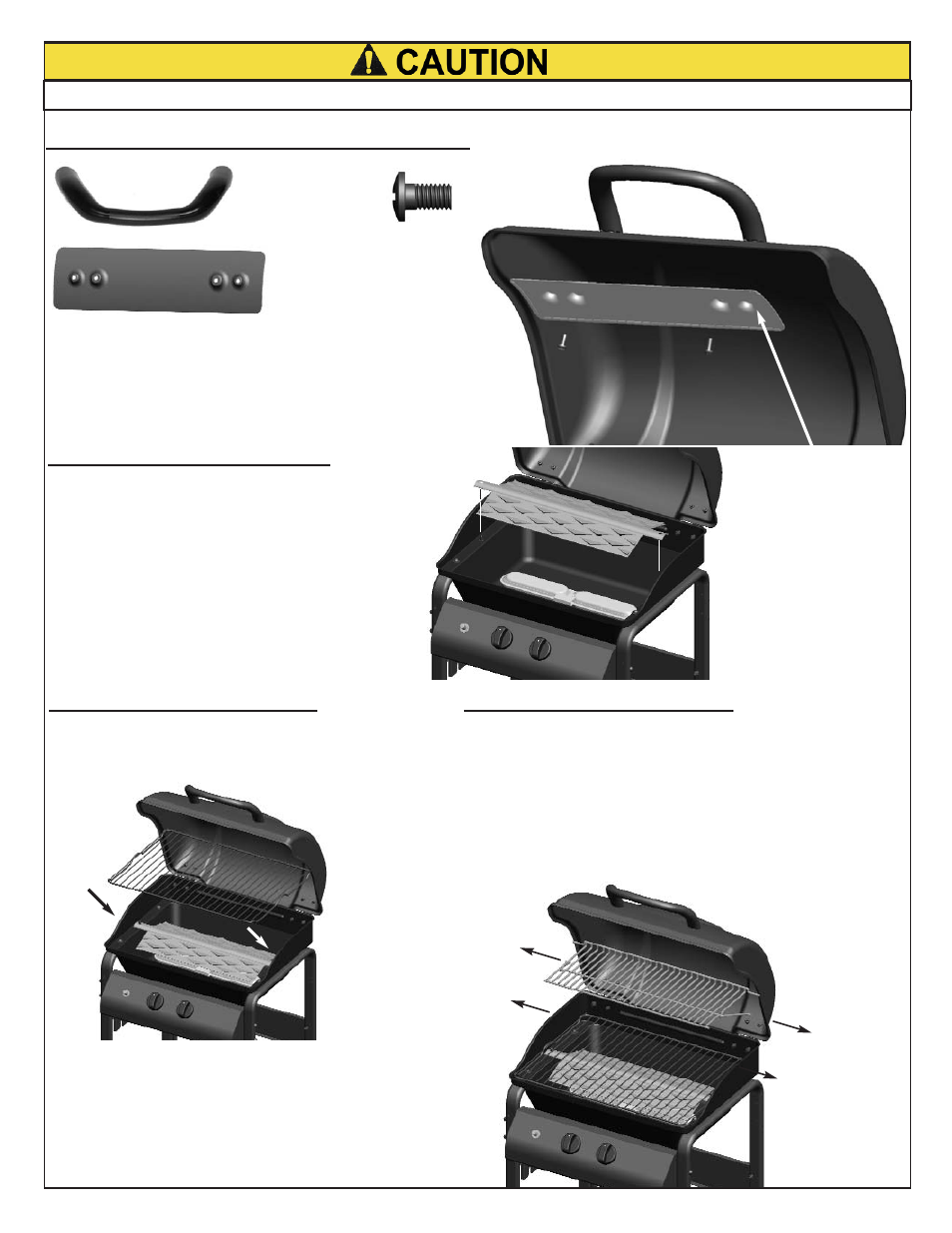

STEP 10 - Attach Hood Handle & Handle Shield
•Insert M5 x 10mm Bolt through Handle Shield,
then through inside of Hood into Hood Handle.
Repeat for other side of handle.
NOTE: DO NOT Overtighten mounting screws.
You could crack the porcelain grill coating.
Hood
Handle
1 pc
Bolt
M5 X 10
2 pcs
Hood
Shield
1Pc
Step 11 - Insert Flavor Activator
12
•Place Flavor Activator onto Flavor
Activator Mounting Studs.
STEP 12 - Insert Cooking Grid
•Place Cooking Grid onto ledge in bowl.
Step 13 - Insert Warming Rack
•Position warming rack as shown. Insert legs 1 and
2 in holes on right side of bowl and hood respectively.
While holding leg 3, insert leg 4 into hole on hood.
Carefully position leg 3 into hole in bowl and allow it
to spring outward into position.
2
4
3
1
Note: Place
protrusions
toward hood.
