Meco BUSHMAN 7710S8.641 User Manual
Page 10
10

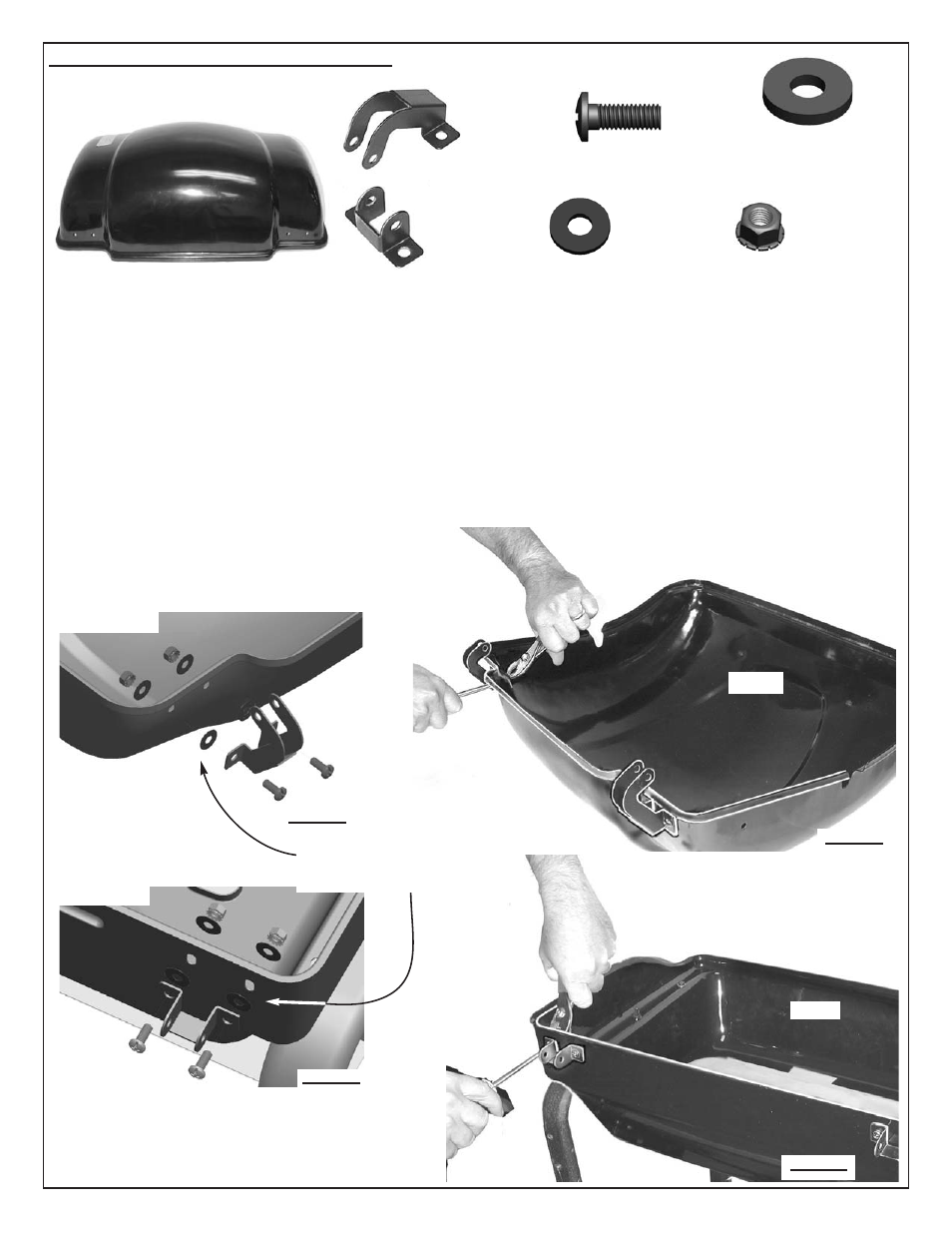

STEP - 8 Mounting Hood/ Bowl Hinges
•Insert M6 x 15mm Bolt through Hood Hinge and Fiber Washer and into hole in back side of Grill
Hood as shown. Install M6 Washer and secure with M6 Nut. (See Photos 1 & 2 below) Repeat for
remaining holes to secure two Hood Hinges.
•Insert M6 x 15mm Bolt through Bowl Hinge and Fiber Washer and into hole in back side of Grill
Bowl as shown. Install M6 Washer and secure with M6 Nut. (See Photos 3 & 4 below) Repeat for
remaining holes to secure two Bowl Hinges.
NOTE: DO NOT Overtighten mounting screws. You could crack the porcelain grill coating.
Hood
Bowl Hinge
2 pcs
Fiber Washer
8 pcs
Bolt
M6 X 15
8 pcs
Nut M6
8 pcs
Hood Hinge
2 pcs
Bowl
Hood
Photo 1
Photo 2
Photo 4
Washer
M6
8 pcs
Hood Hinge
Photo 3
Bowl Hinge
Fiber Washers go
between hinge and
Bowl or Hood
