Practical hints
Where will I find...?

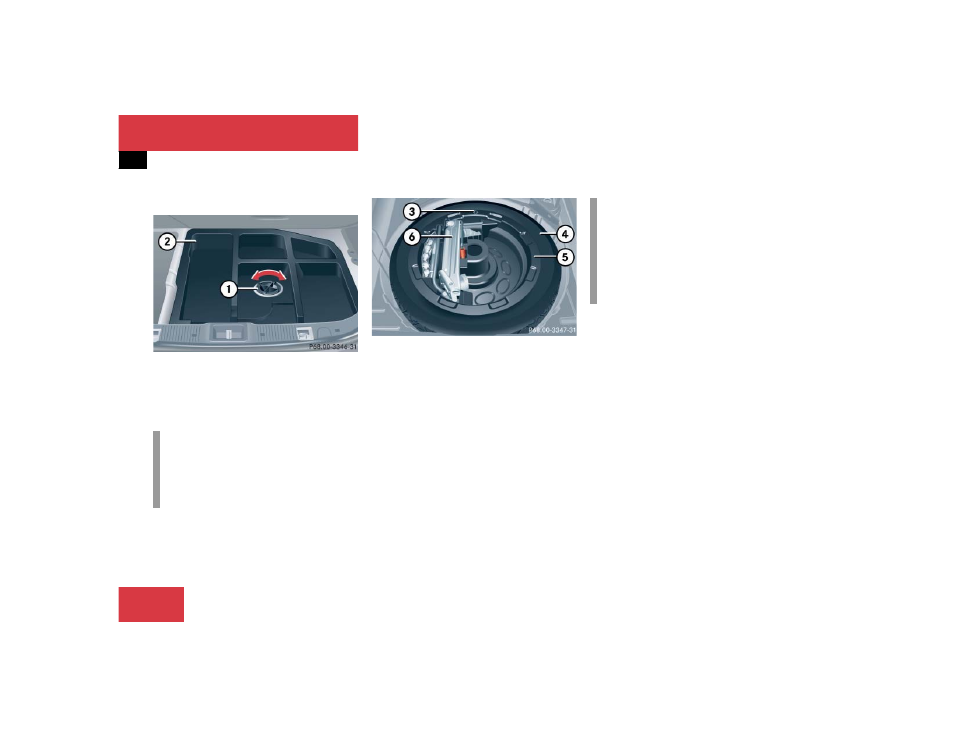

Removing the vehicle tool kit
1 Retaining screw
2 Storage well casing
̈ Lift trunk floor cover and engage trunk
floor handle in upper edge of trunk.
̈ Loosen retaining screw 1 in the mid-
dle of storage well casing 2.
̈ Remove storage well casing 2.
3 Arrow
4 Minispare wheel
5 Vehicle tool kit storage well casing
6 Vehicle tool kit
Wheel wrench
Vehicle jack
Wheel bolts for Minispare wheel
̈ Remove vehicle tool kit storage well
casing 5.
!
To prevent damage, always disengage
trunk floor handle from upper edge of
trunk and lower trunk floor before clos-
ing the trunk lid.
i
Arrow 3 on vehicle tool kit storage
well casing 5 must point in the direc-
tion of travel. Otherwise you cannot
place the storage well casing on top
and secure the Minispare wheel with
retaining screw 1 (
୴ page 344).
