12 Axiom Pro User Guide

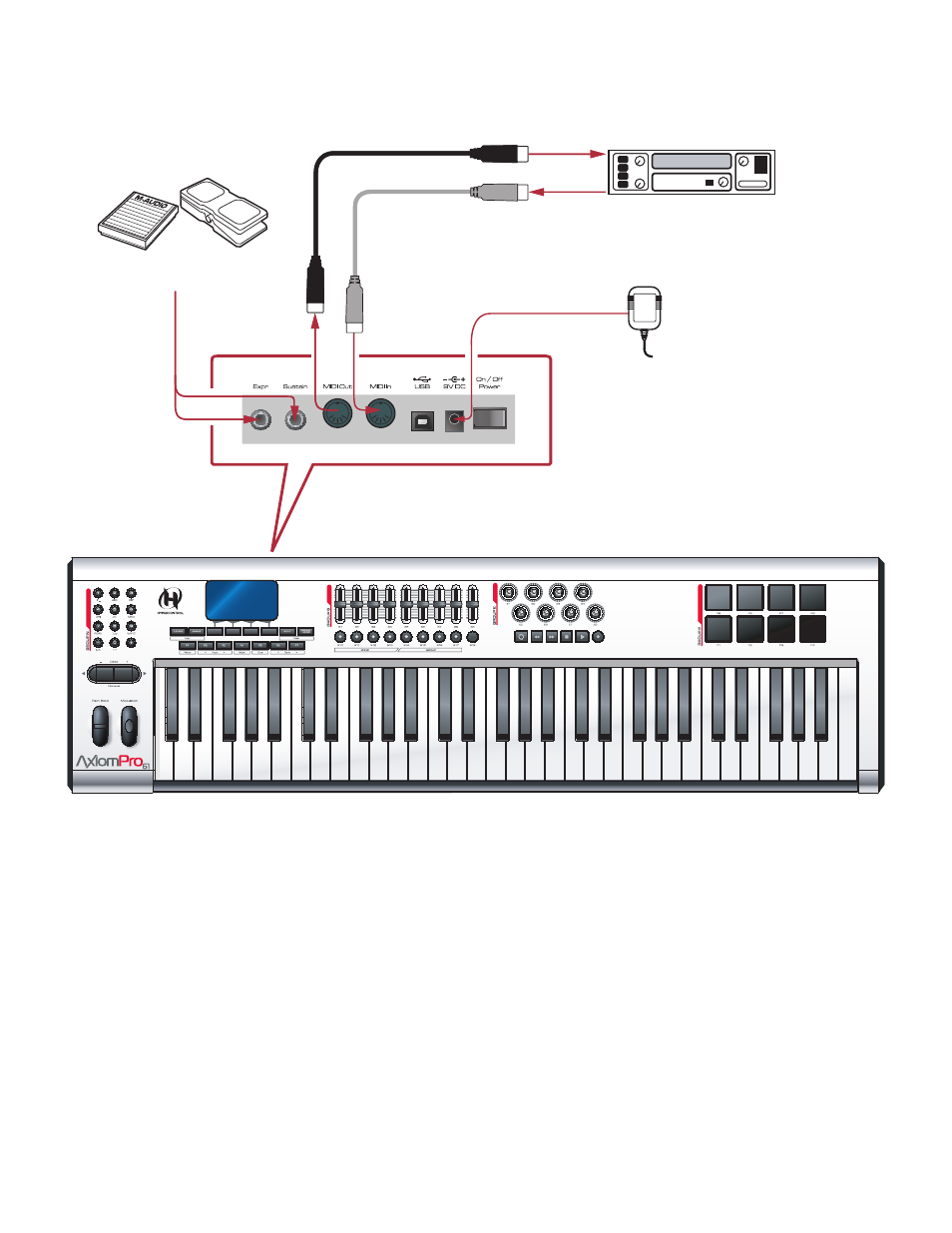

Standalone Mode:
Rear of Axiom Pro
Synthesizer,
Sound Module, etc.
sustain or
expression pedals
MIDI
MIDI
Axiom Pro
9V DC, 500mA
sustain or
expression pedals
MIDI
When using Axiom Pro without a computer:
• Connect a 9V DC, 500mA power supply to the Power Socket on the rear panel of the keyboard. This power supply is
optional and can be purchased from the M-Audio webstore (store m-audio com) Alternatively, a USB-type power supply
can be connected to the USB port instead of the standard 9V power supply
• If you own sustain or expression pedals, connect them to the “Sustain” and “Expr” inputs on the back of the keyboard.
• Connect the MIDI output port of your Axiom Pro to the MIDI Input port of your sound module, synthesizer, or other MIDI-
capable device
