11 Axiom Pro User Guide

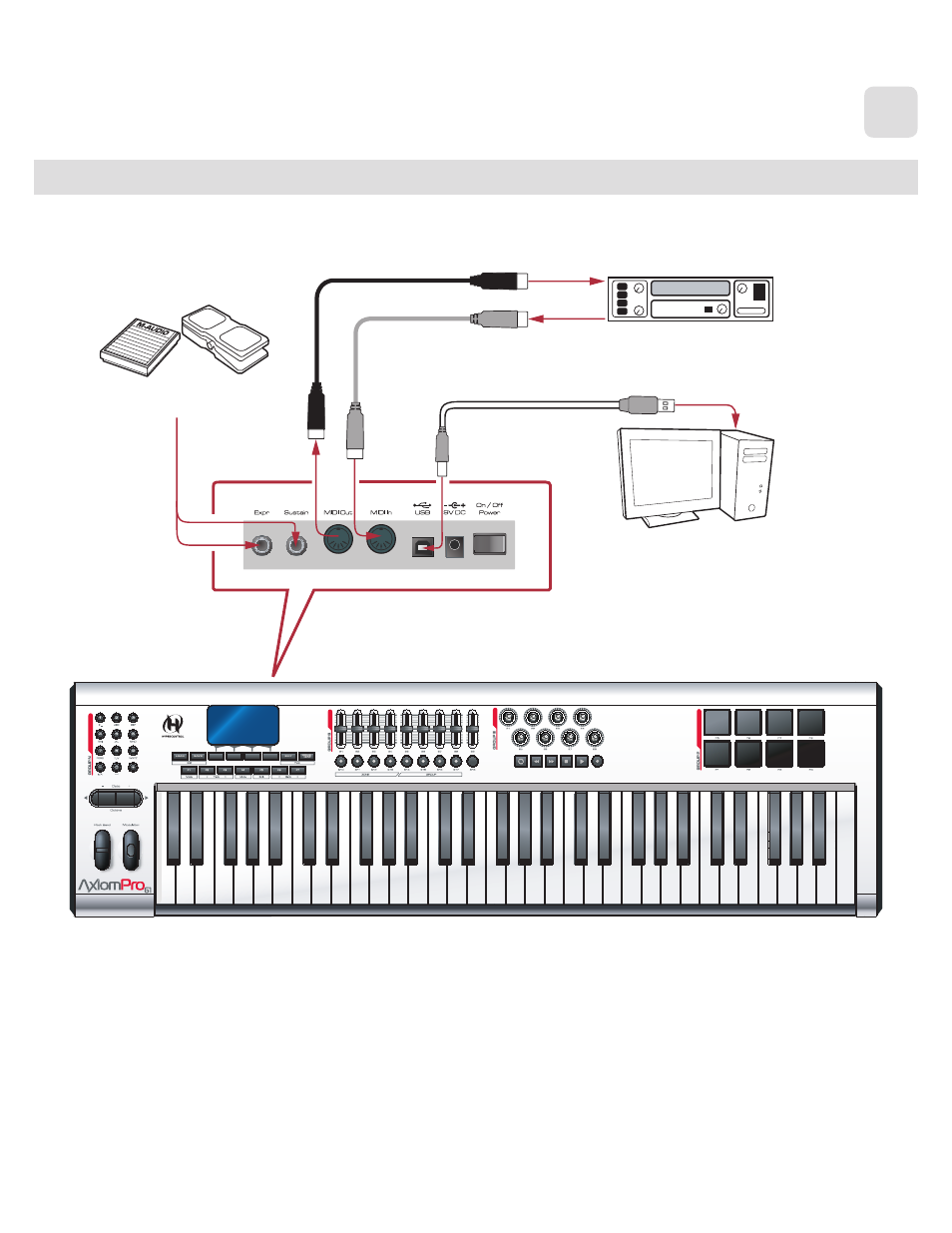

Connection Diagram
Hosted Mode:
Rear of Axiom Pro
Axiom Pro
Synthesizer,
Sound Module, etc.
sustain or
expression pedals
Computer
USB
MIDI
MIDI
When using Axiom Pro with a computer:
• Connect Axiom Pro to your computer using the supplied USB cable.
• If you own sustain or expression pedals, connect them to the “Sustain” and “Expr” inputs on the back of the keyboard.
• If you would like to connect Axiom Pro to an external MIDI-capable device (such as a synthesizer, sound module, etc.),
connect the MIDI output port to the external device’s MIDI input, while connecting the MIDI input port of Axiom Pro to the
external device’s MIDI output port
