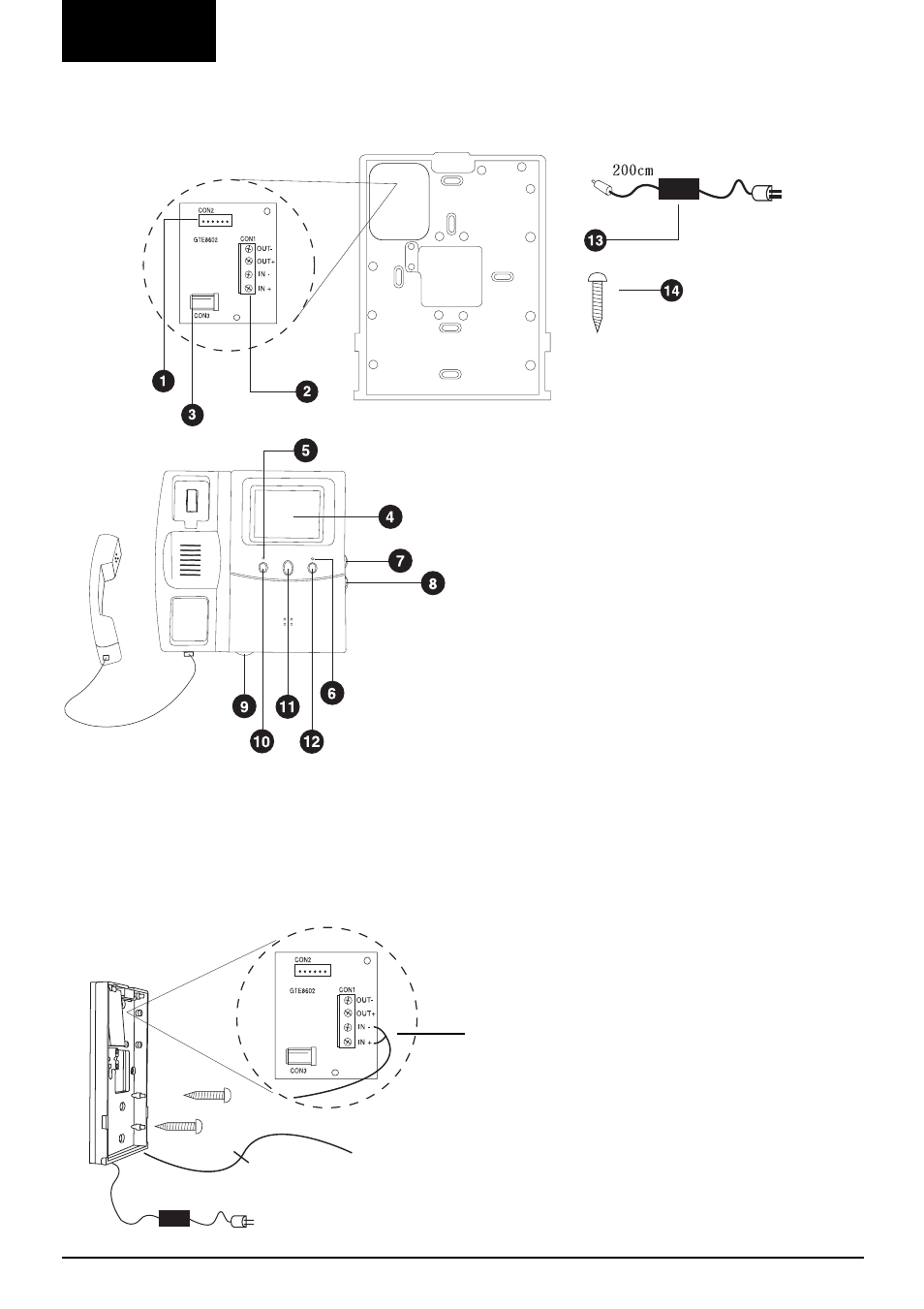

EX-228H SLAVE MONITOR, PARTS IDENTIFACATION

EX-228H INSTALLATION

1. Pin Socket for monitor connection cable
2. Terminals for connection to main unit and

next slave monitor

3. DC Power jack
4. Sony 4" Flat CRT
5. Power Indicator
6. On Line (Busy) indicator
7. Brightness Control
8. Contrast Control
9. Volume Control for Handfree mode
10. Broadcast and intercom button
11. Lock Release
12. Audio and Video Monitoring button
13. AC/DC Power adaptor
14. Mounting screws

2-wire connection

From previous monitor (Main unit or
Slave unit) or next monitor (Slave Unit).

ATTENTION: connect with right polarity
(Out+ to In+ and resp. Out- to IN-).
Standard wiring diagram: IN-/IN+ (Input) of
the next monitor to be connected with the
OUT-/OUT+ (Output) of the previous monitor.
