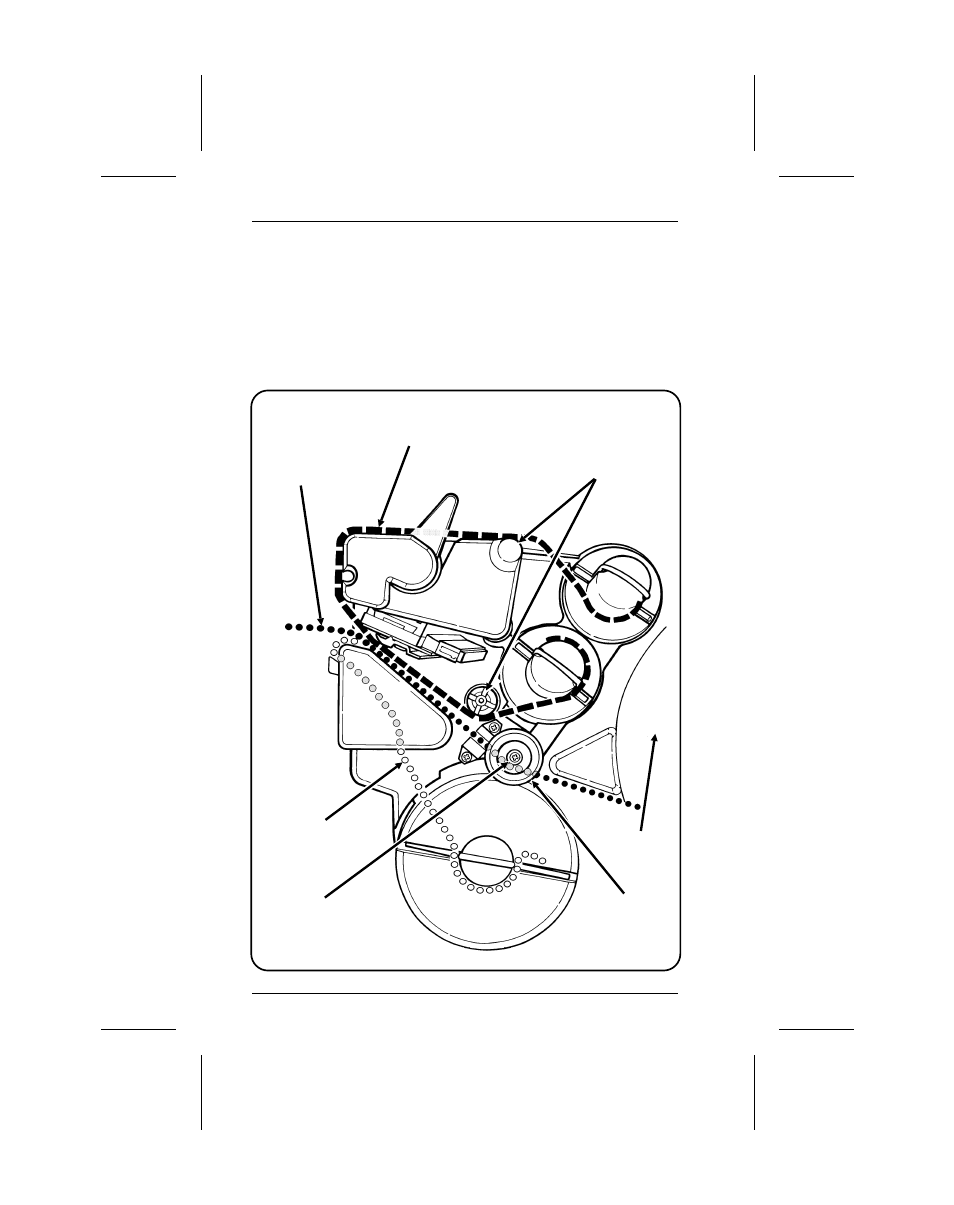

Supply Loading Diagram
The illustration below shows the correct routing for supplies,
ribbon, and backing paper.
NOTE: Guide the ribbon around the ribbon guide rollers
when loading.
Printed
Supply
Backing
Paper
Ribbon
Guide
Rollers Ribbon
Supply Guide
Roller Supply
Guide
Supply
Platter
Fr
on
t of
P
ri
n
te
r
