RAIDBank4 Owner’s Manual 38
5. System Controls
5.1 System Configuration Functions

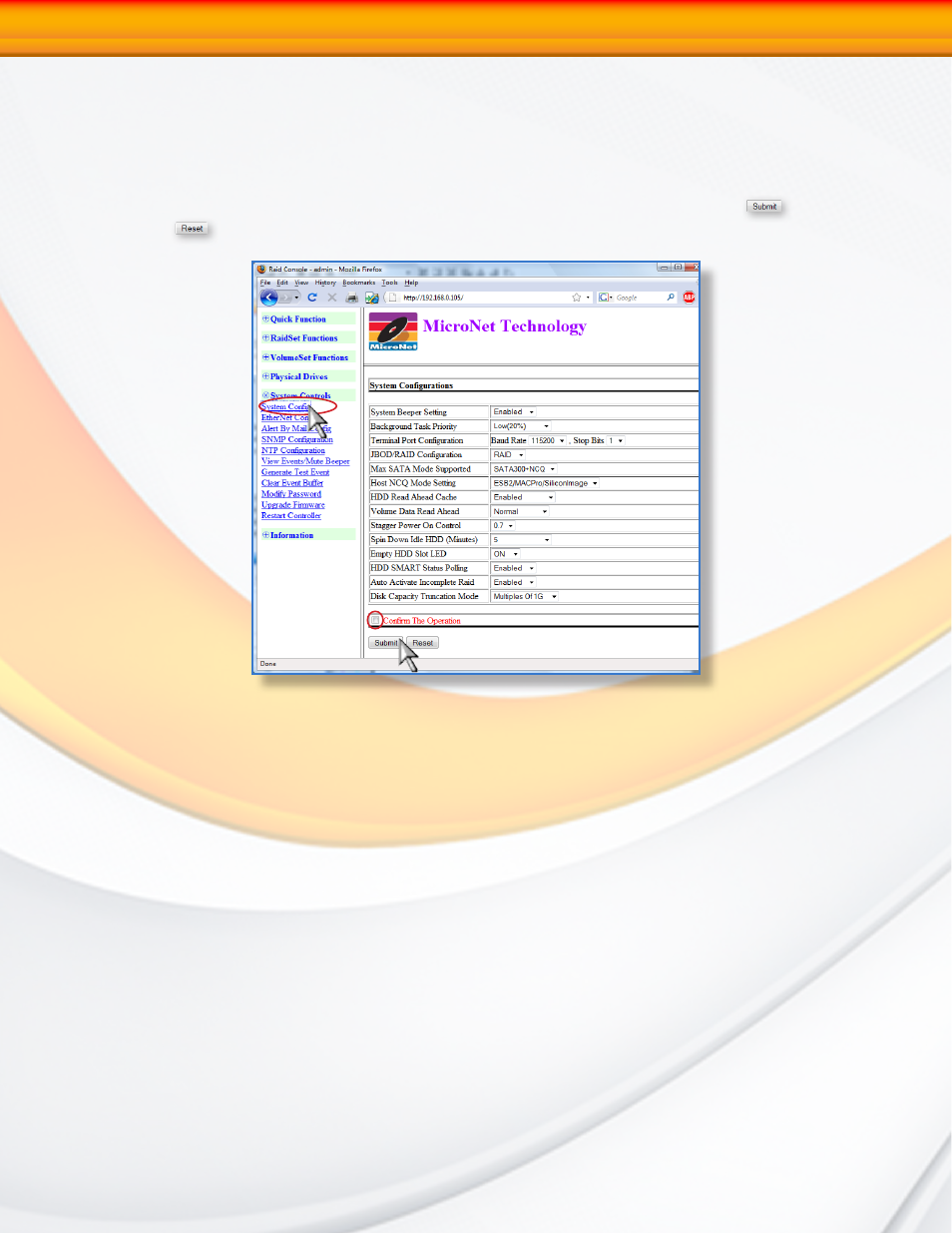

This menu contains various feature and environmental options of the RAIDBank4. The following
subsections discuss each attribute’s descriptions (bold denotes default value.) When all desired
options are entered, check the box labelled “Confirm the operation” and Click the
Button to
finalize or to revert all options to default.
5.1.1
5.1.2
5.1.3
5.1.4
5.1.5
5.1.6
5.1.7
5.1.8
5.1.9
5.1.10
5.1.11
5.1.12
5.1.13
5.1.14
5.1.1 System Beeper Setting (enabled/disabled)
This function enables or disables the RAIDBank4 alert buzzer. It is not recommended to turn the
buzzer off as it will not provide audible cues when faults occur.
5.1.2 Background Task Priority (ultralow, low, normal, high)
The Background Task Priority is a relative indication of how much time the controller devotes
to a background initialization or rebuild operations. The RAIDBank4 allows user to choose
the rebuild priority (ultralow, low, normal, high) to balance volume set access and rebuild
tasks appropriately. The lower the priority, the greater the responsiveness of the RAID to host
activity, but at a cost of longer background task completion.
5.1.3 Terminal Port Configuration
The RAIDBank4 has provisions for an RS232 host management connection. In order to use the
RS232, a special cable has to be used (not included)- consult your authorized Micronet reseller
for more information. The communications port configuration defaults are 115200 Baud.,
1 Stop bit operation. The baud rate (1200-115200) and stop bits (1,2) are user selectable.
Handshaking and parity are fixed at none
4-RAID Control-Web Interface
