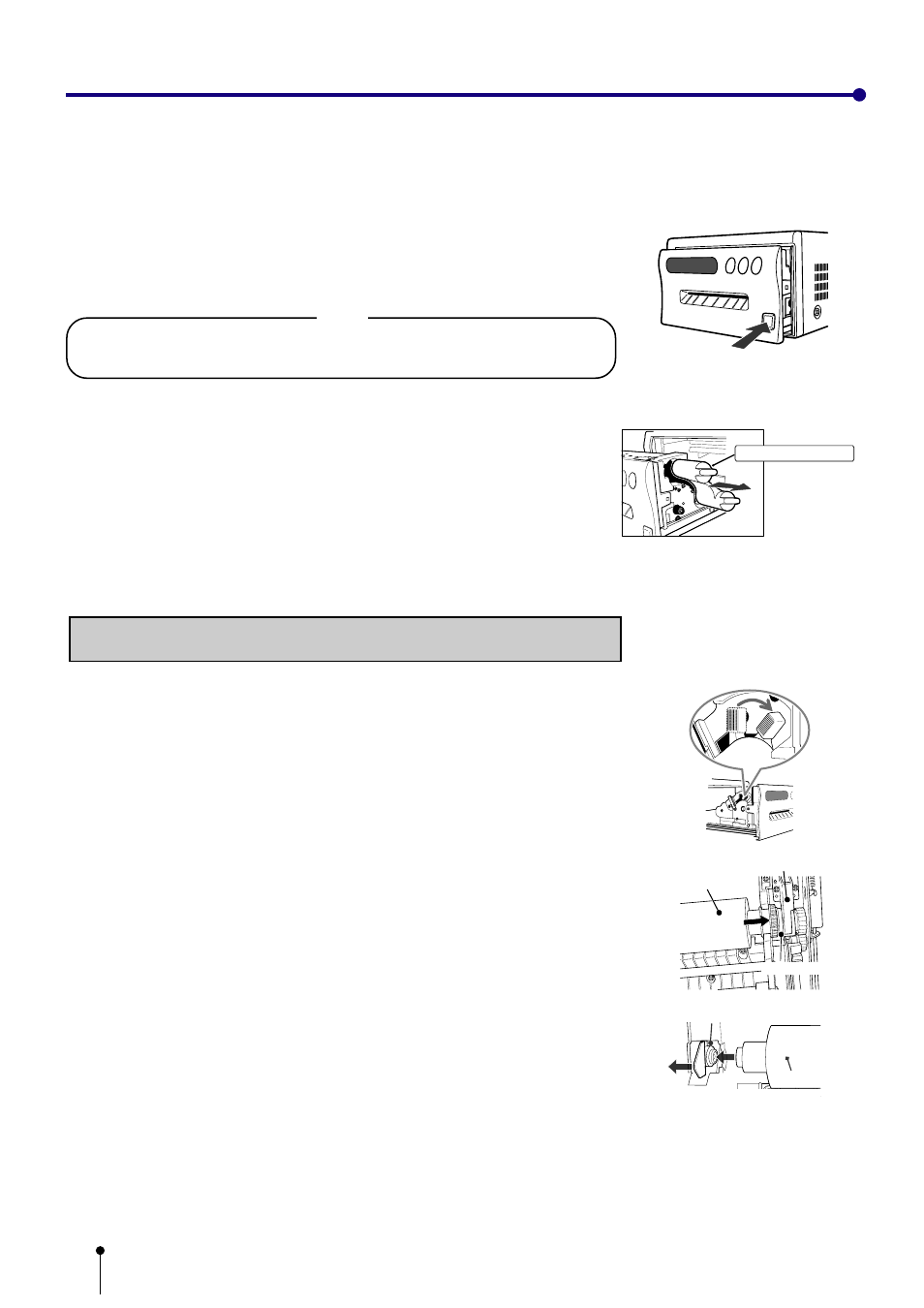

BEFORE OPERATION
2
2
2
2
2
Removing the protective cushion
Unplug the power cord from outlet for safety.
1
1
1
1
1
Press OPEN button.
The printing unit advances to the front.
NOTE
Do not touch the thermal head.
Fingerprints or dust on the thermal head will degrade the print quality.
2
2
2
2
2
Pull out the protective cushion from the right side.
Keep the removed cushion. It is required when transporting this unit.
Protective cushion
INSERTION OF PRINT PAPER
1
1
1
1
1
Move the knob on the printing unit to the direction indicated by the
arrow.
1
Print paper
Holder
Insert into ditch
2
2
2
2
2
Insert the print paper in the position as shown right.
·
Place the gear to the right side.
·
To set the left side, press the holder in the unit and insert the print paper roller.
Holder
Print paper
